210-112

Active

WAGO Corporation

DIN MOUNTING RAIL, SLOTTED CARRIER RAIL, TERMINAL BLOCKS, 2 M, 7.5 MM, 35 MM, STEEL

Search across all available documentation for this part.

Active

WAGO Corporation

DIN MOUNTING RAIL, SLOTTED CARRIER RAIL, TERMINAL BLOCKS, 2 M, 7.5 MM, 35 MM, STEEL

Technical Specifications

Parameters and characteristics for this part

Part	Stripping Length [Min]	Stripping Length [Max]	Color	Termination Style	Current - UL	Wire Gauge or Range - AWG [Min]	Wire Gauge or Range - AWG [Max]	Material - Insulation	Type	Wire Gauge or Range - mm² [Min]	Wire Gauge or Range - mm² [Max]	Voltage - IEC	Number of Positions	Current - IEC	Terminal - Width [y]	Voltage - UL	Number of Levels	Thickness	Thickness	Size [y]	Size [x]	Slotted/Unslotted	Length	Length	Tool Type	Tip Type	Size [y]	Size [x]	Arrangement	Application Specifics	Color - Background	Applications	Color - Legend	Language	Print Type	Shape	Size [z]	Size [z]
WAGO Corporation 2102-5201	10 mm	12 mm	Gray	IDC Push In Spring	20 A	12 AWG	18 AWG	Polyamide (PA66) Nylon 6/6	Feed Through	0.75 mm²	4 mm²	800 V	2	32 A	5.2 mm	600 V	1
WAGO Corporation 210-111									Top Hat									0.039 in	1 mm	0.217 " 5.5 mm	0.591 " 15 mm	Slotted	2 m	78.74 "
WAGO Corporation 210-721																									Screwdriver	Slotted	0.8 mm	5.5 mm
WAGO Corporation 210-804																													Text Only	Notice	Silver	Industrial Applications	Black	English	Pre-Printed Printable (Thermal Transfer)	Rectangle
WAGO Corporation 210-720																									Screwdriver	Slotted	0.5 mm	3.5 mm
WAGO Corporation 210-658																									Screwdriver	Slotted	0.5 mm	3.5 mm
WAGO Corporation 210-112									Top Hat									0.039 in	1 mm	7.5 mm	35 mm	Slotted	2 m	78.74 "			0.295 in	1.378 "
WAGO Corporation 210-197									Top Hat									0.059 in	1.5 mm	35 mm		Slotted	2 m	78.74 "			1.378 in										15 mm	0.591 "
WAGO Corporation 210-657																									Screwdriver	Slotted	0.5 mm	3.5 mm
WAGO Corporation 210-722																									Screwdriver	Slotted	0.4 mm 0.5 mm 0.8 mm	2.5 mm 3.5 mm 5.5 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

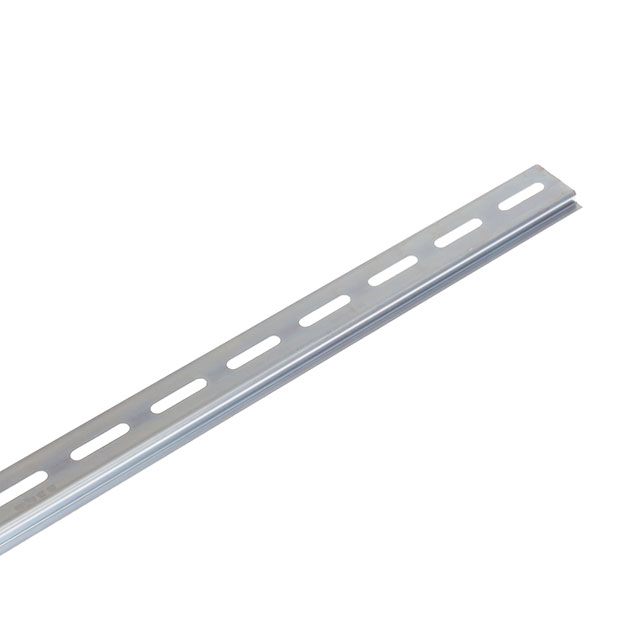

The 210-112/VE00-500/PW25-000 is a 35mm steel DIN Carrier Rail. It is suitable for terminal blocks.
