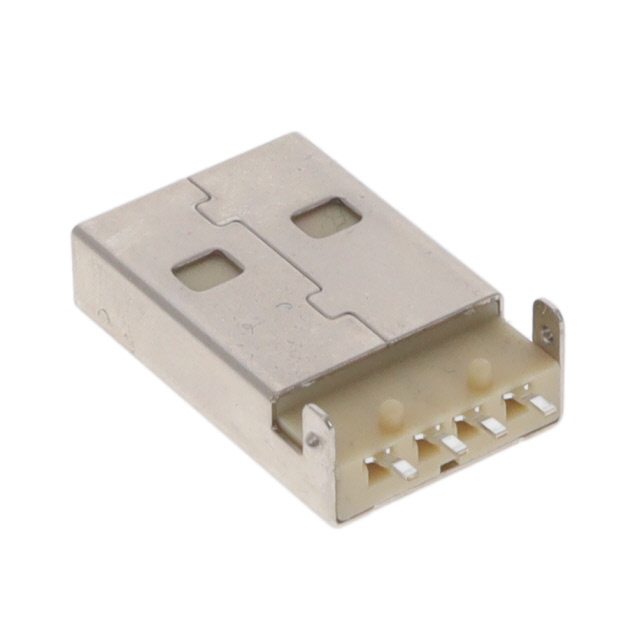

1002-016-01101-TR

Active

CnC Tech, LLC

USB 2.0, 4P, A/M, ULTRA FLAT, 30

Search across all available documentation for this part.

Active

CnC Tech, LLC

USB 2.0, 4P, A/M, ULTRA FLAT, 30

Technical Specifications

Parameters and characteristics for this part

Specification	1002-016-01101-TR

Connector Type	USB-A (USB TYPE-A)
Contact Finish	Gold
Current Rating (Amps)	1.5 A
Gender	Plug
Insulation Color	White
Material Flammability Rating	UL94 V-0
Mounting Feature	Horizontal
Mounting Type	Through Hole, Surface Mount, Right Angle
Number of Contacts [custom]	4
Number of Ports	1
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Shell/Shielding Material	Brass
Shielding	Unshielded
Specifications	USB 2.0
Termination	Solder
Voltage - Rated	30 VAC

USB 2.0, 4P, A/M, ULTRA FLAT, 30

Part	Material Flammability Rating	Number of Contacts [custom]	Mounting Type	Number of Ports	Termination	Voltage - Rated	Specifications	Operating Temperature [Min]	Operating Temperature [Max]	Shielding	Gender	Current Rating (Amps)	Contact Finish	Connector Type	Shell/Shielding Material	Insulation Color	Mounting Feature
CnC Tech, LLC 1002-016-01101-TR	UL94 V-0	4	Surface Mount, Right Angle, Through Hole	1	Solder	30 VAC	USB 2.0	-40 °C	105 ░C	Unshielded	Plug	1.5 A	Gold	USB-A (USB TYPE-A)	Brass	White	Horizontal

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

USB-A (USB TYPE-A) USB 2.0 Plug Connector 4 Position Surface Mount, Right Angle; Through Hole
