100R12-76B

Active

Parlex USA LLC

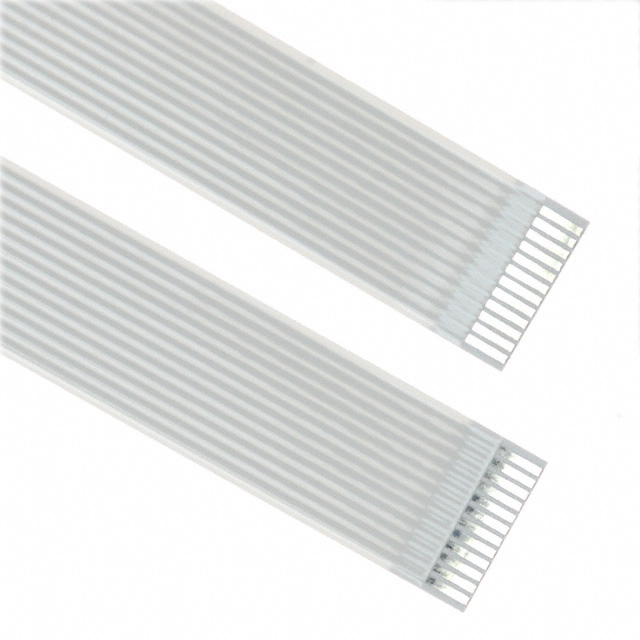

CABLE FFC/FPC 12POS 1MM 3"

Search across all available documentation for this part.

Active

Parlex USA LLC

CABLE FFC/FPC 12POS 1MM 3"

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	100R12-76B	100R12 Series

Cable Type	FPC, FFC	FPC, FFC
Length	3 in	3 - 18 in
Length	76.2 mm	76.2 - 457.2 mm
Length	-	5.984 - 12 in
Length	-	152 - 203 mm
Length - Exposed Ends [x]	0.14 in	0.14 in
Length - Exposed Ends [x]	3.56 mm	3.56 mm
Number of Conductors	12	12
Pitch [x]	0.039 in	0.039 in
Pitch [x]	1 mm	1 mm
Termination Style	Backers on Both Sides, Top on Both Sides	Backers on Both Sides, Top on Both Sides

CABLE FFC/FPC 12POS 1MM 5"

Part	Termination Style	Number of Conductors	Cable Type	Pitch [x]	Pitch [x]	Length	Length	Length - Exposed Ends [x]	Length - Exposed Ends [x]	Length [x]	Length [x]
Parlex USA LLC 100R12-127B	Backers on Both Sides, Top on Both Sides	12	FFC, FPC	0.039 in	1 mm	5 in	127 mm	0.14 in	3.56 mm
Parlex USA LLC 100R12-305B	Backers on Both Sides, Top on Both Sides	12	FFC, FPC	0.039 in	1 mm		304.8 mm	0.14 in	3.56 mm	12 in
Parlex USA LLC 100R12-254B	Backers on Both Sides, Top on Both Sides	12	FFC, FPC	0.039 in	1 mm		254 mm	0.14 in	3.56 mm	10 in
Parlex USA LLC 100R12-457B	Backers on Both Sides, Top on Both Sides	12	FFC, FPC	0.039 in	1 mm	18 "	457.2 mm	0.14 in	3.56 mm
Parlex USA LLC 100R12-76B	Backers on Both Sides, Top on Both Sides	12	FFC, FPC	0.039 in	1 mm	3 in	76.2 mm	0.14 in	3.56 mm
Parlex USA LLC 100R12-102B	Backers on Both Sides, Top on Both Sides	12	FFC, FPC	0.039 in	1 mm	4 in	101.6 mm	0.14 in	3.56 mm
Parlex USA LLC 100R12-152B	Backers on Both Sides, Top on Both Sides	12	FFC, FPC	0.039 in	1 mm			0.14 in	3.56 mm	5.984 in	152 mm
Parlex USA LLC 100R12-203B	Backers on Both Sides, Top on Both Sides	12	FFC, FPC	0.039 in	1 mm			0.14 in	3.56 mm	7.992 in	203 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

12 Position FFC, FPC Cable 0.039" (1.00mm) 3.000" (76.20mm)
