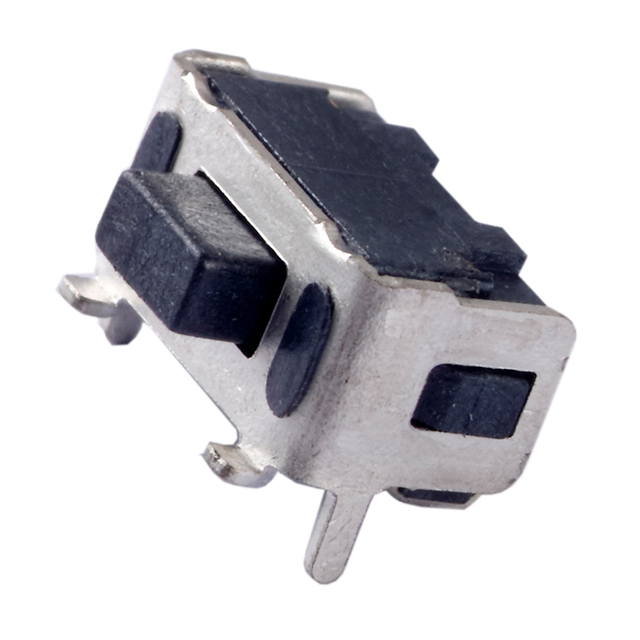

225AJ1SAARG

Active

CTS Electrocomponents

SWITCH TACTILE SPST-NO 0.05A 12V

Search across all available documentation for this part.

Active

CTS Electrocomponents

SWITCH TACTILE SPST-NO 0.05A 12V

Technical Specifications

Parameters and characteristics for this part

SWITCH TACTILE SPST-NO 0.05A 12V

Part	Termination Style	Mounting Type	Switch Travel	Illumination	Actuator Type	Switch Function	Contact Rating @ Voltage	Features	Operating Temperature [Max]	Operating Temperature [Min]	Actuator Orientation	Circuit	Operating Force	Outline [y]	Outline [x]
CTS Electrocomponents 225AJ1SAARG	J Lead	Surface Mount, Right Angle	0.25 mm	Non-Illuminated	Rectangular Button	Off-Mom	0.05 A, 12 VDC	Grounding Pin	85 °C	-40 °C	Side Actuated	SPST-NO	180 gf	4.7 mm	7.3 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tape & Reel (TR)	10000	$ 0.24

General part information

Tactile Switch SPST-NO Side Actuated Surface Mount, Right Angle
