AWG28-34/G/300

Unknown

Assmann WSW Components

CBL RIBN 34COND 0.05 GRAY 10'

Search across all available documentation for this part.

Unknown

Assmann WSW Components

CBL RIBN 34COND 0.05 GRAY 10'

Technical Specifications

Parameters and characteristics for this part

Part	Shielding	Jacket (Insulation) Material	First Conductor Mark	Number of Conductors	Ratings	Length	Length	Ribbon Thickness	Ribbon Thickness	Wire Gauge	Pitch [x]	Pitch [x]	Jacket Color	Insulation Resistance	Operating Temperature [Max]	Operating Temperature [Min]	Conductor Strand [custom]	Conductor Strand [custom]	Ribbon Width [y]	Ribbon Width [y]	Conductor Material	Voltage	Cable Type	Length [x]	Length [x]	Length	Operating Temperature	Spool Size	Spool Size
Assmann WSW Components AWG28-34/G-1/300	Unshielded	Poly-Vinyl Chloride (PVC)	Red	34	UL Style 2651	15.24 m 91.44 m	50 ft 300 ft	0.89 mm	0.035 in	28 AWG	0.039 in	1 mm	Gray	100 MOhms	105 ░C	-10 °C	7	36 AWG	1.339 "	34 mm	Copper Tinned	300 V	Flat Cable
Assmann WSW Components AWG28-34/G/300	Unshielded	Poly-Vinyl Chloride (PVC)	Red	34	UL Style 2651	7.62 m	25 ft	0.89 mm	0.035 in	28 AWG	0.05 in	1.27 mm	Gray	100 MOhms	105 ░C	-10 °C	7	36 AWG	1.7 in	43.18 mm	Copper Tinned	300 V	Flat Cable	3.05 m	10 ft
Assmann WSW Components AWG28-34/F/300	Unshielded	Poly-Vinyl Chloride (PVC)	Red	34	UL Style 2651	15.24 m	50 ft	0.89 mm	0.035 in	28 AWG	0.05 in	1.27 mm	Multiple	100 MOhms			7	36 AWG	1.7 in	43.18 mm	Copper Tinned	300 V	Flat Cable			Enter Number of Feet in Order Quantity	105 C	300 ft	91.44 m

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

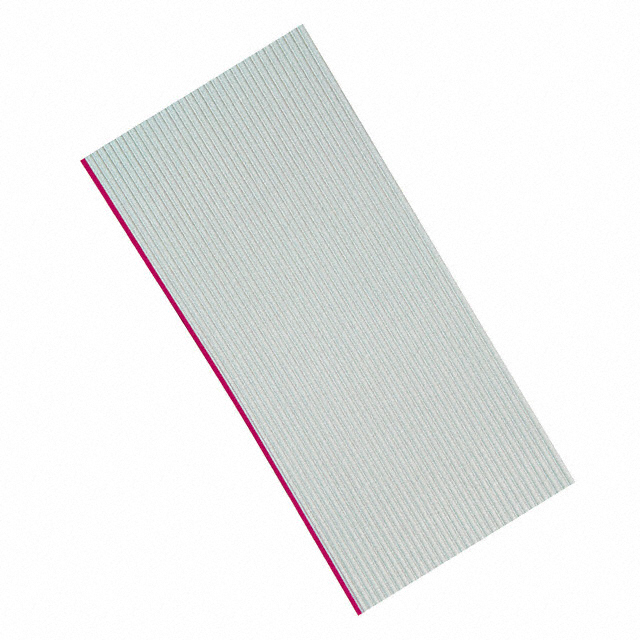

Flat Ribbon Cable Gray 34 Conductors 0.050" (1.27mm) Flat Cable 10.0' (3.05m)
