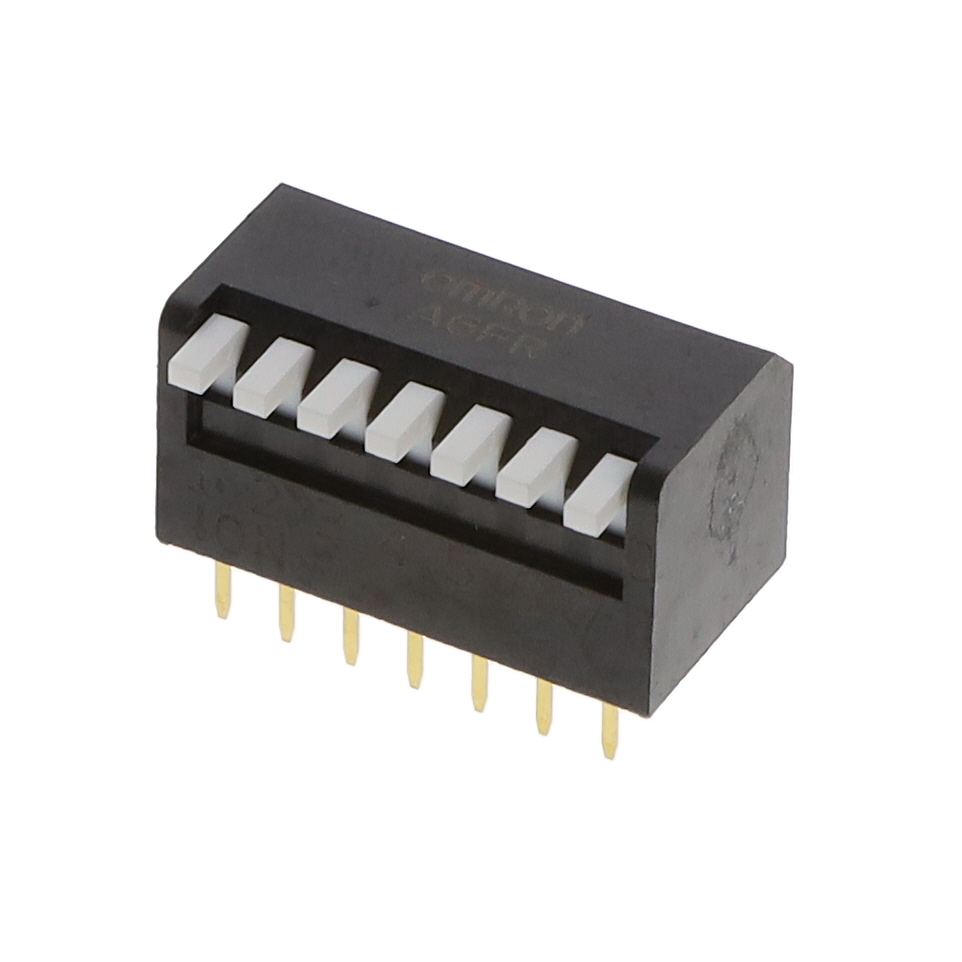

A6FR-7104

Active

Omron Electronics Inc-EMC Div

SWITCH PIANO DIP SPST 0.025A 24V

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

A6FR-7104

Active

Omron Electronics Inc-EMC Div

SWITCH PIANO DIP SPST 0.025A 24V

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	A6FR-7104	A6FR Series

Actuator Level	Raised	Flush, Recessed, Raised
Actuator Type	Piano	Piano
Circuit	SPST	SPST
Current Rating (Amps)	25 mA	25 mA
Electrical Life	1000 Cycles	1000 Cycles
Height Above Board	10.2 mm	10.2 mm
Height Above Board	0.402 in	0.402 in
Length	19.33 mm	6.63 - 26.95 mm
Length	-	0.361 "
Length	-	0.261 - 1.061 "
Length [x]	0.761 "	0.761 "
Mechanical Life	1000 Cycles	1000 Cycles
Mounting Type	Through Hole, Right Angle	Through Hole, Right Angle
Number of Positions	7	2 - 10
Operating Temperature [Max]	70 °C	70 °C
Operating Temperature [Min]	-20 C	-20 C
Pitch	Full	Full
Pitch [x]	0.1 in	0.1 in
Pitch [x]	2.54 mm	2.54 mm
Termination Style	PC Pin	PC Pin
Voltage Rating	24 VDC	24 VDC
Washable	False	False

A6FR Series

SWITCH PIANO DIP SPST 0.025A 24V

Part	Termination Style	Pitch [x]	Pitch	Pitch [x]	Operating Temperature [Min]	Operating Temperature [Max]	Current Rating (Amps)	Mechanical Life	Length	Length	Voltage Rating	Circuit	Electrical Life	Height Above Board	Height Above Board	Actuator Level	Mounting Type	Actuator Type	Number of Positions	Length
Omron Electronics Inc-EMC Div A6FR-3101	PC Pin	0.1 in	Full	2.54 mm	-20 C	70 °C	25 mA	1000 Cycles	9.17 mm	0.361 "	24 VDC	SPST	1000 Cycles	10.2 mm	0.402 in	Flush, Recessed	Through Hole, Right Angle	Piano
Omron Electronics Inc-EMC Div A6FR-6104	PC Pin	0.1 in	Full	2.54 mm	-20 C	70 °C	25 mA	1000 Cycles	16.8 mm		24 VDC	SPST	1000 Cycles	10.2 mm	0.402 in	Raised	Through Hole, Right Angle	Piano	6	0.661 "
Omron Electronics Inc-EMC Div A6FR-3104	PC Pin	0.1 in	Full	2.54 mm	-20 C	70 °C	25 mA	1000 Cycles	9.17 mm	0.361 "	24 VDC	SPST	1000 Cycles	10.2 mm	0.402 in	Raised	Through Hole, Right Angle	Piano
Omron Electronics Inc-EMC Div A6FR-8104	PC Pin	0.1 in	Full	2.54 mm	-20 C	70 °C	25 mA	1000 Cycles	21.87 mm		24 VDC	SPST	1000 Cycles	10.2 mm	0.402 in	Raised	Through Hole, Right Angle	Piano	8	0.861 "
Omron Electronics Inc-EMC Div A6FR-8101	PC Pin	0.1 in	Full	2.54 mm	-20 C	70 °C	25 mA	1000 Cycles	21.87 mm		24 VDC	SPST	1000 Cycles	10.2 mm	0.402 in	Flush, Recessed	Through Hole, Right Angle	Piano	8	0.861 "
Omron Electronics Inc-EMC Div A6FR-9101	PC Pin	0.1 in	Full	2.54 mm	-20 C	70 °C	25 mA	1000 Cycles	24.41 mm		24 VDC	SPST	1000 Cycles	10.2 mm	0.402 in	Flush, Recessed	Through Hole, Right Angle	Piano	9	0.961 in
Omron Electronics Inc-EMC Div A6FR-9104	PC Pin	0.1 in	Full	2.54 mm	-20 C	70 °C	25 mA	1000 Cycles	24.41 mm		24 VDC	SPST	1000 Cycles	10.2 mm	0.402 in	Raised	Through Hole, Right Angle	Piano	9	0.961 in
Omron Electronics Inc-EMC Div A6FR-0104	PC Pin	0.1 in	Full	2.54 mm	-20 C	70 °C	25 mA	1000 Cycles	26.95 mm		24 VDC	SPST	1000 Cycles	10.2 mm	0.402 in	Raised	Through Hole, Right Angle	Piano	10	1.061 in
Omron Electronics Inc-EMC Div A6FR-0101	PC Pin	0.1 in	Full	2.54 mm	-20 C	70 °C	25 mA	1000 Cycles	26.95 mm		24 VDC	SPST	1000 Cycles	10.2 mm	0.402 in	Flush, Recessed	Through Hole, Right Angle	Piano	10	1.061 in
Omron Electronics Inc-EMC Div A6FR-4101	PC Pin	0.1 in	Full	2.54 mm	-20 C	70 °C	25 mA	1000 Cycles	11.71 mm		24 VDC	SPST	1000 Cycles	10.2 mm	0.402 in	Flush, Recessed	Through Hole, Right Angle	Piano	4	0.461 in

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	1	$ 1.71
		24	$ 1.67
		48	$ 1.51
		120	$ 1.32
		264	$ 1.19
		504	$ 1.11
		1008	$ 1.03
		2520	$ 0.93
		5016	$ 0.86

Description

General part information

A6FR Series

Dip Switch SPST 7 Position Through Hole, Right Angle Piano Actuator 25mA 24VDC
