A6FR-8104

Active

Omron Electronics Inc-EMC Div

SWITCH PIANO DIP SPST 0.025A 24V

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

A6FR-8104

Active

Omron Electronics Inc-EMC Div

SWITCH PIANO DIP SPST 0.025A 24V

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	1	$ 1.68
		21	$ 1.61
		42	$ 1.51
		105	$ 1.31
		252	$ 1.19
		504	$ 1.11
		1008	$ 1.03
		2520	$ 0.93
		5019	$ 0.87

Description

General part information

A6FR Series

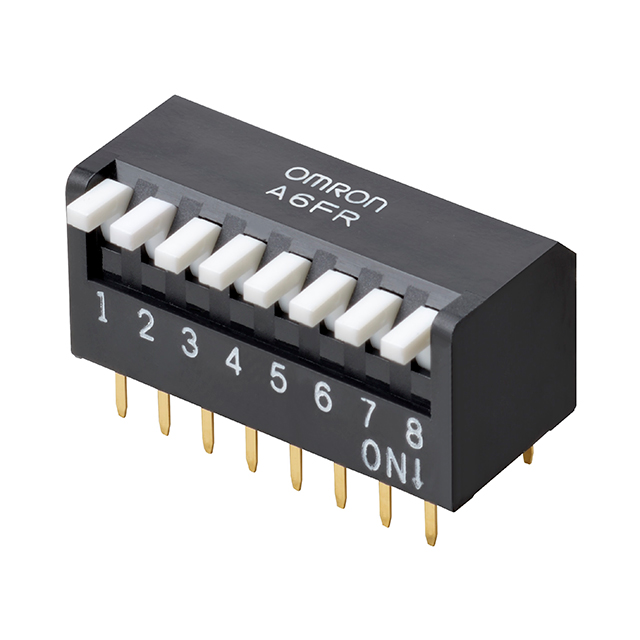

Dip Switch SPST 8 Position Through Hole, Right Angle Piano Actuator 25mA 24VDC

Documents

Technical documentation and resources

Datasheet

Specification	A6FR-8104	A6FR Series

Actuator Level	Raised	Flush, Recessed, Raised
Actuator Type	Piano	Piano
Circuit	SPST	SPST
Current Rating (Amps)	25 mA	25 mA
Electrical Life	1000 Cycles	1000 Cycles
Height Above Board	10.2 mm	10.2 mm
Height Above Board	0.402 in	0.402 in
Length	21.87 mm	6.63 - 26.95 mm
Length	0.861 "	0.261 - 1.061 "
Length	-	0.361 "
Length	-	0.761 "
Mechanical Life	1000 Cycles	1000 Cycles
Mounting Type	Through Hole, Right Angle	Through Hole, Right Angle
Number of Positions	8	2 - 10
Operating Temperature [Max]	70 °C	70 °C
Operating Temperature [Min]	-20 C	-20 C
Pitch	Full	Full
Pitch [x]	0.1 in	0.1 in
Pitch [x]	2.54 mm	2.54 mm
Termination Style	PC Pin	PC Pin
Voltage Rating	24 VDC	24 VDC
Washable	False	False

Part

Termination Style

Pitch [x]

Pitch

Pitch [x]

Washable

Operating Temperature [Min]

Operating Temperature [Max]

Current Rating (Amps)

Mechanical Life

Length

Voltage Rating

Circuit

Electrical Life

Height Above Board

Actuator Level

Mounting Type

Actuator Type

Number of Positions

Length

Length [x]

Omron Electronics Inc-EMC Div

A6FR-3101

PC Pin

0.1 in

Full

2.54 mm

-20 C

70 °C

25 mA

1000 Cycles

9.17 mm
