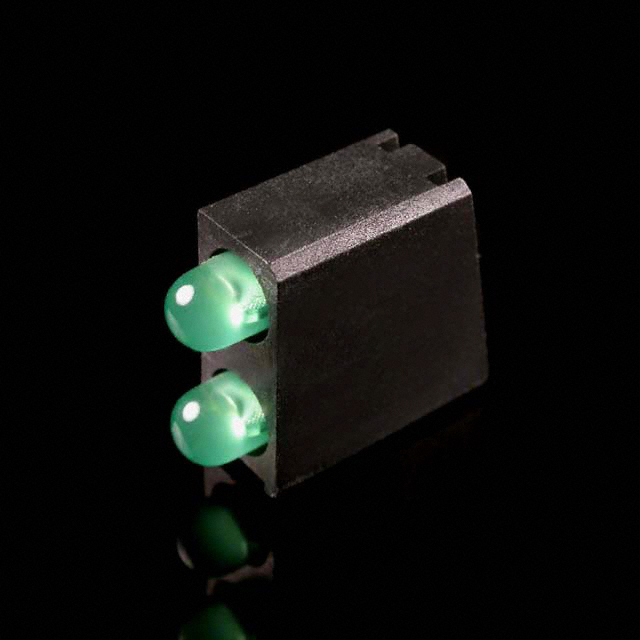

WP7104ALUP/2GD-0L

Active

Kingbright

LED CBI 3MM BI-LVL GRN SMD RA

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

WP7104ALUP/2GD-0L

Active

Kingbright

LED CBI 3MM BI-LVL GRN SMD RA

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	WP7104ALUP/2GD-0L	WP7104 Series

	-	-
Color	Green (x 2)	Green (x 2), Cyan, Pink
Configuration	2 High	2 High, Standard
Current - DC Forward (If) (Max)	-	50 mA
Current - Test	-	20 mA
Height (Max)	-	5.9 mm
Lens Color	-	Colorless, White
Lens Size	3 mm	3 mm
Lens Size	T-1	T-1
Lens Style	Round with Domed Top	Round with Domed Top
Lens Transparency	-	Clear, Diffused
Lens Type	Tinted, Diffused	Tinted, Diffused
Millicandela Rating	22.5 mcd	22.5 - 1600 mcd
Mounting Type	Surface Mount, Right Angle	Surface Mount, Right Angle, Through Hole
Operating Temperature	-	85 °C
Operating Temperature	-	-40 °C
Orientation	-	Top View
Package / Case	-	Radial, T-1
Radiant Intensity (Ie) Min @ If	-	7 mW/sr
Size / Dimension	-	2.9 mm
Supplier Device Package	-	T-1, T-1 (3mm)
Type	-	Infrared (IR)
Viewing Angle	-	34 °
Viewing Angle [custom]	40 °	40 °
Voltage - Forward (Vf) (Typ)	-	3.3 V
Wavelength	-	940 nm
Wavelength - Peak	568 nm	568 nm

WP7104 Series

LED 2MM ROUND COOL WHITE

Part	Lens Style	Viewing Angle [custom]	Wavelength - Peak	Color	Mounting Type	Configuration	Lens Type	Millicandela Rating	Lens Size	Lens Size	Viewing Angle	Voltage - Forward (Vf) (Typ)	Package / Case	Size / Dimension [diameter]	Height (Max) [Max] [z]	Supplier Device Package	Current - Test	Lens Transparency	Lens Color	Orientation	Wavelength	Type	Radiant Intensity (Ie) Min @ If	Current - DC Forward (If) (Max) [Max]	Operating Temperature [Max]	Operating Temperature [Min]
Kingbright WP7104-CMM64
Kingbright WP7104VR41C-C1
Kingbright WP7104ALUP/2GD-0L	Round with Domed Top	40 °	568 nm	Green (x 2)	Surface Mount, Right Angle	2 High	Diffused, Tinted	22.5 mcd	3 mm	T-1
Kingbright WP7104PR51C/A	Round with Domed Top			Cyan	Through Hole	Standard		1600 mcd	3 mm	T-1	34 °	3.3 V	Radial	2.9 mm	5.9 mm	T-1	20 mA	Clear	Colorless
Kingbright WP7104F3C					Through Hole						34 °		T-1							Top View	940 nm	Infrared (IR)	7 mW/sr	50 mA	85 °C	-40 °C
Kingbright WP7104VRVCW/A	Round with Domed Top	40 °		Pink	Through Hole	Standard		1000 mcd	3 mm	T-1		3.3 V	Radial	2.9 mm	5.9 mm	T-1 (3mm)	20 mA	Diffused	White

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Cut Tape (CT)	1	$ 2.99
		10	$ 1.99
		100	$ 1.53
	Digi-Reel®	1	$ 2.99
		10	$ 1.99
		100	$ 1.53
	Tape & Reel (TR)	250	$ 1.53
		500	$ 1.39
		750	$ 1.26
		1250	$ 1.19
		2500	$ 1.13
		6250	$ 1.10

Description

General part information

WP7104 Series

LED Circuit Board Indicator LED Circuit Board Indicator 2 High Green (x 2) Diffused, Tinted 2.2V 20mA Round with Domed Top 3mm, T-1 Surface Mount, Right Angle

Documents

Technical documentation and resources
