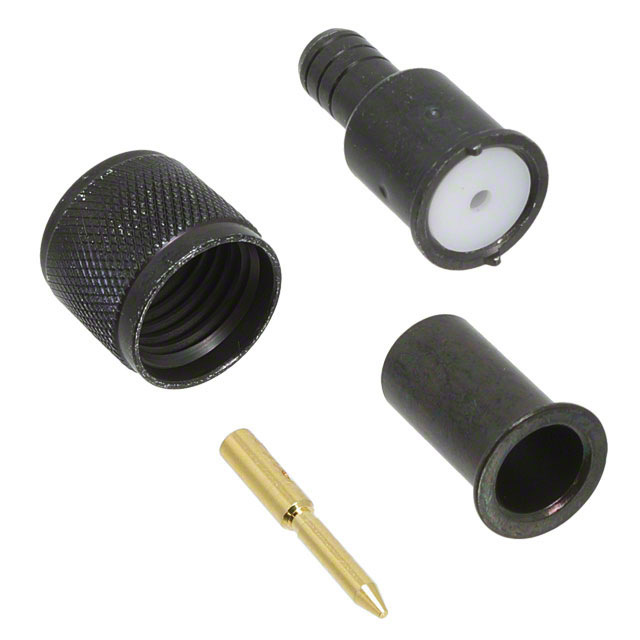

081-115BK-1000

Active

AMPHENOL RF

CONN MINI UHF PLUG STR 50OHM

Search across all available documentation for this part.

Active

AMPHENOL RF

CONN MINI UHF PLUG STR 50OHM

Technical Specifications

Parameters and characteristics for this part

Specification	081-115BK-1000

Body Finish	Chromate, Black
Body Material	Brass
Cable Group	58C, 9907, 58B, LMR-195, 58A, 303, 141, Belden B7806A, RG-58
Center Contact Material	Brass
Center Contact Plating	Gold
Connector Style	Mini, UHF
Connector Type	Male Pin, Plug
Contact Termination	Solder, Crimp
Dielectric Material	Polytetrafluoroethylene (PTFE)
Frequency - Max [Max]	2.2 GHz
Housing Color	Black
Impedance	50 Ohms
Mating Cycles	500
Mounting Type	Free Hanging (In-Line)
Number of Ports	1
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-55 °C
Shield Termination	Crimp
Voltage Rating	335 V

CONN MINI UHF PLUG STR 50OHM

Part	Frequency - Max [Max]	Body Finish	Center Contact Material	Cable Group	Voltage Rating	Center Contact Plating	Housing Color	Number of Ports	Dielectric Material	Mounting Type	Mating Cycles	Connector Style	Impedance	Shield Termination	Operating Temperature [Max]	Operating Temperature [Min]	Contact Termination	Connector Type	Body Material
AMPHENOL RF 081-115BK-1000	2.2 GHz	Chromate, Black	Brass	141, 303, 58A, 58B, 58C, 9907, Belden B7806A, LMR-195, RG-58	335 V	Gold	Black	1	Polytetrafluoroethylene (PTFE)	Free Hanging (In-Line)	500	Mini, UHF	50 Ohms	Crimp	85 °C	-55 °C	Crimp, Solder	Male Pin, Plug	Brass

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	100	$ 8.85

General part information

UHF, Mini Connector Plug, Male Pin 50 Ohms Free Hanging (In-Line) Crimp or Solder
