826629-2

Active

TE Connectivity AMP Connectors

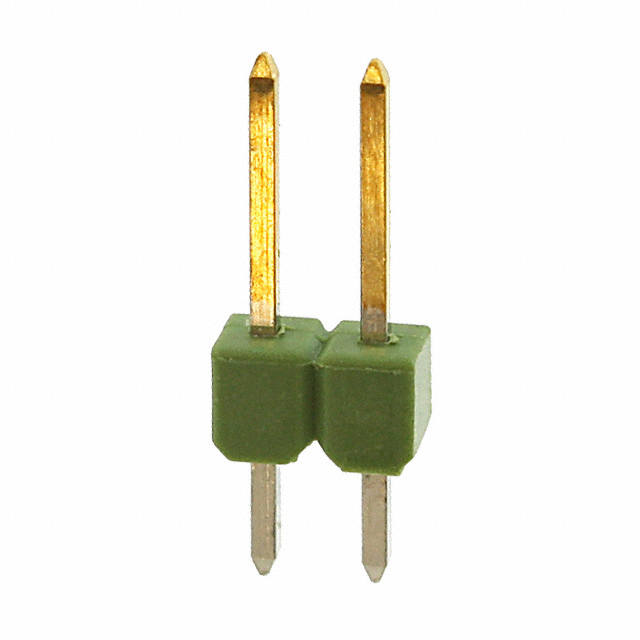

CONN HEADER VERT 2POS 2.54MM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

826629-2

Active

TE Connectivity AMP Connectors

CONN HEADER VERT 2POS 2.54MM

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 0.39
		10	$ 0.33
		100	$ 0.27
		500	$ 0.24
		1000	$ 0.22
		5000	$ 0.20
		10000	$ 0.19

Description

General part information

826629 Series

Connector Header Through Hole 2 position 0.100" (2.54mm)

Documents

Technical documentation and resources

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	826629-2	826629 Series

Connector Type	Breakaway, Header	Breakaway, Header
Contact Finish - Mating	Gold	Gold
Contact Finish - Post	Tin	Tin
Contact Finish Thickness - Mating	0.099 µm	0.099 µm
Contact Finish Thickness - Mating	3.9 µin	3.9 µin
Contact Finish Thickness - Post	3 µm	3 µm
Contact Finish Thickness - Post	118.1 µin	118.1 µin
Contact Length - Mating	6.7 mm	6.7 mm
Contact Length - Mating	0.264 in	0.264 in
Contact Length - Post	3.2 mm	3.2 mm
Contact Length - Post [x]	0.126 in	0.126 in
Contact Material	Brass	Brass
Contact Shape	Square	Square
Contact Type	Male Pin	Male Pin
Current Rating (Amps)	5 A	5 A
Fastening Type	Push-Pull	Push-Pull
Insulation Color	Green	Green
Insulation Material	Polybutylene Terephthalate (PBT)	Polybutylene Terephthalate (PBT)
Material Flammability Rating	UL94 V-0	UL94 V-0
Mounting Type	Through Hole	Through Hole
Number of Positions	2	2 - 36
Number of Positions Loaded	All	All
Number of Rows	1	1
Operating Temperature [Max]	105 ░C	105 ░C
Operating Temperature [Min]	-65 ░C	-65 ░C
Overall Contact Length	12.7 mm	12.7 mm
Overall Contact Length	0.5 "	0.5 "
Pitch - Mating	0.1 in	0.1 in
Pitch - Mating	2.54 mm	2.54 mm
Shrouding	Unshrouded	Unshrouded
Style	Board to Board, Cable	Board to Board, Cable
Termination	Solder	Solder

826629 Series

CONN HEADER VERT 5POS 2.54MM

Part	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Termination	Contact Finish - Mating	Contact Shape	Fastening Type	Style	Shrouding	Material Flammability Rating	Insulation Color	Contact Length - Post	Contact Length - Post [x]	Current Rating (Amps)	Number of Rows	Number of Positions Loaded	Pitch - Mating	Pitch - Mating	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Contact Material	Operating Temperature [Min]	Operating Temperature [Max]	Insulation Material	Contact Finish - Post	Overall Contact Length	Overall Contact Length	Connector Type	Mounting Type	Contact Length - Mating	Contact Length - Mating	Contact Type	Number of Positions
TE Connectivity AMP Connectors 826629-5	3 µm	118.1 µin	Solder	Gold	Square	Push-Pull	Board to Board, Cable	Unshrouded	UL94 V-0	Green	3.2 mm	0.126 in	5 A	1	All	0.1 in	2.54 mm	0.099 µm	3.9 µin	Brass	-65 ░C	105 ░C	Polybutylene Terephthalate (PBT)	Tin	12.7 mm	0.5 "	Breakaway, Header	Through Hole	6.7 mm	0.264 in	Male Pin
TE Connectivity AMP Connectors 826629-6	3 µm	118.1 µin	Solder	Gold	Square	Push-Pull	Board to Board, Cable	Unshrouded	UL94 V-0	Green	3.2 mm	0.126 in	5 A	1	All	0.1 in	2.54 mm	0.099 µm	3.9 µin	Brass	-65 ░C	105 ░C	Polybutylene Terephthalate (PBT)	Tin	12.7 mm	0.5 "	Breakaway, Header	Through Hole	6.7 mm	0.264 in	Male Pin	6
TE Connectivity AMP Connectors 826629-8	3 µm	118.1 µin	Solder	Gold	Square	Push-Pull	Board to Board, Cable	Unshrouded	UL94 V-0	Green	3.2 mm	0.126 in	5 A	1	All	0.1 in	2.54 mm	0.099 µm	3.9 µin	Brass	-65 ░C	105 ░C	Polybutylene Terephthalate (PBT)	Tin	12.7 mm	0.5 "	Breakaway, Header	Through Hole	6.7 mm	0.264 in	Male Pin	8
TE Connectivity AMP Connectors 826629-4	3 µm	118.1 µin	Solder	Gold	Square	Push-Pull	Board to Board, Cable	Unshrouded	UL94 V-0	Green	3.2 mm	0.126 in	5 A	1	All	0.1 in	2.54 mm	0.099 µm	3.9 µin	Brass	-65 ░C	105 ░C	Polybutylene Terephthalate (PBT)	Tin	12.7 mm	0.5 "	Breakaway, Header	Through Hole	6.7 mm	0.264 in	Male Pin	4
TE Connectivity AMP Connectors 826629-3	3 µm	118.1 µin	Solder	Gold	Square	Push-Pull	Board to Board, Cable	Unshrouded	UL94 V-0	Green	3.2 mm	0.126 in	5 A	1	All	0.1 in	2.54 mm	0.099 µm	3.9 µin	Brass	-65 ░C	105 ░C	Polybutylene Terephthalate (PBT)	Tin	12.7 mm	0.5 "	Breakaway, Header	Through Hole	6.7 mm	0.264 in	Male Pin
TE Connectivity AMP Connectors 826629-7	3 µm	118.1 µin	Solder	Gold	Square	Push-Pull	Board to Board, Cable	Unshrouded	UL94 V-0	Green	3.2 mm	0.126 in	5 A	1	All	0.1 in	2.54 mm	0.099 µm	3.9 µin	Brass	-65 ░C	105 ░C	Polybutylene Terephthalate (PBT)	Tin	12.7 mm	0.5 "	Breakaway, Header	Through Hole	6.7 mm	0.264 in	Male Pin	7
TE Connectivity AMP Connectors 1-826629-4	3 µm	118.1 µin	Solder	Gold	Square	Push-Pull	Board to Board, Cable	Unshrouded	UL94 V-0	Green	3.2 mm	0.126 in	5 A	1	All	0.1 in	2.54 mm	0.099 µm	3.9 µin	Brass	-65 ░C	105 ░C	Polybutylene Terephthalate (PBT)	Tin	12.7 mm	0.5 "	Breakaway, Header	Through Hole	6.7 mm	0.264 in	Male Pin	14
TE Connectivity AMP Connectors 826629-2	3 µm	118.1 µin	Solder	Gold	Square	Push-Pull	Board to Board, Cable	Unshrouded	UL94 V-0	Green	3.2 mm	0.126 in	5 A	1	All	0.1 in	2.54 mm	0.099 µm	3.9 µin	Brass	-65 ░C	105 ░C	Polybutylene Terephthalate (PBT)	Tin	12.7 mm	0.5 "	Breakaway, Header	Through Hole	6.7 mm	0.264 in	Male Pin	2
TE Connectivity AMP Connectors 3-826629-2	3 µm	118.1 µin	Solder	Gold	Square	Push-Pull	Board to Board, Cable	Unshrouded	UL94 V-0	Green	3.2 mm	0.126 in	5 A	1	All	0.1 in	2.54 mm	0.099 µm	3.9 µin	Brass	-65 ░C	105 ░C	Polybutylene Terephthalate (PBT)	Tin	12.7 mm	0.5 "	Breakaway, Header	Through Hole	6.7 mm	0.264 in	Male Pin
TE Connectivity AMP Connectors 2-826629-0	3 µm	118.1 µin	Solder	Gold	Square	Push-Pull	Board to Board, Cable	Unshrouded	UL94 V-0	Green	3.2 mm	0.126 in	5 A	1	All	0.1 in	2.54 mm	0.099 µm	3.9 µin	Brass	-65 ░C	105 ░C	Polybutylene Terephthalate (PBT)	Tin	12.7 mm	0.5 "	Breakaway, Header	Through Hole	6.7 mm	0.264 in	Male Pin	20
