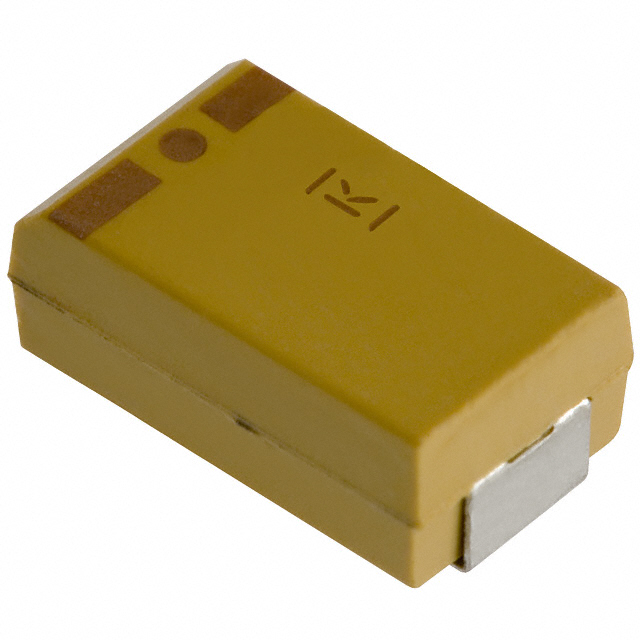

T494V105K050AT

Active

KEMET

CAP TANT 1UF 10% 50V 2917

Search across all available documentation for this part.

Active

KEMET

CAP TANT 1UF 10% 50V 2917

Technical Specifications

Parameters and characteristics for this part

Specification	T494V105K050AT

Capacitance	1 µF
ESR (Equivalent Series Resistance)	4 Ohm
Features	General Purpose
Height - Seated (Max) [Max] [z]	2 mm
Height - Seated (Max) [Max] [z]	0.079 in
Lifetime @ Temp.	2000 Hrs
Manufacturer Size Code	V
Mounting Type	Surface Mount
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Package / Case	7343 Metric
Package / Case	2917
Size / Dimension [x]	0.287 "
Size / Dimension [x]	7.3 mm
Size / Dimension [y]	4.3 mm
Size / Dimension [y]	0.169 "
Tolerance	10 %
Type	Molded
Voltage - Rated	50 VDC

Part	Features	Voltage - Rated	Tolerance	Package / Case	Package / Case	Manufacturer Size Code	Type	Capacitance	Lifetime @ Temp.	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Operating Temperature [Min]	Operating Temperature [Max]	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Mounting Type	ESR (Equivalent Series Resistance)
KEMET T494V476K016AT	General Purpose	16 V	10 %	7343 Metric	2917	V	Molded	47 µF	2000 Hrs	4.3 mm	0.287 "	7.3 mm	0.169 "	-55 °C	125 °C	2 mm	0.079 in	Surface Mount
KEMET T494V476M016AT	General Purpose	16 V	20 %	7343 Metric	2917	V	Molded	47 µF	2000 Hrs	4.3 mm	0.287 "	7.3 mm	0.169 "	-55 °C	125 °C	2 mm	0.079 in	Surface Mount	300 mOhm
KEMET T494V336M020AT	General Purpose	20 V	20 %	7343 Metric	2917	V	Molded	33 ÁF	2000 Hrs	4.3 mm	0.287 "	7.3 mm	0.169 "	-55 °C	125 °C	2 mm	0.079 in	Surface Mount	400 mOhm
KEMET T494V107K006AH	General Purpose	6.3 V	10 %	7343 Metric	2917	V	Molded	100 µF	2000 Hrs	4.3 mm	0.287 "	7.3 mm	0.169 "	-55 °C	125 °C	2 mm	0.079 in	Surface Mount	200 mOhm
KEMET T494V105K050AT	General Purpose	50 VDC	10 %	7343 Metric	2917	V	Molded	1 µF	2000 Hrs	4.3 mm	0.287 "	7.3 mm	0.169 "	-55 °C	125 °C	2 mm	0.079 in	Surface Mount	4 Ohm
KEMET T494V227M004AH	General Purpose	4 V	20 %	7343 Metric	2917	V	Molded	220 µF	2000 Hrs	4.3 mm	0.287 "	7.3 mm	0.169 "	-55 °C	125 °C	2 mm	0.079 in	Surface Mount
KEMET T494V107K006AT	General Purpose	6.3 V	10 %	7343 Metric	2917	V	Molded	100 µF	2000 Hrs	4.3 mm	0.287 "	7.3 mm	0.169 "	-55 °C	125 °C	2 mm	0.079 in	Surface Mount	200 mOhm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

1 µF Molded Tantalum Capacitors 50 V 2917 (7343 Metric) 4Ohm @ 100kHz
