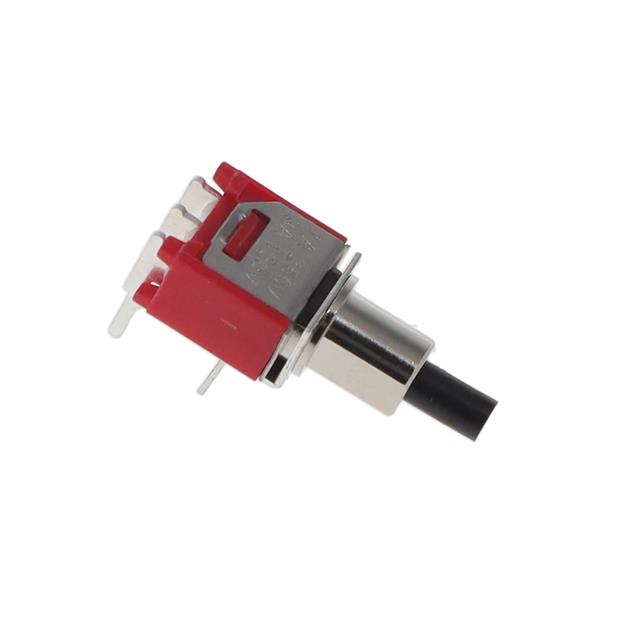

800CSP1B6M6QE
ActiveE-Switch
SWITCH: PUSH-BUTTON; POS: 2; SPDT; 3A/28VDC; 1A/250VAC; THT; 800C
Deep-Dive with AI
Search across all available documentation for this part.
800CSP1B6M6QE
ActiveE-Switch
SWITCH: PUSH-BUTTON; POS: 2; SPDT; 3A/28VDC; 1A/250VAC; THT; 800C
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 800CSP1B6M6QE |
|---|---|
| Actuator Type | Round, Plunger |
| Circuit | SPDT |
| Color - Actuator/Cap | Black |
| Current Rating (Amps) | 3 A |
| Electrical Life | 6000 Cycles |
| Mechanical Life | 6000 Cycles |
| Mounting Type | Through Hole, Right Angle |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -30 ░C |
| Switch Function | On-On |
| Termination Style | PC Pin |
| Type | Standard |
| Voltage Rating - AC | 120 V |
| Voltage Rating - DC | 28 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
800c Series
Pushbutton Switch SPDT Standard Through Hole, Right Angle
Documents
Technical documentation and resources
No documents available
