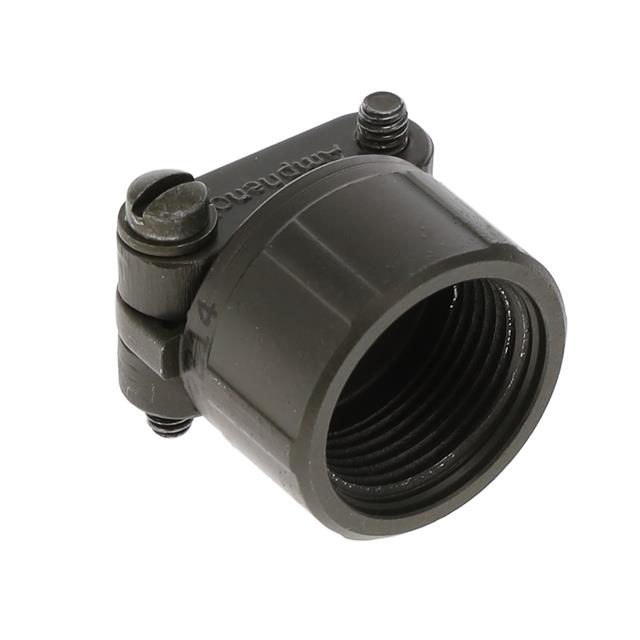

MS3057-4A

Active

Amphenol Interconnect India

CONN BACKSHELL

Search across all available documentation for this part.

Active

Amphenol Interconnect India

CONN BACKSHELL

Technical Specifications

Parameters and characteristics for this part

Specification	MS3057-4A

Cable Exit	180 °
Cable Opening [diameter]	0.312 in
Cable Opening [diameter]	7.93 mm
For Use With/Related Products	MIL-C-22992 Connectors
Plating	Cadmium
Primary Material	Metal
Shell Size - Insert	10SL, 12S, 12, 12SL, 10S
Shielding	Unshielded
Thread Size	5/8-24 UNEF
Type	Cable Clamp

Part	Primary Material	Plating	For Use With/Related Products	Type	Shielding	Cable Opening [custom]	Cable Opening [custom]	Cable Opening [custom]	Cable Exit	Shell Size - Insert	Cable Opening [diameter]	Cable Opening [diameter]	Thread Size	Cable Opening [Min] [custom]	Cable Opening [Max] [custom]	Cable Opening [Max] [custom]	Cable Opening [Min] [custom]	Accessory Type	Shell Size - Insert
Amphenol Interconnect India MS3057-12A	Metal	Cadmium	MIL-C-22992 Connectors	Cable Clamp	Unshielded	11.3 mm	0.445 in 0.738 in	18.75 mm	180 °	20 22
Amphenol Interconnect India MS3057-4A	Metal	Cadmium	MIL-C-22992 Connectors	Cable Clamp	Unshielded				180 °	10S 10SL 12 12S 12SL	0.312 in	7.93 mm	5/8-24 UNEF
Amphenol Interconnect India MS3057-8A	Metal	Cadmium	MIL-C-22992 Connectors	Cable Clamp	Unshielded				180 °					0.316 in	0.515 in	13.08 mm	8.03 mm
Amphenol Interconnect India MS3057-6A	Metal	Cadmium	MIL-C-22992 Connectors	Cable Clamp	Unshielded	5.84 mm	0.23 in 0.428 in	10.87 mm	180 °	14 14S
Amphenol Interconnect India MS3057-10A			MS Series Connectors															Cable Clamp	18
Amphenol Interconnect India MS3057-3A			MS Series Connectors							8S								Cable Clamp
Amphenol Interconnect India MS3057-24A	Metal	Cadmium	MIL-C-22992 Connectors	Cable Clamp	Unshielded				180 °										36

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Connector Cable Clamp 5/8-24 UNEF 10S, 10SL, 12, 12S, 12SL
