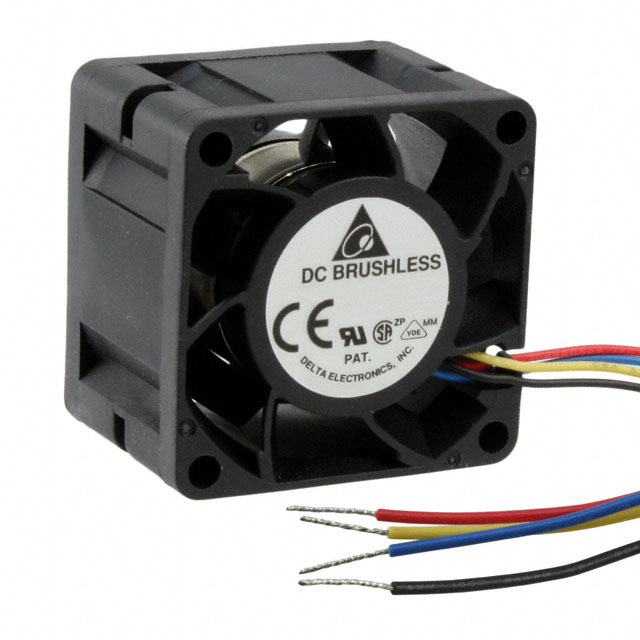

FFB03812VHN-9C3P

Active

Delta Electronics

FAN AXIAL 38X28MM 12VDC WIRE

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsFans, Electric - Component UL Cert Datasheet +2

FFB03812VHN-9C3P

Active

Delta Electronics

FAN AXIAL 38X28MM 12VDC WIRE

Deep-Dive with AI

DocumentsFans, Electric - Component UL Cert Datasheet +2

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	FFB03812VHN-9C3P

Air Flow	20.2 CFM
Air Flow	0.566 m³/min
Approval Agency	UL, CE, VDE, CSA
Bearing Type	Ball
Current Rating (Amps)	0.55 A
Fan Type	Tubeaxial
Features	Locked Rotor Protection, PWM Control, Speed Sensor (Tach)
Lifetime @ Temp.	50000 Hrs
Material - Blade	Plastic
Material - Frame	Plastic
Noise	58.5 dB
Operating Temperature [Max]	60 °C
Operating Temperature [Max]	60 °C
Operating Temperature [Min]	-10 °C
Operating Temperature [Min]	-10 °C
Power (Watts)	6.6 W
RPM	16000 RPM
Size / Dimension [x]	38 mm
Size / Dimension [z]	38 mm
Static Pressure	1.463 in H2O
Static Pressure	364.4 Pa
Termination	4 Wire Leads
Voltage - Rated	12 VDC
Voltage Range [Max]	13.2 VDC
Voltage Range [Min]	10.8 VDC
Weight	0.102 lb
Weight	46.27 g
Width [y]	28 mm

FFB03812 Series

Part	Static Pressure	Static Pressure	Power (Watts)	Weight	Weight	RPM	Material - Blade	Width [y]	Size / Dimension [x]	Size / Dimension [z]	Voltage - Rated	Voltage Range [Max]	Voltage Range [Min]	Features	Lifetime @ Temp.	Fan Type	Approval Agency	Termination	Noise	Material - Frame	Current Rating (Amps)	Operating Temperature [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Operating Temperature [Min]	Bearing Type	Air Flow	Air Flow
Delta Electronics FFB03812VN-SPC	3.4 in H2O	846.9 Pa	10.2 W	48.08 g	0.106 lb	23000 RPM	Plastic	28 mm	38 mm	38 mm	12 VDC	13.2 VDC	10.8 VDC	Locked Rotor Protection PWM Control Speed Sensor (Tach)	70000 Hrs	Tubeaxial	CE CSA UL VDE	4 Wire Leads	62.5 dB	Plastic	0.85 A	70 °C	70 °C	-10 °C	-10 °C	Ball	0.644 m³/min	23 CFM
Delta Electronics FFB03812VHN	1.463 in H2O	364.4 Pa	7.8 W	46.27 g	0.102 lb	16000 RPM	Plastic	28 mm	38 mm	38 mm	12 VDC	13.2 VDC	7 V		50000 Hrs	Tubeaxial	CE CSA UL VDE	2 Wire Leads	58.5 dB	Plastic	650 mA	60 °C	60 °C	-10 °C	-10 °C	Ball	0.566 m³/min	20.2 CFM
Delta Electronics FFB03812VHN-T9TP	1.463 in H2O	364.4 Pa	6.6 W	46.27 g	0.102 lb	16000 RPM	Plastic	28 mm	38 mm	38 mm	12 VDC	13.2 VDC	10.8 VDC	Locked Rotor Protection PWM Control Speed Sensor (Tach)	50000 Hrs	Tubeaxial	CE CSA UL VDE	4 Wire Leads	58.5 dB	Plastic	0.55 A	60 °C	60 °C	-10 °C	-10 °C	Ball	0.566 m³/min	20.2 CFM
Delta Electronics FFB03812VHN-9C3P	1.463 in H2O	364.4 Pa	6.6 W	46.27 g	0.102 lb	16000 RPM	Plastic	28 mm	38 mm	38 mm	12 VDC	13.2 VDC	10.8 VDC	Locked Rotor Protection PWM Control Speed Sensor (Tach)	50000 Hrs	Tubeaxial	CE CSA UL VDE	4 Wire Leads	58.5 dB	Plastic	0.55 A	60 °C	60 °C	-10 °C	-10 °C	Ball	0.566 m³/min	20.2 CFM
Delta Electronics FFB03812MN-F00	0.566 in H2O	141 Pa	3 W	46.27 g	0.102 lb	10000 RPM	Plastic	28 mm	38 mm	38 mm	12 VDC	13.8 VDC	7 V	Locked Rotor Protection Speed Sensor (Tach)	50000 Hrs	Tubeaxial	CE CSA UL VDE	3 Wire Leads	45 dB(A)	Plastic	0.25 A	60 °C	60 °C	-10 °C	-10 °C	Ball	0.347 m³/min	12.4 CFM
Delta Electronics FFB03812VHN-F00	1.463 in H2O	364.4 Pa	7.8 W	46.27 g	0.102 lb	16000 RPM	Plastic	28 mm	38 mm	38 mm	12 VDC	13.2 VDC	7 V	Locked Rotor Protection Speed Sensor (Tach)	50000 Hrs	Tubeaxial	CE CSA UL VDE	3 Wire Leads	58.5 dB	Plastic	650 mA	60 °C	60 °C	-10 °C	-10 °C	Ball	0.566 m³/min	20.2 CFM

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 18.51
		10	$ 17.67
		25	$ 15.99
		50	$ 14.72
		100	$ 13.21
		288	$ 12.20
		576	$ 11.36

Description

General part information

FFB03812 Series

Fan Tubeaxial 12VDC Square - 38mm L x 38mm H Ball 20.2 CFM (0.566m³/min) 4 Wire Leads
