MAX9947EVKIT+
ActiveAnalog Devices Inc./Maxim Integrated

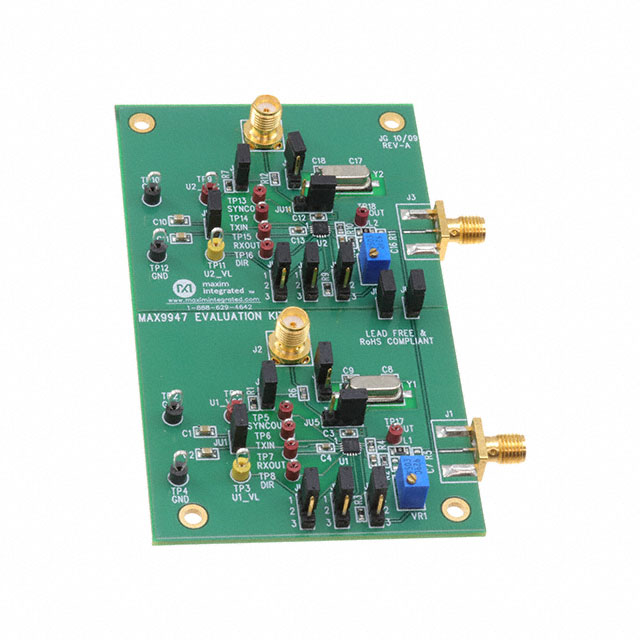

EVAL KIT MAX9947
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
MAX9947EVKIT+
ActiveAnalog Devices Inc./Maxim Integrated
EVAL KIT MAX9947
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | MAX9947EVKIT+ | MAX9947 Series |
|---|---|---|
| Current - Receiving | - | 23 mA |
| Current - Transmitting | - | 23 mA |
| Data Rate (Max) | - | 115.2 kbps |
| For Use With/Related Products | MAX9947 | MAX9947 |
| Frequency | - | 2.176 MHz |
| Modulation | - | OOK |
| Mounting Type | - | Surface Mount |
| Operating Temperature | - | 85 °C |
| Operating Temperature | - | -40 °C |
| Package / Case | - | 16-WFQFN Exposed Pad |
| Power - Output | - | 12 dBm |
| RF Family/Standard | - | AISG |
| Supplied Contents | Board(s) | Board(s) |
| Supplier Device Package | - | 16-TQFN (3x3) |
| Type | Transceiver | Transceiver, TxRx Only |
| Voltage - Supply | - | 5.5 V |
| Voltage - Supply | - | 3 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 75.34 | |
| 10 | $ 75.16 | |||
MAX9947 Series
EVAL KIT MAX9947
| Part | Type | Supplied Contents | For Use With/Related Products | Current - Receiving | Modulation | RF Family/Standard | Power - Output | Data Rate (Max) [Max] | Package / Case | Supplier Device Package | Operating Temperature [Max] | Operating Temperature [Min] | Voltage - Supply [Max] | Voltage - Supply [Min] | Frequency | Mounting Type | Current - Transmitting |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Analog Devices Inc./Maxim Integrated MAX9947EVKIT+ | Transceiver | Board(s) | MAX9947 | ||||||||||||||
Analog Devices Inc./Maxim Integrated MAX9947ETE+ | TxRx Only | 23 mA | OOK | AISG | 12 dBm | 115.2 kbps | 16-WFQFN Exposed Pad | 16-TQFN (3x3) | 85 °C | -40 °C | 5.5 V | 3 V | 2.176 MHz | Surface Mount | 23 mA | ||
Analog Devices Inc./Maxim Integrated MAX9947ETE+T | TxRx Only | 23 mA | OOK | AISG | 12 dBm | 115.2 kbps | 16-WFQFN Exposed Pad | 16-TQFN (3x3) | 85 °C | -40 °C | 5.5 V | 3 V | 2.176 MHz | Surface Mount | 23 mA |
Description
General part information
MAX9947 Series
- MAX9947 Transceiver Evaluation Board
