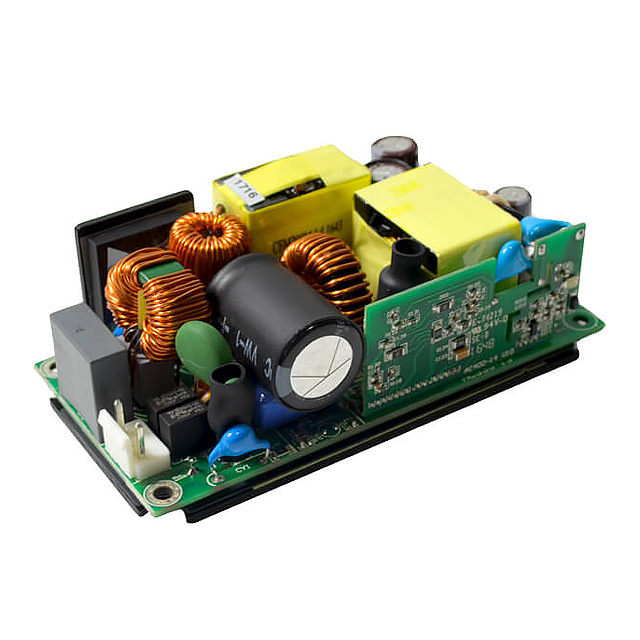

VMS-200-24

Obsolete

CUI Inc.

AC/DC CONVERTER 24V 200W

Search across all available documentation for this part.

Obsolete

CUI Inc.

AC/DC CONVERTER 24V 200W

Technical Specifications

Parameters and characteristics for this part

Part	Current - Output 1	Mounting Type	Voltage - Input [Min]	Voltage - Input [Max]	Features	Voltage - Output 1	Operating Temperature [Min]	Operating Temperature [Max]	Efficiency	Number of Outputs	Applications	Voltage - Isolation	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Power (Watts)	Approval Agency	Standard Number	Type
CUI Inc. VMS-200-12	16.67 A	Chassis Mount	90 VAC	264 VAC	Universal Input	12 V	-20 °C	80 ¯C	92 %	1	Medical	4000 V	2 in	1.48 "	37.6 mm	50.8 mm	101.6 mm	4 in	200 W	CB Scheme EN IEC TUV UL	55011 Class B 60601-1 61000-3-2 61000-3-3	Open Frame
CUI Inc. VMS-200-12-CNF	16.67 A	Chassis Mount	90 VAC	264 VAC	Universal Input	12 V	-20 °C	80 ¯C	92 %	1	Medical	4000 V	2.44 "	1.58 "	40 mm	62 mm	117 mm	4.61 "	200 W	CB Scheme EN IEC TUV UL	55011 Class B 60601-1 61000-3-2 61000-3-3	Enclosed
CUI Inc. VMS-200-48-CNF	4.17 A	Chassis Mount	90 VAC	264 VAC	Universal Input	48 V	-20 °C	80 ¯C	93 %	1	Medical	4000 V	2.44 "	1.58 "	40 mm	62 mm	117 mm	4.61 "	200 W	CB Scheme EN IEC TUV UL	55011 Class B 60601-1 61000-3-2 61000-3-3	Enclosed
CUI Inc. VMS-200-24	8.33 A	Chassis Mount	90 VAC	264 VAC	Universal Input	24 V	-20 °C	80 ¯C	93.5 %	1	Medical	4000 V	2 in	1.48 "	37.6 mm	50.8 mm	101.6 mm	4 in	200 W	CB Scheme EN IEC TUV UL	55011 Class B 60601-1 61000-3-2 61000-3-3	Open Frame
CUI Inc. VMS-200-24-CNF	8.33 A	Chassis Mount	90 VAC	264 VAC	Universal Input	24 V	-20 °C	80 ¯C	93.5 %	1	Medical	4000 V	2.44 "	1.58 "	40 mm	62 mm	117 mm	4.61 "	200 W	CB Scheme EN IEC TUV UL	55011 Class B 60601-1 61000-3-2 61000-3-3	Enclosed

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Open Frame AC DC Converters 1 Output 24V 90 ~ 264 VAC Input

Technical documentation and resources

No documents available
