SM-3A503

Active

Nidec Components Corporation

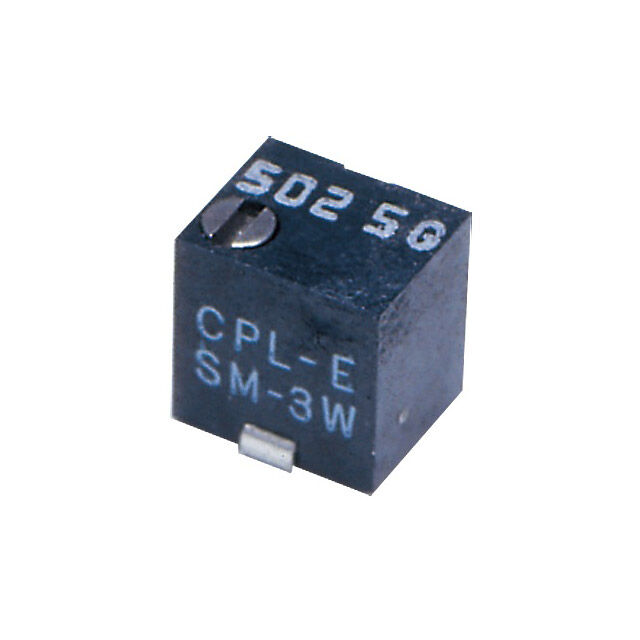

TRIMMER 50K OHM 0.125W J LEAD

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Datasheet

SM-3A503

Active

Nidec Components Corporation

TRIMMER 50K OHM 0.125W J LEAD

Deep-Dive with AI

DocumentsDatasheet Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	SM-3A503

Adjustment Type	Side Adjustment
Mounting Type	Surface Mount
Number of Turns	11
Power (Watts)	0.125 W
Power (Watts)	0.125 W
Resistance	50 kOhms
Resistive Material	Cermet
Size / Dimension [x]	3.9 mm
Size / Dimension [x]	0.154 in
Size / Dimension [y]	0.154 in
Size / Dimension [y]	3.9 mm
Temperature Coefficient	100 ppm/°C
Termination Style	J Lead
Tolerance	20 %

SM-3A Series

Part	Resistance	Resistive Material	Mounting Type	Tolerance	Number of Turns	Power (Watts)	Power (Watts)	Temperature Coefficient	Adjustment Type	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Termination Style
Nidec Components Corporation SM-3A500	50 Ohms	Cermet	Surface Mount	20 %	11	0.125 W	0.125 W	100 ppm/°C	Side Adjustment	0.154 in	3.9 mm	3.9 mm	0.154 in	J Lead
Nidec Components Corporation SM-3A504		Cermet	Surface Mount	20 %	11	0.125 W	0.125 W	100 ppm/°C	Side Adjustment	0.154 in	3.9 mm	3.9 mm	0.154 in	J Lead
Nidec Components Corporation SM-3A103	10000 Ohms	Cermet	Surface Mount	20 %	11	0.125 W	0.125 W	100 ppm/°C	Side Adjustment	0.154 in	3.9 mm	3.9 mm	0.154 in	J Lead
Nidec Components Corporation SM-3A503	50 kOhms	Cermet	Surface Mount	20 %	11	0.125 W	0.125 W	100 ppm/°C	Side Adjustment	0.154 in	3.9 mm	3.9 mm	0.154 in	J Lead
Nidec Components Corporation SM-3A502	5 kOhms	Cermet	Surface Mount	20 %	11	0.125 W	0.125 W	100 ppm/°C	Side Adjustment	0.154 in	3.9 mm	3.9 mm	0.154 in	J Lead
Nidec Components Corporation SM-3A201	200 Ohms	Cermet	Surface Mount	20 %	11	0.125 W	0.125 W	100 ppm/°C	Side Adjustment	0.154 in	3.9 mm	3.9 mm	0.154 in	J Lead
Nidec Components Corporation SM-3A101	100 Ohms	Cermet	Surface Mount	20 %	11	0.125 W	0.125 W	100 ppm/°C	Side Adjustment	0.154 in	3.9 mm	3.9 mm	0.154 in	J Lead
Nidec Components Corporation SM-3A102	1000 Ohms	Cermet	Surface Mount	20 %	11	0.125 W	0.125 W	100 ppm/°C	Side Adjustment	0.154 in	3.9 mm	3.9 mm	0.154 in	J Lead
Nidec Components Corporation SM-3A104	100 kOhms	Cermet	Surface Mount	20 %	11	0.125 W	0.125 W	100 ppm/°C	Side Adjustment	0.154 in	3.9 mm	3.9 mm	0.154 in	J Lead
Nidec Components Corporation SM-3A501	500 Ohms	Cermet	Surface Mount	20 %	11	0.125 W	0.125 W	100 ppm/°C	Side Adjustment	0.154 in	3.9 mm	3.9 mm	0.154 in	J Lead

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	200	$ 3.09

Description

General part information

SM-3A Series

50 kOhms 0.125W, 1/8W J Lead Surface Mount Trimmer Potentiometer Cermet 11.0 Turn Side Adjustment
