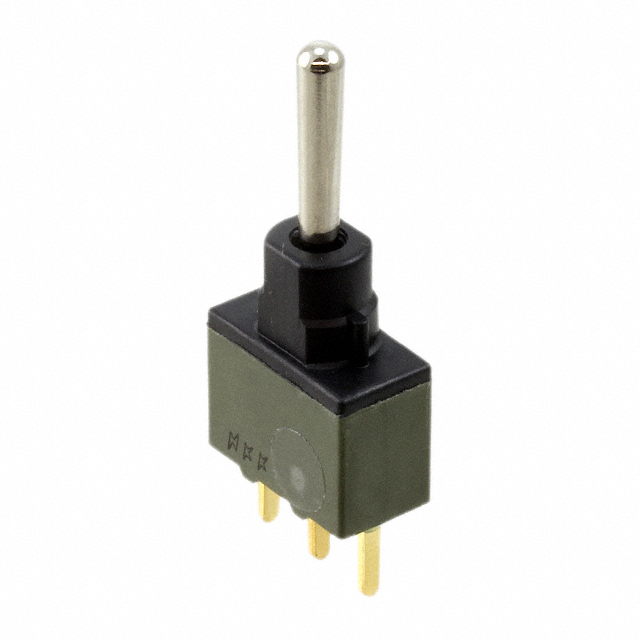

M2T18SA5A03

Obsolete

NKK Switches

SWITCH TOGGLE SPDT 6A 125V

Search across all available documentation for this part.

Obsolete

NKK Switches

SWITCH TOGGLE SPDT 6A 125V

Technical Specifications

Parameters and characteristics for this part

Part	Voltage Rating - AC	Voltage Rating - DC	Termination Style	Illumination	Actuator Material	Actuator Length [x]	Features	Switch Function	Bushing Thread	Circuit	Current Rating (Amps)	Actuator Type	Electrical Life	Mounting Type	Operating Temperature [Min]	Operating Temperature [Max]
NKK Switches M2T18SA5G13	28 V	28 V	PC Pin	Non-Illuminated	Brass Nickel Plated	0.5 in	Process Sealed	Mom-Off-Mom	Unthreaded	SPDT	0.4 VA	Standard Round	50000 Cycles	Through Hole	-30 ░C	85 °C
NKK Switches M2T18SA5A13/C	125 V	30 V	PC Pin	Non-Illuminated	Brass Chrome Plated	0.5 in	Process Sealed	Mom-Off-Mom	Unthreaded	SPDT	3 A 6 A	Standard Round	25000 Steps	Through Hole	-30 ░C	85 °C
NKK Switches M2T18SA5A13	125 V	30 V	PC Pin	Non-Illuminated	Brass Nickel Plated	0.5 in	Process Sealed	Mom-Off-Mom	Unthreaded	SPDT	3 A 6 A	Standard Round	25000 Steps	Through Hole	-30 ░C	85 °C
NKK Switches M2T18SA5A03	125 V	30 V	PC Pin	Non-Illuminated	Brass Nickel Plated	0.5 in	Process Sealed	Mom-Off-Mom	Unthreaded	SPDT	3 A 6 A	Standard Round	25000 Steps	Through Hole	-30 ░C	85 °C
NKK Switches M2T18SA5G30	28 V	28 V	PC Pin	Non-Illuminated	Brass Nickel Plated	0.5 in	Process Sealed	Mom-Off-Mom	Unthreaded	SPDT	0.4 VA	Standard Round	50000 Cycles	Through Hole Right Angle	-30 ░C	85 °C

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Toggle Switch SPDT Through Hole

Technical documentation and resources
