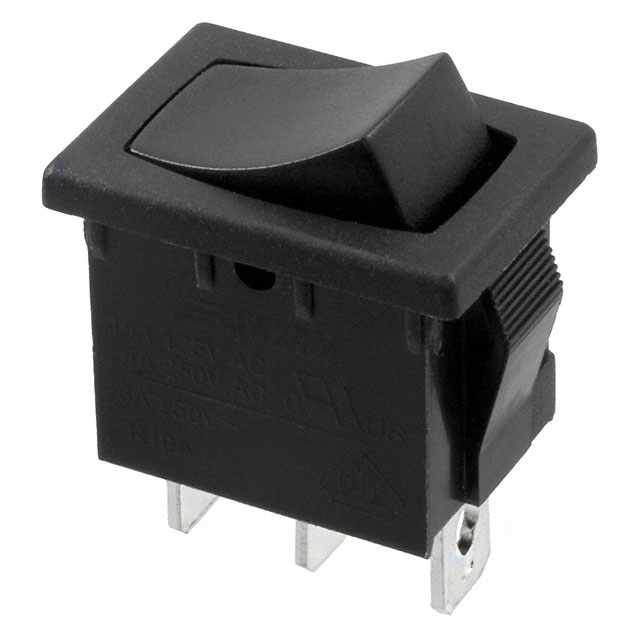

R1966CBLKBLKEF

Active

E-Switch

SPDT 125V ROCKER SWITCHES ROHS

Search across all available documentation for this part.

Active

E-Switch

SPDT 125V ROCKER SWITCHES ROHS

Technical Specifications

Parameters and characteristics for this part

Part	Actuator Type	Switch Function	Electrical Life	Voltage Rating - AC	Mounting Type	Mechanical Life	Termination Style	Current Rating (Amps)	Operating Temperature [Max]	Operating Temperature [Min]	Circuit	Color - Actuator/Cap	Actuator Marking
E-Switch R1966CBLKBLKAF	Concave (Curved)	On-On	10000 Cycles	125 V	Panel Mount Snap-In	30000 Steps	Quick Connect - 0.187" (4.7mm)	15 A	65 °C	-30 ░C	SPDT	Black	Dot
E-Switch R1966CBLKBLKFP	Concave (Curved)	On-On	10000 Cycles	125 V	Panel Mount Snap-In	30000 Steps	PC Pin	15 A	65 °C	-30 ░C	SPDT	Black	O -
E-Switch R1966CBLKBLKEF	Concave (Curved)	On-On	10000 Cycles	125 V	Panel Mount Snap-In	30000 Steps	Quick Connect - 0.187" (4.7mm)	15 A	65 °C	-30 ░C	SPDT	Black	No Marking
E-Switch R1966CBLKBLKGF	Concave (Curved)	On-On	10000 Cycles	125 V	Panel Mount Snap-In	30000 Steps	Quick Connect - 0.187" (4.7mm)	15 A	65 °C	-30 ░C	SPDT	Black	O I
E-Switch R1966CBLKBLKFF	Concave (Curved)	On-On	10000 Cycles	125 V	Panel Mount Snap-In	30000 Steps	Quick Connect - 0.187" (4.7mm)	15 A	65 °C	-30 ░C	SPDT	Black	O -

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Rocker Switch SPDT 15A (AC) 125 V Panel Mount, Snap-In

Technical documentation and resources

No documents available
