180-015-103L031

Active

MH Connectors

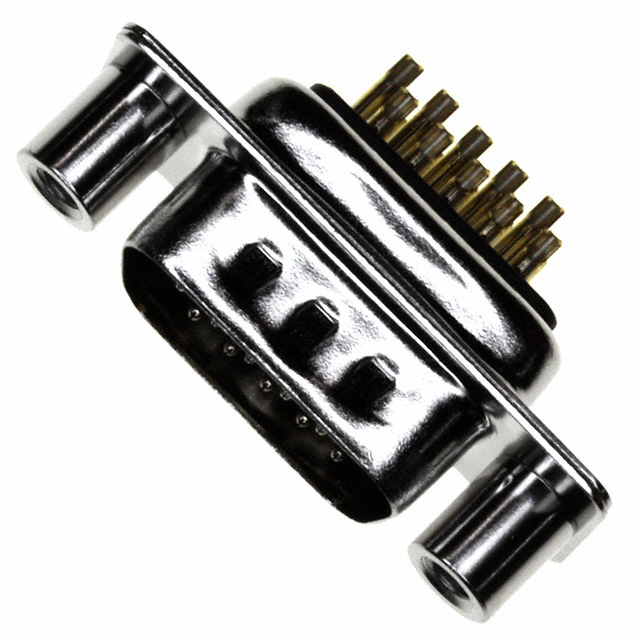

HD D SUB CONN, PLUG, 15POS, DE, SLDR CUP ROHS COMPLIANT: YES

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Backshell Reference Guide +1

180-015-103L031

Active

MH Connectors

HD D SUB CONN, PLUG, 15POS, DE, SLDR CUP ROHS COMPLIANT: YES

Deep-Dive with AI

DocumentsDatasheet Backshell Reference Guide +1

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	180-015-103L031

Connector Style	High Density, D-Sub
Connector Type	Plug, Male Pins
Contact Finish	Gold
Contact Finish Thickness	Flash
Contact Material	Brass
Contact Type	Signal
Current Rating (Amps)	5 A
Dielectric Material	Polybutylene Terephthalate (PBT)
Features	Grounding Indents, Shielded
Flange Feature	4-40
Material Flammability Rating	UL94 V-0
Number of Positions	15
Number of Rows	3
Shell Material, Finish	Nickel Plated, Steel
Shell Size, Connector Layout [custom]	DE, E
Shell Size, Connector Layout [custom]	1
Shell Size, Connector Layout [custom]	High Density

180-015 Series

Part	Number of Rows	Material Flammability Rating	Shell Material, Finish	Contact Finish	Connector Style	Contact Finish Thickness	Shell Size, Connector Layout [custom]	Shell Size, Connector Layout [custom]	Shell Size, Connector Layout [custom]	Contact Material	Dielectric Material	Features	Connector Type	Contact Type	Number of Positions	Current Rating (Amps)	Flange Feature	Color	Termination	Mounting Type
MH Connectors 180-015-101L021	3	UL94 V-0	Steel Yellow Chromate Plated	Gold	D-Sub High Density	Flash	DE E	1	High Density	Brass	Polybutylene Terephthalate (PBT)	Shielded	Male Pins Plug	Signal	15	5 A	Cable Side
MH Connectors 180-015-201L021	3	UL94 V-0	Steel Yellow Chromate Plated	Gold	D-Sub High Density	Flash	DE E	1	High Density	Brass	Polybutylene Terephthalate (PBT)	Shielded	Receptacle Female Sockets	Signal	15	5 A	Cable Side
MH Connectors 180-015-103L031	3	UL94 V-0	Nickel Plated Steel	Gold	D-Sub High Density	Flash	DE E	1	High Density	Brass	Polybutylene Terephthalate (PBT)	Grounding Indents Shielded	Male Pins Plug	Signal	15	5 A	4-40
MH Connectors 180-015-203L011	3	UL94 V-0	Nickel Plated Steel	Gold	D-Sub High Density	Flash	DE E	1	High Density	Brass	Polybutylene Terephthalate (PBT)	Shielded	Receptacle Female Sockets	Signal	15	5 A	Cable Side
MH Connectors 180-015-102L001	3	UL94 V-0		Gold	D-Sub High Density	Flash	DE E	1	High Density	Brass	Polybutylene Terephthalate (PBT)	Grounding Indents Shielded	Male Pins Plug	Signal	15	5 A	Housing/Shell (Unthreaded)
MH Connectors 180-015-102L021	3	UL94 V-0		Gold	D-Sub High Density	Flash	DE E	1	High Density	Brass	Polybutylene Terephthalate (PBT)	Grounding Indents Shielded	Male Pins Plug	Signal	15	5 A	Cable Side
MH Connectors 180-015-201L001	3	UL94 V-0	Steel Yellow Chromate Plated	Gold	D-Sub High Density	Flash	DE E	1	High Density	Brass	Polybutylene Terephthalate (PBT)	Shielded	Receptacle Female Sockets	Signal	15	5 A	Housing/Shell (Unthreaded)
MH Connectors 180-015-202-021	3	UL94 V-0		Gold	D-Sub High Density	Flash	DE E	1	High Density		Polybutylene Terephthalate (PBT)		Receptacle Female Sockets	Signal	15	2 A	Cable Side	Black
MH Connectors 180-015-112-001	3	UL94 V-0		Gold	D-Sub High Density	Flash	DE E	1	High Density		Polyester Glass Filled	Grounding Indents	Male Pins Plug	Signal	15	2 A	Housing/Shell (Unthreaded)	Black	Solder	Panel Mount Through Hole
MH Connectors 180-015-203L021	3	UL94 V-0	Nickel Plated Steel	Gold	D-Sub High Density	Flash	DE E	1	High Density	Brass	Polybutylene Terephthalate (PBT)	Shielded	Receptacle Female Sockets	Signal	15	5 A	Cable Side

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	1	$ 4.90
		10	$ 3.75
		25	$ 3.38
		40	$ 3.21
		80	$ 2.97
		230	$ 2.66
		440	$ 2.48
		945	$ 2.30
		2400	$ 2.10
Newark	Each	1	$ 3.76
		10	$ 3.07
		25	$ 2.84
		50	$ 2.66
		100	$ 2.50
		250	$ 2.36
		500	$ 2.23
		1000	$ 2.11

Description

General part information

180-015 Series

15 Position D-Sub, High Density Plug, Male Pins Connector
