SFW4R-1STE9LF

Obsolete

Amphenol ICC (FCI)

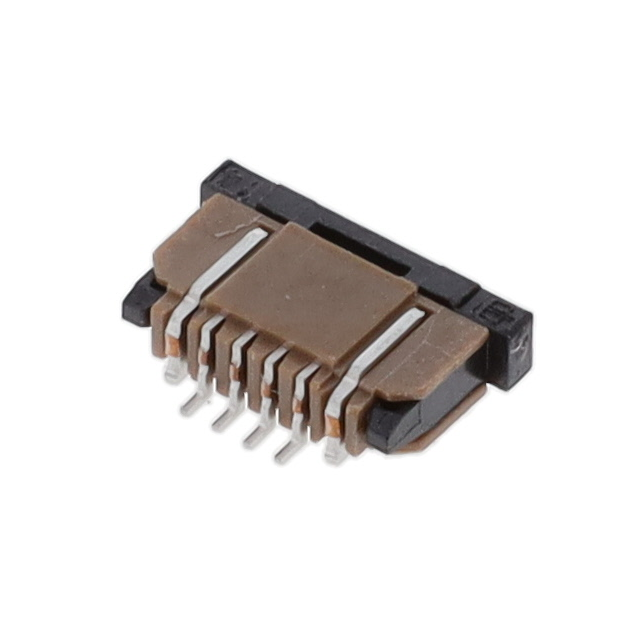

CONN FFC FPC BOTTOM 4POS 1MM R/A

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

SFW4R-1STE9LF

Obsolete

Amphenol ICC (FCI)

CONN FFC FPC BOTTOM 4POS 1MM R/A

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	SFW4R-1STE9LF

Actuator Color	Black
Actuator Material	Polyphenylene Sulfide (PPS), Glass Filled
Cable End Type	Tapered, Straight
Connector/Contact Type	Contacts, Bottom
Contact Finish	Tin
Contact Material	Phosphor Bronze
FFC, FCB Thickness [z]	0.33 mm, 0.3 mm
Flat Flex Type	FPC, FFC
Height Above Board [z]	0.106 in
Height Above Board [z]	2.7 mm
Housing Color	Brown
Housing Material	Polyphenylene Sulfide (PPS), Glass Filled
Locking Feature	Slide Lock
Material Flammability Rating	UL94 V-0
Mating Cycles	20
Mounting Type	Surface Mount, Right Angle
Number of Positions	4
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-55 °C
Pitch [x]	0.039 in
Pitch [x]	1 mm
Termination	Solder
Voltage Rating	100 V

SFW4R Series

Part	Cable End Type	Housing Material	Voltage Rating	Mounting Type	Pitch [x]	Pitch [x]	Actuator Material	Housing Color	Flat Flex Type	Actuator Color	Mating Cycles	Connector/Contact Type	Height Above Board [z]	Height Above Board [z]	Contact Finish	FFC, FCB Thickness [z]	Number of Positions	Material Flammability Rating	Locking Feature	Termination	Contact Material	Operating Temperature [Max]	Operating Temperature [Min]	FFC, FCB Thickness	Features
Amphenol ICC (FCI) SFW4R-1STE9LF	Straight Tapered	Polyphenylene Sulfide (PPS) Glass Filled	100 V	Surface Mount Right Angle	0.039 in	1 mm	Polyphenylene Sulfide (PPS) Glass Filled	Brown	FFC FPC	Black	20	Contacts Bottom	0.106 in	2.7 mm	Tin	0.3 mm 0.33 mm	4	UL94 V-0	Slide Lock	Solder	Phosphor Bronze	105 ░C	-55 °C
Amphenol ICC (FCI) SFW4R-2STGE1LF	Straight Tapered	Polyphenylene Sulfide (PPS) Glass Filled	100 V	Surface Mount Right Angle	0.039 in	1 mm	Polyphenylene Sulfide (PPS) Glass Filled	Brown	FPC		20	Contacts Top	0.106 in	2.7 mm	Gold		4	UL94 V-0		Kinked Pin	Phosphor Bronze	105 ░C	-55 °C	0.3 mm
Amphenol ICC (FCI) SFW4R-1STAE1HLF				Surface Mount Right Angle	0.039 in	1 mm											4			Solder
Amphenol ICC (FCI) SFW4R-3STE1HLF	Notched	Polyphenylene Sulfide (PPS) Glass Filled Halogen Free		Surface Mount Right Angle	0.039 in	1 mm	Polyphenylene Sulfide (PPS) Glass Filled Halogen Free	Gray	FFC FPC	Gray		Contacts Bottom	0.106 in	2.7 mm	Tin	0.3 mm 0.33 mm	4	UL94 V-0	Slide Lock	Solder	Phosphor Bronze
Amphenol ICC (FCI) SFW4R-1STAE5LF	Tapered	Polyphenylene Sulfide (PPS) Glass Filled		Surface Mount Right Angle	0.039 in	1 mm	Polyphenylene Sulfide (PPS) Glass Filled	Brown	FPC	Black		Contacts Bottom	0.106 in	2.7 mm	Gold		4	UL94 V-0	Slide Lock	Solder	Phosphor Bronze			0.33 mm
Amphenol ICC (FCI) SFW4R-2STRE1LF	Straight	Polyphenylene Sulfide (PPS) Glass Filled	100 V	Surface Mount Right Angle	0.039 in	1 mm						Contacts Top	0.106 in	2.7 mm	Tin		4		Slide Lock	Solder		105 ░C	-55 °C	0.33 mm
Amphenol ICC (FCI) SFW4R-2STRE1				Surface Mount Right Angle	0.039 in	1 mm						Contacts Top	0.106 in	2.7 mm			4		Slide Lock	Solder
Amphenol ICC (FCI) SFW4R-1STE1LF	Straight Tapered	Polyphenylene Sulfide (PPS) Glass Filled	100 V	Surface Mount Right Angle	0.039 in	1 mm	Polyphenylene Sulfide (PPS) Glass Filled	Brown	FFC FPC	Black	20	Contacts Bottom	0.106 in	2.7 mm	Tin	0.3 mm 0.33 mm	4	UL94 V-0	Slide Lock	Solder	Phosphor Bronze	105 ░C	-55 °C		Solder Retention Zero Insertion Force (ZIF)
Amphenol ICC (FCI) SFW4R-5STE1LF	Straight Tapered	Polyphenylene Sulfide (PPS) Glass Filled	100 V	Surface Mount Right Angle	0.039 in	1 mm	Polyphenylene Sulfide (PPS) Glass Filled	Brown	CIC		10	Contacts Bottom	0.106 in	2.7 mm	Tin		4	UL94 V-0		Kinked Pin	Phosphor Bronze	105 ░C	-55 °C	0.3 mm
Amphenol ICC (FCI) SFW4R-2STE1	Straight Tapered	Polyphenylene Sulfide (PPS) Glass Filled		Surface Mount Right Angle	0.039 in	1 mm	Polyphenylene Sulfide (PPS) Glass Filled	Brown	FFC FPC	Black		Contacts Top	0.106 in	2.7 mm	Tin Alloy	0.3 mm 0.33 mm	4	UL94 V-0	Slide Lock	Solder	Phosphor Bronze
