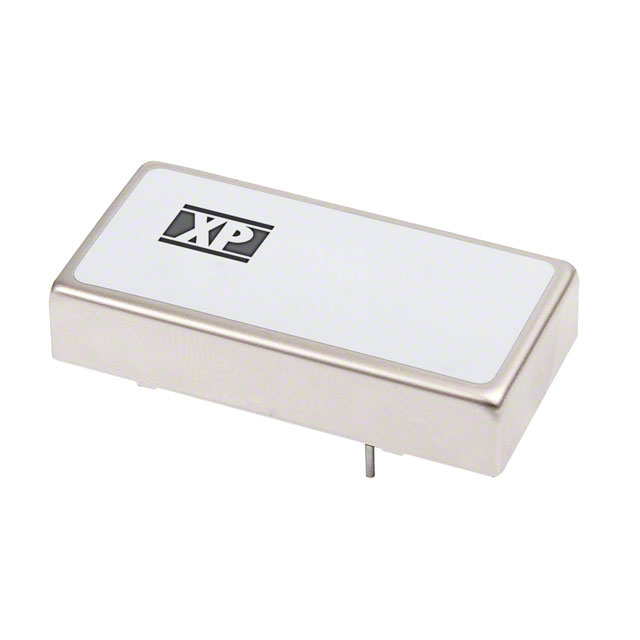

JCK3048D05

Active

XP POWER

DC DC CONVERTER +/-5V 30W

Search across all available documentation for this part.

Active

XP POWER

DC DC CONVERTER +/-5V 30W

Technical Specifications

Parameters and characteristics for this part

Part	Power (Watts)	Control Features	Mounting Type	Number of Outputs	Efficiency	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - Isolation	Type	Voltage - Input (Min) [Min]	Applications	Features	Voltage - Input (Max) [Max]	Current - Output (Max)	Current - Output (Max)	Package / Case	Voltage - Output 2	Voltage - Output 1	Current - Output (Max) [Max]	Current - Output (Max) [Max]
XP POWER JCK3048D15	30 W	Active High Enable	Through Hole	2	90 %	25.4 mm	0.4 "	2 in	10.2 mm	50.8 mm	25.4 mm	100 °C	-40 °C	1.6 kV	Isolated Module	36 V	ITE (Commercial)	OCP OVP Remote On/Off SCP UVLO	75 V	1 A	1 A	6-DIP Module	-15 V	15 V
XP POWER JCK3048D05	30 W	Active High Enable	Through Hole	2	90 %	25.4 mm	0.4 "	2 in	10.2 mm	50.8 mm	25.4 mm	100 °C	-40 °C	1.6 kV	Isolated Module	36 V	ITE (Commercial)	OCP OVP Remote On/Off SCP UVLO	75 V			6-DIP Module	-5 V	5 V	3 A	3 A
XP POWER JCK3048S05	30 W	Active High Enable	Through Hole	1	91 %	25.4 mm	0.4 "	2 in	10.2 mm	50.8 mm	25.4 mm	100 °C	-40 °C	1.6 kV	Isolated Module	36 V	ITE (Commercial)	OCP OVP Remote On/Off SCP UVLO	75 V			6-DIP Module		5 V		6 A

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Isolated Module DC DC Converter 2 Output 5V -5V 3A, 3A 36V - 75V Input
