KUEP-3D15-125

Active

TE Connectivity Potter & Brumfield Relays

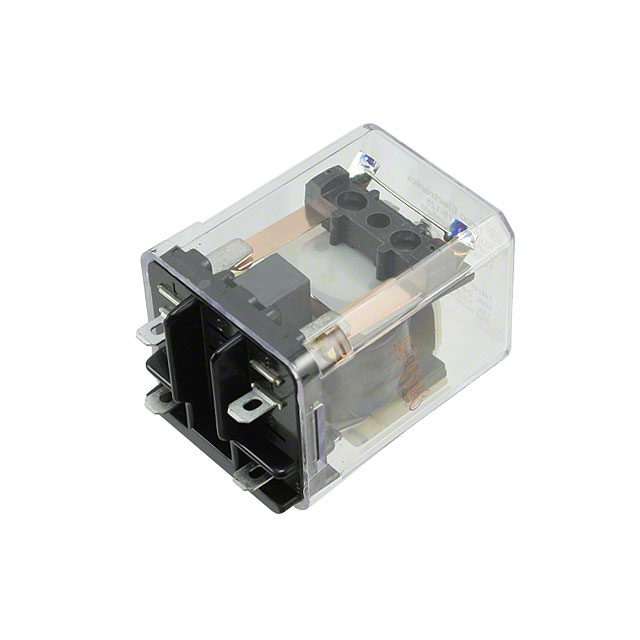

RELAY GEN PURPOSE SPST 10A 125V

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

KUEP-3D15-125

Active

TE Connectivity Potter & Brumfield Relays

RELAY GEN PURPOSE SPST 10A 125V

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	KUEP-3D15-125

Approval Agency	CSA, UR
Coil Current	9.6 mA
Coil Insulation	Class B
Coil Resistance	13.02 kOhms
Coil Type	Non Latching
Coil Voltage	125 VDC
Contact Form	SPST-NO (DM) (1 Form X)
Contact Material	Silver Cadmium Oxide (AgCdO)
Contact Rating (Current)	10 A
Load - Max Switching	1500 VA
Mounting Type	Socketable
Must Operate Voltage	93.75 VDC
Operate Time	15 ms
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-45 °C
Relay Type	General Purpose
Release Time	10 ms
Switching Voltage	150 VDC
Termination Style	Plug In, Quick Connect - 0.187" (4.7mm)

KUEP-3D Series

Part	Coil Insulation	Release Time	Coil Resistance	Contact Form	Relay Type	Operate Time	Coil Voltage	Contact Rating (Current)	Load - Max Switching	Approval Agency	Coil Current	Operating Temperature [Min]	Operating Temperature [Max]	Must Operate Voltage	Mounting Type	Coil Type	Contact Material	Switching Voltage	Termination Style
TE Connectivity Potter & Brumfield Relays KUEP-3D15-12	Class B	10 ms	120 Ohms	SPST-NO (DM) (1 Form X)	General Purpose	15 ms	12 VDC	10 A	1500 VA	CSA UR	100 mA	-45 °C	70 °C	9 VDC	Socketable	Non Latching	Silver Cadmium Oxide (AgCdO)	150 VDC	Plug In Quick Connect - 0.187" (4.7mm)
TE Connectivity Potter & Brumfield Relays KUEP-3DT5-24	Class B	10 ms	472 Ohms	SPST-NO (DM) (1 Form X)	General Purpose	15 ms	24 VDC	10 A	1500 VA	CSA UR	51 mA	-45 °C	70 °C	18 VDC	Chassis Mount	Non Latching	Silver Cadmium Oxide (AgCdO)	150 VDC	Quick Connect - 0.187" (4.7mm)
TE Connectivity Potter & Brumfield Relays KUEP-3D15-125	Class B	10 ms	13.02 kOhms	SPST-NO (DM) (1 Form X)	General Purpose	15 ms	125 VDC	10 A	1500 VA	CSA UR	9.6 mA	-45 °C	70 °C	93.75 VDC	Socketable	Non Latching	Silver Cadmium Oxide (AgCdO)	150 VDC	Plug In Quick Connect - 0.187" (4.7mm)
TE Connectivity Potter & Brumfield Relays 1393114-4	Class B	10 ms		SPST-NO (DM) (1 Form X)	General Purpose	15 ms	48 VDC	10 A			26.7 mA	-45 °C	70 °C	36 VDC	Through Hole	Non Latching	Silver Cadmium Oxide (AgCdO)	150 VDC	PC Pin
TE Connectivity Potter & Brumfield Relays KUEP-3D17-48	Class B	10 ms		SPST-NO (DM) (1 Form X)	General Purpose	15 ms	48 VDC	10 A	1500 VA	CSA UR	26.7 mA	-45 °C	70 °C	36 VDC	Through Hole	Non Latching	Silver Cadmium Oxide (AgCdO)	150 VDC	PC Pin
TE Connectivity Potter & Brumfield Relays KUEP-3D35-24	Class B	10 ms	472 Ohms	SPST-NO (DM) (1 Form X)	General Purpose	15 ms	24 VDC	10 A	1500 VA	CSA UR	51 mA	-45 °C	70 °C	18 VDC	Socketable	Non Latching	Silver Cadmium Oxide (AgCdO)	150 VDC	Plug In Quick Connect - 0.187" (4.7mm)
