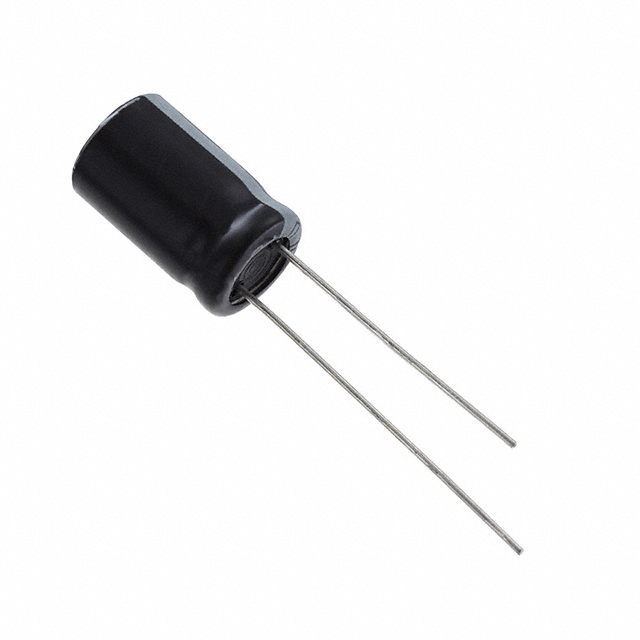

ESL106M200AG9AA

Active

KEMET

CAP ALUM 10UF 20% 200V RADIAL TH

Search across all available documentation for this part.

Active

KEMET

CAP ALUM 10UF 20% 200V RADIAL TH

Technical Specifications

Parameters and characteristics for this part

Specification	ESL106M200AG9AA

Applications	General Purpose
Capacitance	10 µF
ESR (Equivalent Series Resistance)	3.65 Ohm
Height - Seated (Max)	14 mm
Height - Seated (Max) [Max]	0.551 "
Lead Spacing	3.5 mm
Lead Spacing	0.138 in
Lifetime @ Temp.	10000 Hrs
Mounting Type	Through Hole
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Package / Case	Radial, Can
Polarization	Polar
Ripple Current @ High Frequency	175 mA
Ripple Current @ Low Frequency	87.5 mA
Size / Dimension [diameter]	0.315 "
Size / Dimension [diameter]	8 mm
Tolerance	20 %
Voltage - Rated	200 V

Part	Mounting Type	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Lifetime @ Temp.	Operating Temperature [Min]	Operating Temperature [Max]	Applications	Ripple Current @ Low Frequency	Ripple Current @ High Frequency	ESR (Equivalent Series Resistance)	Lead Spacing	Lead Spacing	Package / Case	Polarization	Voltage - Rated	Size / Dimension [diameter]	Size / Dimension [diameter]	Tolerance	Capacitance	Height - Seated (Max)
KEMET ESL106M050AC3AA	Through Hole	0.492 in	12.5 mm	8000 Hrs	-40 °C	105 ░C	General Purpose	92.5 mA	185 mA	1.35 Ohm	2 mm	0.079 in	Radial Can	Polar	50 VDC	5 mm	0.197 "	20 %	10 µF
KEMET ESL106M200AG9AA	Through Hole	0.551 "		10000 Hrs	-40 °C	105 ░C	General Purpose	87.5 mA	175 mA	3.65 Ohm	3.5 mm	0.138 in	Radial Can	Polar	200 V	8 mm	0.315 "	20 %	10 µF	14 mm
KEMET ESL106M100AE3AA	Through Hole	0.492 in	12.5 mm	8000 Hrs	-40 °C	105 ░C	General Purpose	140 mA	280 mA	680 mOhm	2.5 mm	0.098 in	Radial Can	Polar	100 V	6.3 mm	0.248 in	20 %	10 µF

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

10 µF 200 V Aluminum Electrolytic Capacitors Radial, Can 3.65Ohm @ 100kHz 10000 Hrs @ 105°C

Technical documentation and resources
