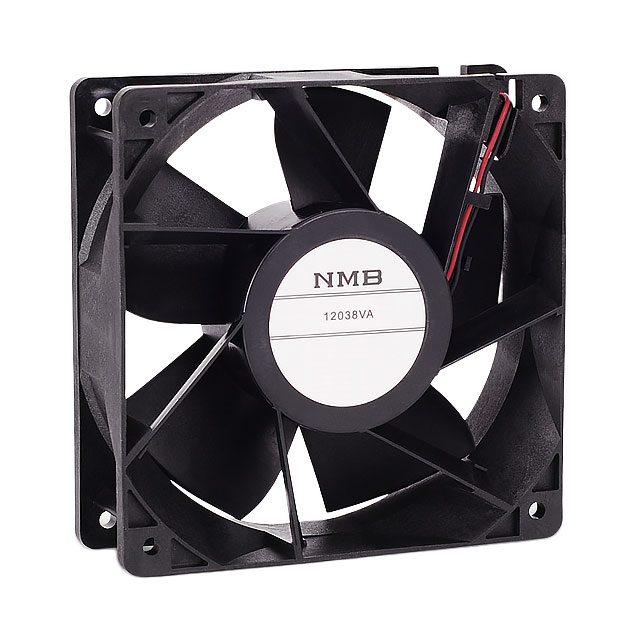

Specification	12038VA-48L-ET-00

Approval Agency	CSA, UL, CE, VDE
Bearing Type	Ball
Fan Type	Tubeaxial
Features	Speed Sensor (Tach)
Lifetime	100000 Hrs
Material - Blade	Plastic
Material - Frame	Plastic
Operating Temperature (Max)	158 °F
Operating Temperature (Min)	14 °F
Size / Dimension Height	120 mm
Size / Dimension Length	120 mm
Size / Dimension Shape	Square
Termination	3 Wire Leads
Termination Leads Count	3
Termination Type	Wire Leads
Voltage - Rated	48 VDC
Weight	0.816 lb
Width	38 mm

12038VA Series

Part	Lifetime	Material - Frame	Material - Blade	Weight	Voltage - Rated	Fan Type	Termination Leads Count	Termination Type	Termination	Width	Operating Temperature (Max)	Operating Temperature (Min)	Features	Approval Agency	Bearing Type	Size / Dimension Height	Size / Dimension Shape	Size / Dimension Length	Voltage Range (Min)	Voltage Range (Max)	Current Rating	Air Flow	RPM	Static Pressure	Noise	Power (Watts)	Ingress Protection Description	Ingress Protection IP Rating
NMB TECHNOLOGIES 12038VA-48L-ET-00	100000 Hrs	Plastic	Plastic	0.816 lb	48 VDC	Tubeaxial	3	Wire Leads	3 Wire Leads	38 mm	158 °F	14 °F	Speed Sensor (Tach)	CE CSA UL VDE	Ball	120 mm	Square	120 mm
NMB TECHNOLOGIES 12038VA-24P-EA-00	40000 Hrs	Plastic	Plastic		24 VAC	Tubeaxial	2 leads	Wire Leads	2 Wire Leads	38 mm	140 °F	14 °F	Auto Restart		Ball	120 mm	Square	120 mm	18 VDC	27.6 VDC	0.74 A	189 CFM	5000 RPM	0.94 in H2O	60 dB	17.8 W
NMB TECHNOLOGIES 12038VA-12Q-EAE-0					12 VAC	Tubeaxial	2 leads	Wire Leads	2 Wire Leads	38 mm	158 °F	14 °F	Auto Restart		Ball	120 mm	Square	120 mm				215.7 CFM	5700 RPM	1.15 in H2O	63 dB	27 W
NMB TECHNOLOGIES 12038VA-24Q-EL-00					24 VAC	Tubeaxial	3	Wire Leads	3 Wire Leads	38 mm	158 °F	14 °F	Auto Restart Locked Rotor Sensor		Ball	120 mm	Square	120 mm				215.7 CFM	5700 RPM	1.15 in H2O	63 dB	24.96 W	Dust Tight High Temp Water Jets Waterproof	IP69K
NMB TECHNOLOGIES 12038VA-24L-EL-00	100000 Hrs	Plastic	Plastic	0.816 lb	24 VAC	Tubeaxial	3	Wire Leads	3 Wire Leads	38 mm	158 °F	14 °F	Locked Rotor Sensor	CE CSA UL VDE	Ball	120 mm	Square	120 mm
NMB TECHNOLOGIES 12038VA-12R-EA-00	100000 Hrs	Plastic	Plastic		12 VAC	Tubeaxial	2 leads	Wire Leads	2 Wire Leads	38 mm	140 °F	14 °F	Auto Restart		Ball	120 mm	Square	120 mm	10 VDC	13.8 VDC	3 A	243.2 CFM	6400 RPM	1.46 in H2O	66 dB	36 W
NMB TECHNOLOGIES 12038VA-24N-EA-00	100000 Hrs	Plastic	Plastic	0.816 lb	24 VAC	Tubeaxial	2 leads	Wire Leads	2 Wire Leads	38 mm	158 °F	14 °F		CE CSA UL VDE	Ball	120 mm	Square	120 mm	18 VDC	27.6 VDC	760 mA	182.4 CFM	4700 RPM			18.24 W
NMB TECHNOLOGIES 12038VA-24R-FU-06	40000 Hrs	Plastic	Plastic		24 VAC	Tubeaxial	4 leads	Wire Leads	4 Wire Leads	38 mm	140 °F	14 °F	Auto Restart PWM Control Speed Sensor (Tach)	CE cULus VDE	Ball	120 mm	Square	120 mm	18 VDC	27.6 VDC	1.48 A	243.7 CFM	6400 RPM	1.5 in H2O	64 dB	35.52 W
NMB TECHNOLOGIES 12038VA-24R-GA-00		Plastic	Plastic	0.816 lb	24 VAC	Tubeaxial	2 leads	Wire Leads	2 Wire Leads	38 mm	140 °F	14 °F			Ball	120 mm	Square	120 mm	18 VDC	27.6 VDC	1.48 A	243.7 CFM	6400 RPM	1.48 in H2O	64 dB	35.5 W	Dust Tight High Temp Water Jets Waterproof	IP69K
NMB TECHNOLOGIES 12038VA-24M-EA-00	100000 Hrs	Plastic	Plastic	0.816 lb	24 VAC	Tubeaxial	2 leads	Wire Leads	2 Wire Leads	38 mm	158 °F	14 °F		CE CSA UL VDE	Ball	120 mm	Square	120 mm
