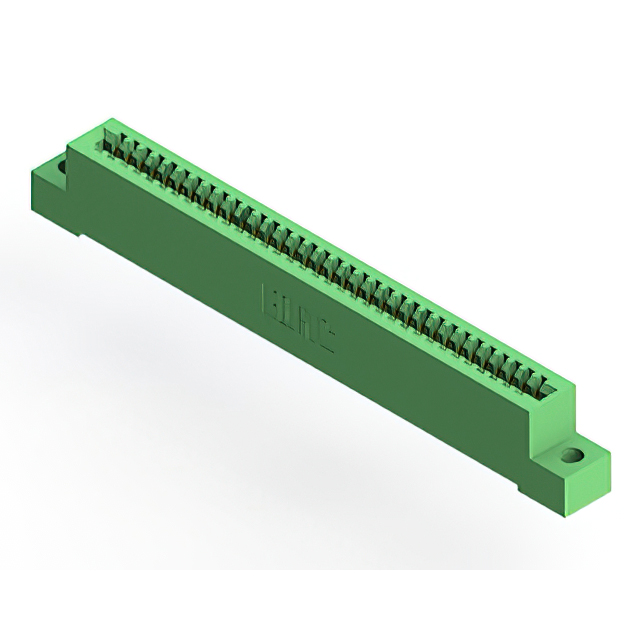

842-034-524-104

Active

EDAC Inc.

CONN EDGE SINGLE FML 34POS 0.100

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

842-034-524-104

Active

EDAC Inc.

CONN EDGE SINGLE FML 34POS 0.100

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	842-034-524-104

Card Thickness [Max]	1.78 mm
Card Thickness [Max]	0.07 in
Card Thickness [Min]	1.37 mm
Card Thickness [Min]	0.054 "
Card Type	Non Specified - Single Edge
Color	Green
Contact Finish	Gold
Contact Finish Thickness	10 Áin
Contact Finish Thickness	0.25 Ám
Contact Material	Copper Alloy
Contact Type	Cantilever
Flange Feature	Flush Mount, Top Opening, Unthreaded
Flange Feature [diameter]	3.96 mm
Flange Feature [diameter]	0.156 in
Gender	Female
Material - Insulation	Diallyl Phthalate (DAP)
Mounting Type	Through Hole
Number of Positions	34
Number of Positions/Bay/Row [custom]	34
Number of Rows	1
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Pitch [x]	2.54 mm
Pitch [x]	0.1 in
Read Out	Single
Termination	Solder
Termination Rows	1

842-034 Series

...

Part	Flange Feature [diameter]	Flange Feature	Flange Feature [diameter]	Contact Finish Thickness	Contact Finish Thickness	Contact Type	Material - Insulation	Read Out	Pitch [x]	Pitch [x]	Number of Positions	Mounting Type	Operating Temperature [Max]	Operating Temperature [Min]	Contact Finish	Termination	Gender	Number of Rows	Termination Rows	Contact Material	Card Type	Color	Card Thickness [Min]	Card Thickness [Min]	Card Thickness [Max]	Card Thickness [Max]	Number of Positions/Bay/Row [custom]	Features
EDAC Inc. 842-034-542-203	0.116 in	Floating Bobbin Flush Mount	2.95 mm	10 Áin	0.25 Ám	Cantilever	Diallyl Phthalate (DAP)	Dual	2.54 mm	0.1 in	34	Through Hole	125 °C	-40 °C	Gold	Wire Wrap	Female	2	2	Copper Alloy	Non Specified - Dual Edge	Green	1.37 mm	0.054 "	1.78 mm	0.07 in
EDAC Inc. 842-034-541-208		4-40 Flush Mount Threaded Insert Top Opening		10 Áin	0.25 Ám	Cantilever	Diallyl Phthalate (DAP)	Dual	2.54 mm	0.1 in	34	Through Hole	125 °C	-40 °C	Gold	Wire Wrap	Female	2	2	Copper Alloy	Non Specified - Dual Edge	Green	1.37 mm	0.054 "	1.78 mm	0.07 in
EDAC Inc. 842-034-542-208		4-40 Flush Mount Threaded Insert Top Opening		10 Áin	0.25 Ám	Cantilever	Diallyl Phthalate (DAP)	Dual	2.54 mm	0.1 in	34	Through Hole	125 °C	-40 °C	Gold	Wire Wrap	Female	2	2	Copper Alloy	Non Specified - Dual Edge	Green	1.37 mm	0.054 "	1.78 mm	0.07 in
EDAC Inc. 842-034-524-104	0.156 in	Flush Mount Top Opening Unthreaded	3.96 mm	10 Áin	0.25 Ám	Cantilever	Diallyl Phthalate (DAP)	Single	2.54 mm	0.1 in	34	Through Hole	125 °C	-40 °C	Gold	Solder	Female	1	1	Copper Alloy	Non Specified - Single Edge	Green	1.37 mm	0.054 "	1.78 mm	0.07 in	34
EDAC Inc. 842-034-500-207		Flush Mount M3 Threaded Insert Top Opening		10 Áin	0.25 Ám	Cantilever	Diallyl Phthalate (DAP)	Dual	2.54 mm	0.1 in	34	Through Hole	125 °C	-40 °C	Gold	Solder Eyelet(s)	Female	2	2	Copper Alloy	Non Specified - Dual Edge	Green	1.37 mm	0.054 "	1.78 mm	0.07 in
EDAC Inc. 842-034-542-202	0.128 "	Flush Mount Top Opening Unthreaded	3.25 mm	10 Áin	0.25 Ám	Cantilever	Diallyl Phthalate (DAP)	Dual	2.54 mm	0.1 in	34	Through Hole	125 °C	-40 °C	Gold	Wire Wrap	Female	2	2	Copper Alloy	Non Specified - Dual Edge	Green	1.37 mm	0.054 "	1.78 mm	0.07 in
EDAC Inc. 842-034-541-204	0.156 in	Flush Mount Top Opening Unthreaded	3.96 mm	10 Áin	0.25 Ám	Cantilever	Diallyl Phthalate (DAP)	Dual	2.54 mm	0.1 in	34	Through Hole	125 °C	-40 °C	Gold	Wire Wrap	Female	2	2	Copper Alloy	Non Specified - Dual Edge	Green	1.37 mm	0.054 "	1.78 mm	0.07 in
EDAC Inc. 842-034-540-203	0.116 in	Floating Bobbin Flush Mount	2.95 mm	10 Áin	0.25 Ám	Cantilever	Diallyl Phthalate (DAP)	Dual	2.54 mm	0.1 in	34	Through Hole	125 °C	-40 °C	Gold	Wire Wrap	Female	2	2	Copper Alloy	Non Specified - Dual Edge	Green	1.37 mm	0.054 "	1.78 mm	0.07 in
EDAC Inc. 842-034-556-208		4-40 Flush Mount Threaded Insert Top Opening		10 Áin	0.25 Ám	Cantilever	Diallyl Phthalate (DAP)	Dual	2.54 mm	0.1 in	34	Board Edge Straddle Mount	125 °C	-40 °C	Gold	Solder	Female	2	2	Copper Alloy	Non Specified - Dual Edge	Green	1.37 mm	0.054 "	1.78 mm	0.07 in		Card Extender
EDAC Inc. 842-034-524-101				10 Áin	0.25 Ám	Cantilever	Diallyl Phthalate (DAP)	Single	2.54 mm	0.1 in	34	Through Hole	125 °C	-40 °C	Gold	Solder	Female	1	1	Copper Alloy	Non Specified - Single Edge	Green	1.37 mm	0.054 "	1.78 mm	0.07 in	34

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	25	$ 111.51
Newark	Each	1	$ 128.73
		100	$ 103.91
		250	$ 95.45
		500	$ 87.14
		1000	$ 72.63

Description

General part information

842-034 Series

34 Position Female Connector Non Specified - Single Edge Gold 0.100" (2.54mm) Green

Documents

Technical documentation and resources
