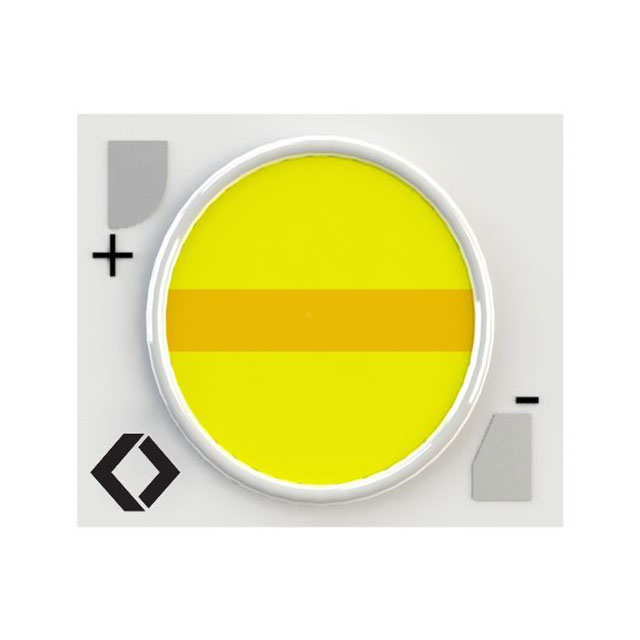

COB-WD-10-1512-30K-18K-90

Active

Luxtech, LLC

LED COB WARM WHT RECT 3000K

Search across all available documentation for this part.

Active

Luxtech, LLC

LED COB WARM WHT RECT 3000K

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	COB-WD-10-1512-30K-18K-90	COB-WD Series

CCT (K) [Max]	3000 K	3000 K
CCT (K) [Min]	1800 K	1800 K
Color	White, Warm	White, Warm
Configuration	Rectangle	Rectangle
CRI (Color Rendering Index)	90	90
Current - Max [Max]	385 mA	1.05 - 385 mA
Current - Test	350 mA	350 - 950 mA
Height [z]	1.5 mm	1.5 - 1.6 mm
Lens Type	Flat	Flat
Light Emitting Surface (LES) [diameter]	10 mm	10 - 17 mm
Lumens/Watt @ Current - Test	98 lm/W	98 - 110 lm/W
Luminous Flux @ Current/Temperature	1220 lm	1220 - 3600 lm
Size / Dimension [x]	15 mm	15 - 23.9 mm
Size / Dimension [y]	12 mm	12 - 19.9 mm
Type	Chip On Board (COB)	Chip On Board (COB)
Voltage - Forward (Vf) (Typ)	36 V	34.5 - 36 V

LED COB WARM WHT RECT 3000K

Part	Size / Dimension [y]	Size / Dimension [x]	Height [z]	Configuration	Type	Color	CRI (Color Rendering Index)	Light Emitting Surface (LES) [diameter]	Voltage - Forward (Vf) (Typ)	Current - Max [Max]	Current - Test	Luminous Flux @ Current/Temperature	Lumens/Watt @ Current - Test	Lens Type	CCT (K) [Max]	CCT (K) [Min]
Luxtech, LLC COB-WD-10-1512-30K-18K-90	12 mm	15 mm	1.5 mm	Rectangle	Chip On Board (COB)	Warm, White	90	10 mm	36 V	385 mA	350 mA	1220 lm	98 lm/W	Flat	3000 K	1800 K
Luxtech, LLC COB-WD-17-2420-30K-18K-90	19.9 mm	23.9 mm	1.6 mm	Rectangle	Chip On Board (COB)	Warm, White	90	17 mm	34.5 V	1.05 A	950 mA	3600 lm	110 lm/W	Flat	3000 K	1800 K

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

LED Lighting COBs Engines Modules Chip On Board (COB) - White, Warm Rectangle
