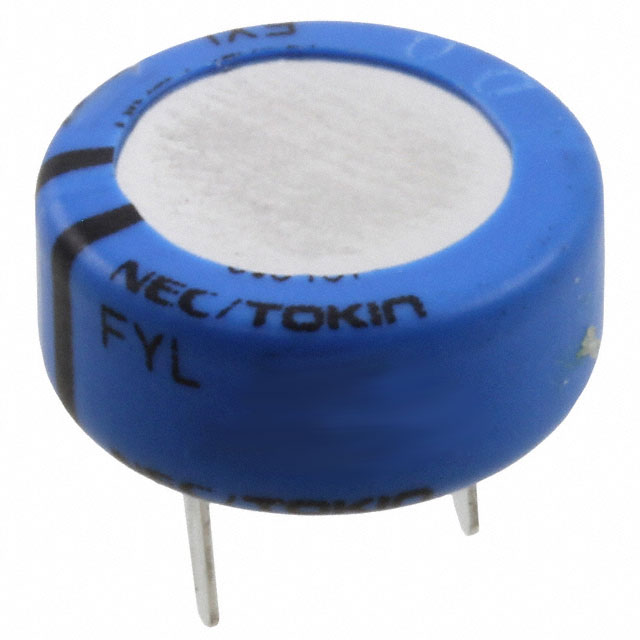

FYL0H103ZF
ActiveSUPERCAPACITOR, 10000 ΜF, 5.5 V, PC PIN, -20%, +80%, 5.08 MM, 1000 HOURS @ 70°C
Deep-Dive with AI
Search across all available documentation for this part.
FYL0H103ZF
ActiveSUPERCAPACITOR, 10000 ΜF, 5.5 V, PC PIN, -20%, +80%, 5.08 MM, 1000 HOURS @ 70°C
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | FYL0H103ZF |
|---|---|
| Capacitance | 10000 µF |
| ESR (Equivalent Series Resistance) | 300 Ohm |
| Height - Seated (Max) [Max] | 0.217 in |
| Height - Seated (Max) [Max] | 5.5 mm |
| Lead Spacing | 5.08 mm |
| Lead Spacing | 0.2 in |
| Mounting Type | Through Hole |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Min] | -25 °C |
| Package / Case | Radial, Can |
| Size / Dimension [diameter] | 11 mm |
| Size / Dimension [diameter] | 0.433 " |
| Termination | PC Pins |
| Tolerance [Max] | 80 % |
| Tolerance [Min] | -20 % |
| Voltage - Rated | 5.5 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
FYL0H Series
FY Series Supercapacitors, also known as Electric Double Layer Capacitors (EDLCs), are intended for high energy storage applications. This supercapacitor has characteristics ranging from traditional capacitors and batteries. As a result, it can be used like a secondary battery when applied in a DC circuit. This device is best suited for use in low voltage DC hold-up applications such as embedded microprocessor systems with flash memory.
