50M030050D035

Active

Essentra Access Solutions

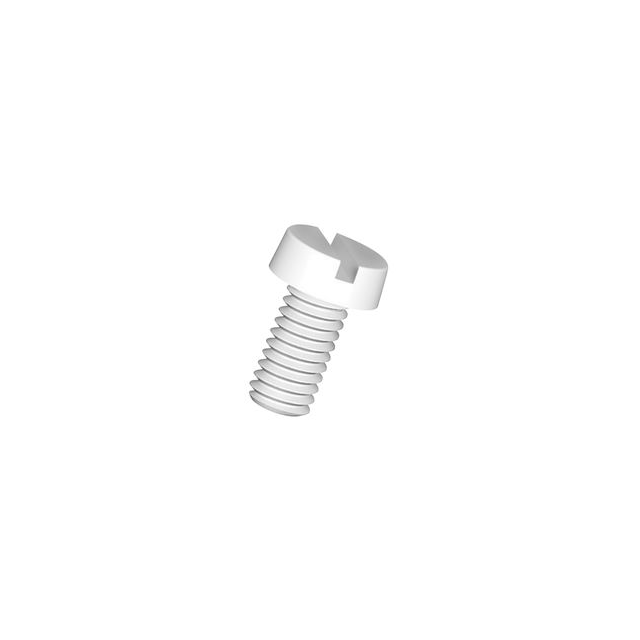

CHEESE SLOTTED SCREW, M3 X .5 TH

Deep-Dive with AI

Search across all available documentation for this part.

50M030050D035

Active

Essentra Access Solutions

CHEESE SLOTTED SCREW, M3 X .5 TH

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	50M030050D035

Drive Type	Slotted
Head Diameter [diameter]	5.5 mm
Head Diameter [diameter]	0.217 "
Head Height [z]	2 mm
Head Height [z]	0.079 in
Length - Overall [x]	37 mm
Length - Overall [x]	1.457 in
Material	Nylon
Screw Head Type	Cheese Head
Thread Size	M3x0.5
Type	Bolt

50M030050 Series

...

Part	Thread Size	Material	Length - Below Head	Length - Below Head	Length - Overall [x]	Length - Overall [x]	Head Diameter [diameter]	Head Diameter [diameter]	Drive Type	Type	Screw Head Type	Head Height [z]	Head Height [z]	Head Height	Head Height	Length - Below Head [x]	Length - Below Head [x]	Head Diameter [diameter]	Length - Overall	Length - Below Head [custom]	Length - Below Head [custom]
Essentra Access Solutions 50M030050K004	M3x0.5	Nylon	0.157 in	4 mm	0.248 in	6.3 mm	0.197 "	5 mm	Slotted	Bolt	Hex Head
Essentra Access Solutions 50M030050D035	M3x0.5	Nylon			1.457 in	37 mm	0.217 "	5.5 mm	Slotted	Bolt	Cheese Head	2 mm	0.079 in
Essentra Access Solutions 50M030050T020	M3x0.5	Nylon	0.787 in	20 mm	1.003 in	25.48 mm	0.317 in	8.05 mm	Slotted	Thumb Screw	Knob			5.48 mm	0.216 in
Essentra Access Solutions 50M030050D010	M3x0.5	Nylon			0.472 in	12 mm	0.217 "	5.5 mm	Slotted	Bolt	Cheese Head	2 mm	0.079 in			10 mm	0.394 in
Essentra Access Solutions 50M030050D012	M3x0.5	Nylon			0.551 "	14 mm	0.217 "	5.5 mm	Slotted	Bolt	Cheese Head	2 mm	0.079 in			12 mm	0.472 in
Essentra Access Solutions 50M030050T016	M3x0.5	Nylon	0.63 in	16 mm	0.846 "	21.48 mm	0.317 in	8.05 mm	Slotted	Thumb Screw	Knob			5.48 mm	0.216 in
Essentra Access Solutions 50M030050M008	M3x0.5	Nylon			0.343 in	8.7 mm	0.248 "	6.3 mm	Phillips	Machine Screw	Oval Head			2.4 mm	0.094 in	6.3 mm	0.248 in	1/4"
Essentra Access Solutions 50M030050H015	M3x0.5	Nylon			0.591 in		0.248 "	6.3 mm	Slotted	Machine Screw	Flat Head			1.7 mm	0.067 in			1/4"	15 mm	13.3 mm	0.524 in
Essentra Access Solutions 50M030050J025	M3x0.5	Nylon			1.075 in	27.3 mm	0.197 "	5 mm	Hex Socket	Bolt	Hex Head					25 mm	0.984 "
Essentra Access Solutions 50M030050J004	M3x0.5	Nylon	0.157 in	4 mm	0.248 in	6.3 mm	0.197 "	5 mm	Hex Socket	Bolt	Hex Head

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 0.16
		5	$ 0.14
		10	$ 0.12
		25	$ 0.10
		50	$ 0.10
		100	$ 0.09
		250	$ 0.08
		500	$ 0.08
		1000	$ 0.07

Description

General part information

50M030050 Series

M3x0.5 Cheese Head Bolt Slotted Drive Nylon

Documents

Technical documentation and resources

No documents available
