C3606.41.01

Active

Prysmian Group

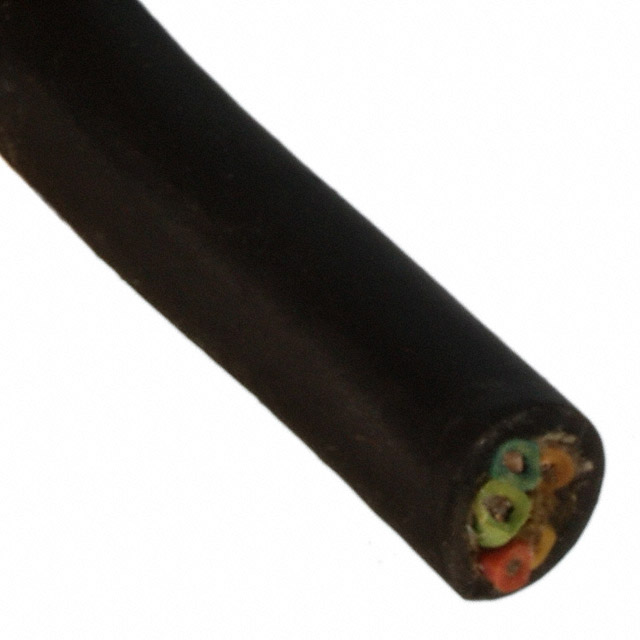

CABLE 6COND 20AWG BLACK 1000'

Search across all available documentation for this part.

Active

Prysmian Group

CABLE 6COND 20AWG BLACK 1000'

Technical Specifications

Parameters and characteristics for this part

Specification	C3606.41.01

Cable Type	Multi-Conductor
Conductor Insulation	Rubber
Conductor Material	Copper, Tinned
Conductor Strand	34 AWG, 26
Jacket (Insulation) Material	Rubber
Jacket (Insulation) Thickness	0.889 mm
Jacket (Insulation) Thickness	0.035 in
Jacket Color	Black
Length	1000 ft
Length	304.8 m
Number of Conductors	6
Operating Temperature [Max]	60 °C
Operating Temperature [Min]	-20 C
Usage	Control, Communication
Voltage	350 V
Wire Gauge	20 AWG

Part	Cable Type	Voltage	Conductor Material	Jacket (Insulation) Material	Operating Temperature [Min]	Operating Temperature [Max]	Wire Gauge	Number of Conductors	Conductor Strand	Usage	Length	Length	Conductor Insulation	Jacket Color	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness
Prysmian Group C3606.41.01	Multi-Conductor	350 V	Copper Tinned	Rubber	-20 C	60 °C	20 AWG	6	26 34 AWG	Communication Control	1000 ft	304.8 m	Rubber	Black	0.889 mm	0.035 in

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

6 Conductor Multi-Conductor Cable Black 20 AWG 1000.0' (304.8m)

Technical documentation and resources

No documents available
