1-1437581-4

Active

TE Connectivity Raychem Cable Protection

SWITCH SLIDE 4PDT 0.3A 115V

Search across all available documentation for this part.

Active

TE Connectivity Raychem Cable Protection

SWITCH SLIDE 4PDT 0.3A 115V

Technical Specifications

Parameters and characteristics for this part

Part	Switch Travel	Actuator Length [x]	Voltage Rating - AC	Mechanical Life	Actuator Type	Operating Temperature [Min]	Operating Temperature [Max]	Operating Force	Electrical Life	Contact Material	Circuit	Switch Function	Contact Finish	Contact Timing	Actuator Material	Termination Style	Mounting Type	Current Rating (Amps)
TE Connectivity Raychem Cable Protection 1-1437581-1	2.79 mm	2.67 mm	115 V	15000 Cycles	Standard	-40 °C	80 C	950 gf	15000 Cycles	Copper Alloy	DPDT	On-On	Silver	Shorting	Nylon 4/6 Polyamide (PA46)	Gull Wing	Surface Mount Right Angle	300 mA
TE Connectivity Raychem Cable Protection 4-1437581-7	2.54 mm	5.84 mm	115 V	15000 Cycles	Standard	-40 °C	80 C	800 gf	15000 Cycles		4P3T	On-On-On		Shorting		PC Pin	Through Hole Right Angle	300 mA
TE Connectivity Raychem Cable Protection 1-1437581-4	2.79 mm	2.79 mm	115 V	15000 Cycles	Standard	-40 °C	80 C	950 gf	15000 Cycles	Copper Alloy	4PDT	On-On	Silver	Shorting	Nylon 4/6 Polyamide (PA46)	PC Pin	Through Hole	300 mA

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

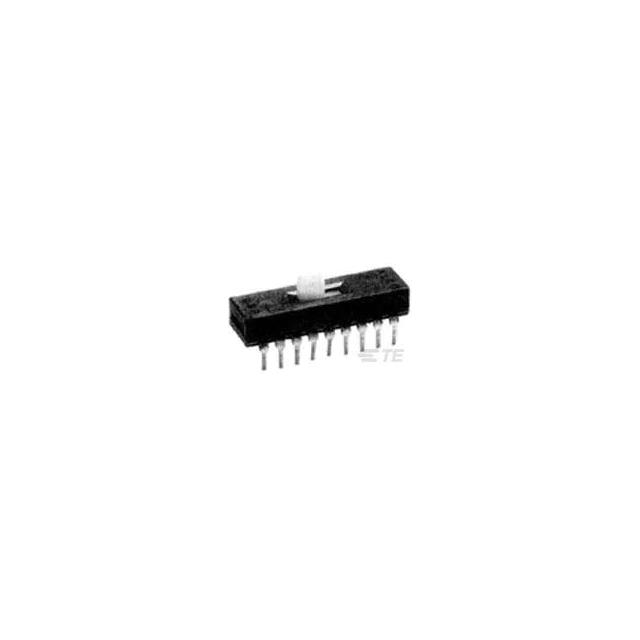

Slide Switch 4PDT Through Hole

Technical documentation and resources

No documents available
