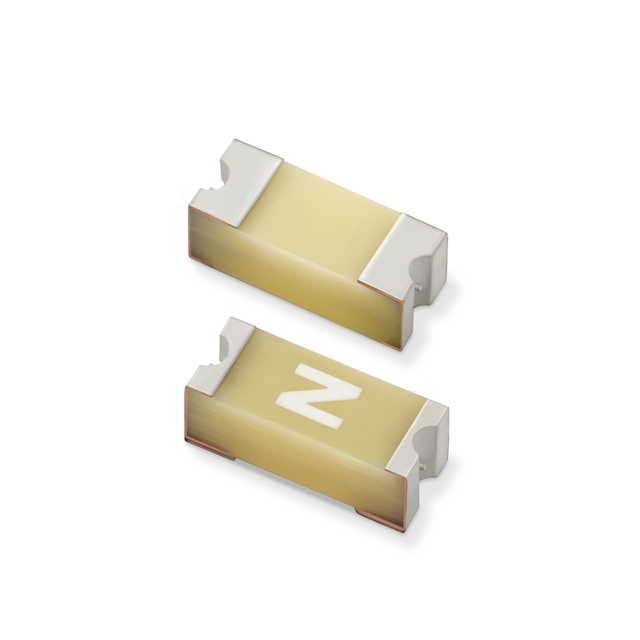

0422001.MRA
ActiveFUSE BRD MT 1A 250VAC/VDC 2410
0422001.MRA
ActiveFUSE BRD MT 1A 250VAC/VDC 2410
Description
General part information
422001A Series
The 422A is a 250 V rated Wire-in-Air Surface Mount AEC-Q200 Qualified fuse are specifically tested to cater to secondary circuit protection needs of compact auto electronics applications. The wire-in-air design of the 422A Series results in a relatively high I²t in a 2410 size. * Largely based on Littelfuse internal AEC-Q200 test plan for DC application.
Technical Specifications
Parameters and characteristics for this part
| Specification | 0422001.MRA |
|---|---|
| Approval Agency | PSE, TUV, cURus, AEC-Q200 |
| Breaking Capacity | 50 A |
| Current Rating | 1 A |
| DC Cold Resistance | 0.0994 Ohms |
| Fuse Type | Board Mount (Cartridge Style Excluded) |
| Melting I²t | 0.611 |
| Mounting Type | Surface Mount |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -55 °C |
| Package / Case | Concave, 2410 (6125 Metric) |
| Response Time | Fast Blow |
| Size / Dimension Height | 0.088 in |
| Size / Dimension Length | 0.246 in |
| Size / Dimension Width | 0.098 in |
| Voltage Rating - AC | 250 V |
| Voltage Rating - DC | 250 VDC |
