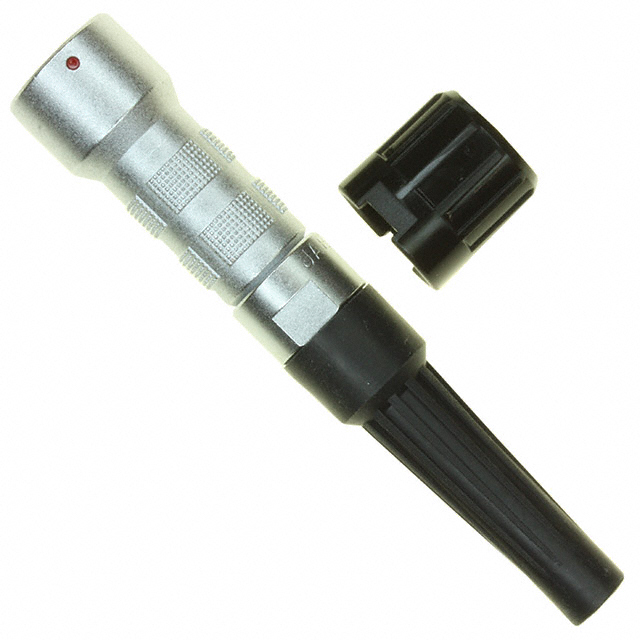

JB5HS08FN11

Obsolete

JAE Electronics

CONN RCPT FMALE 8POS SOLDER CUP

Search across all available documentation for this part.

Obsolete

JAE Electronics

CONN RCPT FMALE 8POS SOLDER CUP

Technical Specifications

Parameters and characteristics for this part

Specification	JB5HS08FN11

Applications	Telecommunications, Medical, Test & Measurement
Connector Type	Receptacle, Female Sockets
Contact Finish - Mating	Gold
Current Rating (Amps)	2 A
Fastening Type	Push-Pull
Ingress Protection	IP68 - Dust Tight, Waterproof
Mounting Type	Free Hanging (In-Line)
Number of Positions	8
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-55 °C
Orientation	Keyed
Primary Material	Metal
Shell Finish	Chromium
Shell Material	Copper Alloy
Shell Size - Insert	S
Shielding	Shielded

Part	Shell Finish	Current Rating (Amps)	Orientation	Primary Material	Number of Positions	Mounting Type	Applications	Operating Temperature [Max]	Operating Temperature [Min]	Shell Size - Insert	Fastening Type	Shielding	Contact Finish - Mating	Ingress Protection	Connector Type	Shell Material
JAE Electronics JB5HS08FN11	Chromium	2 A	Keyed	Metal	8	Free Hanging (In-Line)	Medical Telecommunications Test & Measurement	85 °C	-55 °C	S	Push-Pull	Shielded	Gold	IP68 - Dust Tight Waterproof	Receptacle Female Sockets	Copper Alloy
JAE Electronics JB5HS08FN11-RK

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

8 Position Circular Connector Receptacle, Female Sockets Solder Cup
