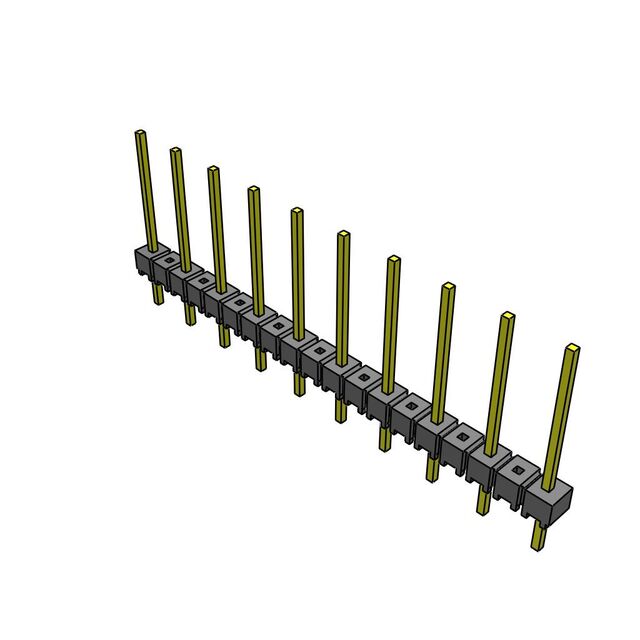

MTSW-210-09-T-S-490

Active

Samtec Inc.

CONN HEADER VERT 10POS 5.08MM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsMTSW Datasheet Datasheet +1

MTSW-210-09-T-S-490

Active

Samtec Inc.

CONN HEADER VERT 10POS 5.08MM

Deep-Dive with AI

DocumentsMTSW Datasheet Datasheet +1

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	MTSW-210-09-T-S-490

Connector Type	Cuttable, Header
Contact Finish - Post	Tin
Contact Length - Mating	0.49 in
Contact Length - Mating	12.45 mm
Contact Length - Post [x]	3.56 mm
Contact Length - Post [x]	0.14 in
Contact Material	Phosphor Bronze
Contact Shape	Square
Contact Type	Male Pin
Current Rating (Amps)	3 A
Fastening Type	Push-Pull
Insulation Color	Black
Insulation Height	0.1 in
Insulation Height	2.54 mm
Insulation Material	Polyester, Glass Filled
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions	10
Number of Positions Loaded	All
Number of Rows	1
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-55 °C
Overall Contact Length	0.73 in
Overall Contact Length	18.54 mm
Pitch - Mating	5.08 mm
Pitch - Mating	0.2 in
Shrouding	Unshrouded
Style	Board to Board, Cable
Termination	Solder

MTSW-210 Series

Part	Style	Contact Finish - Post	Operating Temperature [Max]	Operating Temperature [Min]	Contact Shape	Number of Rows	Insulation Material	Insulation Color	Insulation Height	Insulation Height	Pitch - Mating	Pitch - Mating	Contact Length - Post	Contact Length - Post	Fastening Type	Material Flammability Rating	Shrouding	Termination	Number of Positions	Connector Type	Current Rating (Amps)	Overall Contact Length	Overall Contact Length	Contact Material	Contact Length - Mating	Contact Length - Mating	Contact Type	Number of Positions Loaded	Mounting Type	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Contact Finish - Mating	Contact Length - Post [x]	Contact Length - Post [x]	Insulation Height [custom]	Insulation Height [custom]	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Contact Length - Mating
Samtec Inc. MTSW-210-08-T-S-340	Board to Board Cable	Tin	105 ░C	-55 °C	Square	1	Polyester Glass Filled	Black	0.1 in	2.54 mm	5.08 mm	0.2 in	0.09 "	2.29 mm	Push-Pull	UL94 V-0	Unshrouded	Solder	10	Cuttable Header	3 A	13.46 mm	0.53 in	Phosphor Bronze	0.34 in	8.64 mm	Male Pin	All	Through Hole
Samtec Inc. MTSW-210-08-L-S-280	Board to Board Cable	Tin	125 °C	-55 °C	Square	1	Polyester Glass Filled	Black	0.1 in	2.54 mm	5.08 mm	0.2 in			Push-Pull	UL94 V-0	Unshrouded	Solder	10	Cuttable Header	3 A	13.46 mm	0.53 in	Phosphor Bronze	0.28 in	7.11 mm	Male Pin	All	Through Hole	10 çin	0.25 çm	Gold	0.15 in	3.81 mm
Samtec Inc. MTSW-210-11-G-S-630-RA	Board to Board Cable	Gold	125 °C	-55 °C	Square	1	Polyester Glass Filled	Black			5.08 mm	0.2 in	0.09 "	2.29 mm	Push-Pull	UL94 V-0	Unshrouded	Solder	10	Cuttable Header	3 A			Phosphor Bronze	0.63 in	16 mm	Male Pin	All	Through Hole Right Angle	10 çin	0.25 çm	Gold			0.119 in	3.02 mm	3 µin	0.076 µm
Samtec Inc. MTSW-210-12-G-S-730-RA	Board to Board Cable	Gold	125 °C	-55 °C	Square	1	Polyester Glass Filled	Black			5.08 mm	0.2 in	0.09 "	2.29 mm	Push-Pull	UL94 V-0	Unshrouded	Solder	10	Cuttable Header	3 A			Phosphor Bronze	0.73 in	18.54 mm	Male Pin	All	Through Hole Right Angle	10 çin	0.25 çm	Gold			0.119 in	3.02 mm	3 µin	0.076 µm
Samtec Inc. MTSW-210-09-T-S-430-RA	Board to Board Cable	Tin	105 ░C	-55 °C	Square	1	Polyester Glass Filled	Black			5.08 mm	0.2 in	0.09 "	2.29 mm	Push-Pull	UL94 V-0	Unshrouded	Solder	10	Cuttable Header	3 A			Phosphor Bronze		0.43 in	Male Pin	All	Through Hole Right Angle						0.119 in	3.02 mm			10.92 mm
Samtec Inc. MTSW-210-07-T-S-130-RA	Board to Board Cable	Tin	105 ░C	-55 °C	Square	1	Polyester Glass Filled	Black			5.08 mm	0.2 in	0.09 "	2.29 mm	Push-Pull	UL94 V-0	Unshrouded	Solder	10	Cuttable Header	3 A			Phosphor Bronze	0.13 in	3.3 mm	Male Pin	All	Through Hole Right Angle						0.119 in	3.02 mm
Samtec Inc. MTSW-210-09-T-S-490	Board to Board Cable	Tin	105 ░C	-55 °C	Square	1	Polyester Glass Filled	Black	0.1 in	2.54 mm	5.08 mm	0.2 in			Push-Pull	UL94 V-0	Unshrouded	Solder	10	Cuttable Header	3 A	18.54 mm	0.73 in	Phosphor Bronze	0.49 in	12.45 mm	Male Pin	All	Through Hole				0.14 in	3.56 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 2.04
		50	$ 1.58
		100	$ 1.28
		500	$ 1.09
		1000	$ 1.01

Description

General part information

MTSW-210 Series

Connector Header Through Hole 10 position 0.200" (5.08mm)

Documents

Technical documentation and resources

MTSW Datasheet

Datasheet
