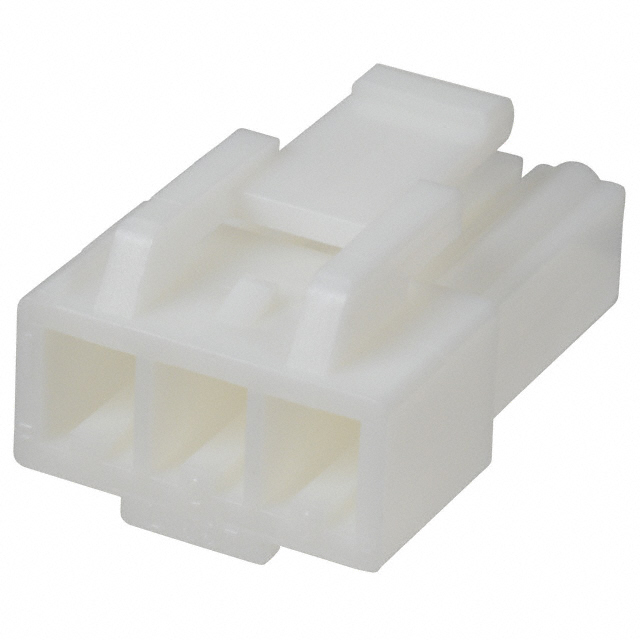

HLP-03V

Active

JST Sales America Inc.

CONN PLUG HSG 3POS 3.96MM

Search across all available documentation for this part.

Active

JST Sales America Inc.

CONN PLUG HSG 3POS 3.96MM

Technical Specifications

Parameters and characteristics for this part

Part	Pitch [x]	Pitch [x]	Connector Type	Insulation Material	Number of Rows	Fastening Type	Mounting Type	Operating Temperature [Max]	Operating Temperature [Min]	Color	Note	Contact Termination	Contact Type	Row Spacing	Row Spacing	Number of Positions
JST Sales America Inc. HLP-03V	0.156 in	3.96 mm	Plug	Polyamide (PA66) Nylon 6/6	1	Latch Lock	Free Hanging (In-Line)	90 °C	-25 °C	White	Contacts Not Included	Crimp	Female Socket
JST Sales America Inc. HLP-08V	0.156 in	3.96 mm	Plug	Polyamide (PA66) Nylon 6/6	2	Latch Lock	Free Hanging (In-Line)	90 °C	-25 °C	White	Contacts Not Included	Crimp	Female Socket	0.156 in	3.96 mm	8
JST Sales America Inc. HLP-04V	0.156 in	3.96 mm	Plug	Polyamide (PA66) Nylon 6/6	2	Latch Lock	Free Hanging (In-Line)	90 °C	-25 °C	White	Contacts Not Included	Crimp	Female Socket	0.156 in	3.96 mm	4
JST Sales America Inc. HLP-02V	0.156 in	3.96 mm	Plug	Polyamide (PA66) Nylon 6/6	1	Latch Lock	Free Hanging (In-Line)	90 °C	-25 °C	White	Contacts Not Included	Crimp	Female Socket			2

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

3 Rectangular Connectors - Housings Plug White 0.156" (3.96mm)
