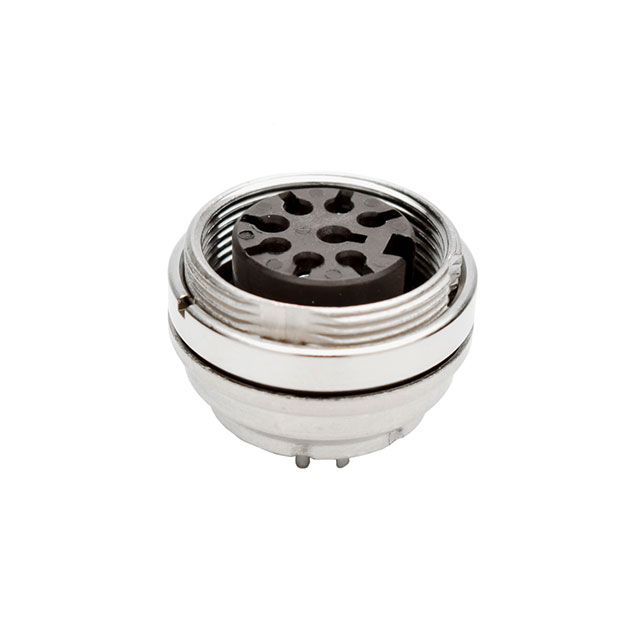

C091 61G008 110 2
ActiveAmphenol Tuchel Industrial
CONN RCPT FMALE 8P SILVER SOLDER
Deep-Dive with AI
Search across all available documentation for this part.
C091 61G008 110 2
ActiveAmphenol Tuchel Industrial
CONN RCPT FMALE 8P SILVER SOLDER
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | C091 61G008 110 2 |
|---|---|
| Color | Silver |
| Connector Type | Receptacle, Female Sockets |
| Contact Finish - Mating | Silver |
| Current Rating (Amps) | 7 A |
| Ingress Protection | IP69K, IP65, IP67 |
| Mounting Type | Through Hole, Panel Mount |
| Number of Positions | 8 |
| Operating Temperature [Max] | 100 °C |
| Operating Temperature [Min] | -40 °C |
| Orientation | Keyed |
| Primary Material | Metal |
| Shell Finish | Nickel |
| Shell Material | Die Cast |
| Shell Size - Insert | M16-8 |
| Shielding | Shielded |
| Termination | Solder |
| Voltage Rating | 60 VDC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 9.00 | |
| 10 | $ 7.97 | |||
| 25 | $ 7.67 | |||
| 50 | $ 7.36 | |||
| 105 | $ 7.20 | |||
Description
General part information
C091 61G008 Series
8 Position Circular Connector Receptacle, Female Sockets Solder
