DS9092L+
ActiveAnalog Devices Inc./Maxim Integrated

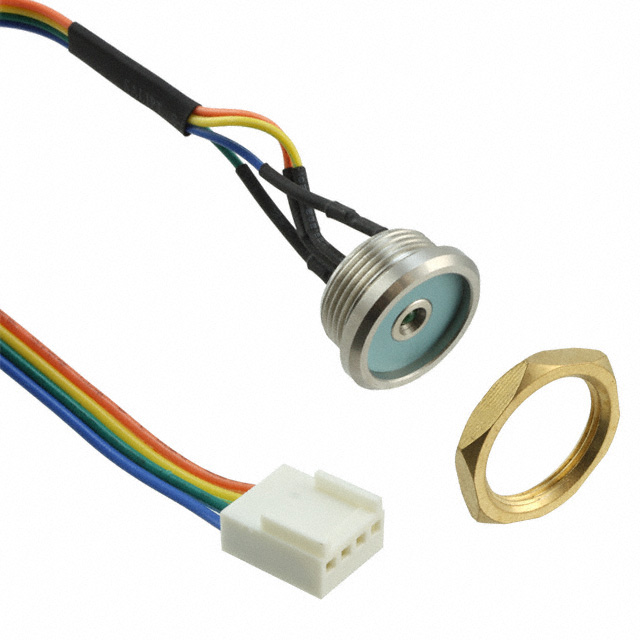

IBUTTON PROBE PANEL MOUNT W/LED
Deep-Dive with AI
Search across all available documentation for this part.
DS9092L+
ActiveAnalog Devices Inc./Maxim Integrated
IBUTTON PROBE PANEL MOUNT W/LED
Deep-Dive with AI
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | DS9092L+ | DS9092 Series |
|---|---|---|
| - | - | |
| Accessory Type | Probe Driver, Probe Receiver | iButton Reader/Probe, Probe Driver, Probe Receiver |
| Card Type | - | iButton |
| Connector Type | - | Retainer, Probe Assembly |
| For Use With/Related Products | iButton® | iButton® |
| Height Above Board | - | 10.1 mm |
| Height Above Board | - | 0.398 in |
| Insertion, Removal Method | - | Pull Out, Push In |
| Number of Positions | - | 2 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 20.93 | |
| 10 | $ 18.58 | |||
| 25 | $ 17.72 | |||
| 50 | $ 17.10 | |||
| 100 | $ 16.49 | |||
| 250 | $ 15.72 | |||
| 500 | $ 15.16 | |||
DS9092 Series
CONN IBUTTON CARD PUSH-PULL
| Part | Accessory Type | For Use With/Related Products | Number of Positions | Connector Type | Card Type | Insertion, Removal Method | Height Above Board [z] | Height Above Board [z] |
|---|---|---|---|---|---|---|---|---|
Analog Devices Inc./Maxim Integrated DS9092GT# | iButton Reader/Probe | iButton® | ||||||
Analog Devices Inc./Maxim Integrated DS9092-1+ | iButton Reader/Probe | iButton® | ||||||
Analog Devices Inc./Maxim Integrated DS9092L+ | Probe Driver, Probe Receiver | iButton® | ||||||
Analog Devices Inc./Maxim Integrated DS9092-2+ | 2 | Probe Assembly, Retainer | iButton | Pull Out, Push In | 10.1 mm | 0.398 in | ||
Analog Devices Inc./Maxim Integrated DS9092R+ | ||||||||
Analog Devices Inc./Maxim Integrated DS9092RG+ | ||||||||
Analog Devices Inc./Maxim Integrated DS9092T# | Probe Driver, Probe Receiver | iButton® | ||||||
Analog Devices Inc./Maxim Integrated DS9092+ | Probe Driver, Probe Receiver | iButton® | ||||||
Analog Devices Inc./Maxim Integrated DS9092K# |
Description
General part information
DS9092 Series
Connector Probe Driver, Probe Receiver For iButton®
