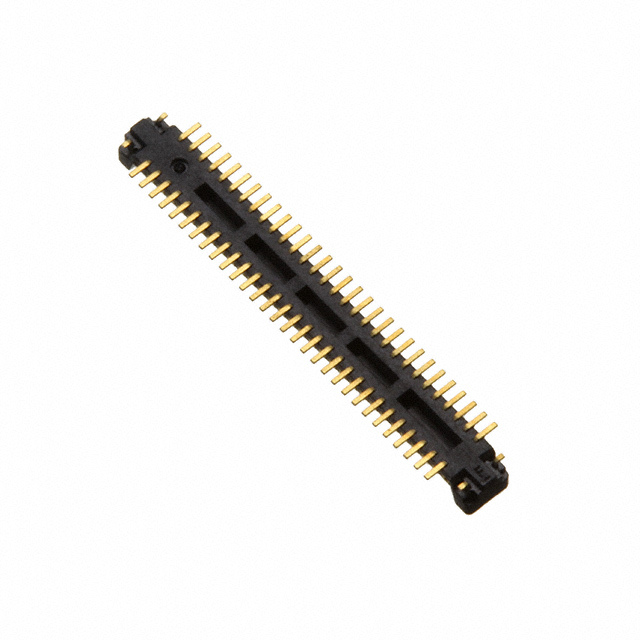

AXF6G6012A

Active

Panasonic Electric Works

CONN HDR 60POS SMD GOLD

Search across all available documentation for this part.

Active

Panasonic Electric Works

CONN HDR 60POS SMD GOLD

Technical Specifications

Parameters and characteristics for this part

Specification	AXF6G6012A

Connector Type	Header, Outer Shroud Contacts
Contact Finish	Gold
Features	Solder Retention
Height Above Board	0.049 in
Height Above Board	1.25 mm
Mated Stacking Heights	1.5 mm
Mounting Type	Surface Mount
Number of Positions	60
Number of Rows	2
Pitch [x]	0.016 in
Pitch [x]	0.4 mm

Part	Mounting Type	Mated Stacking Heights	Contact Finish	Pitch [x]	Pitch [x]	Connector Type	Number of Positions	Features	Number of Rows	Height Above Board	Height Above Board
Panasonic Electric Works AXF6G6012A	Surface Mount	1.5 mm	Gold	0.016 in	0.4 mm	Header Outer Shroud Contacts	60	Solder Retention	2	0.049 in	1.25 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

60 Position Connector Header, Outer Shroud Contacts Surface Mount Gold
