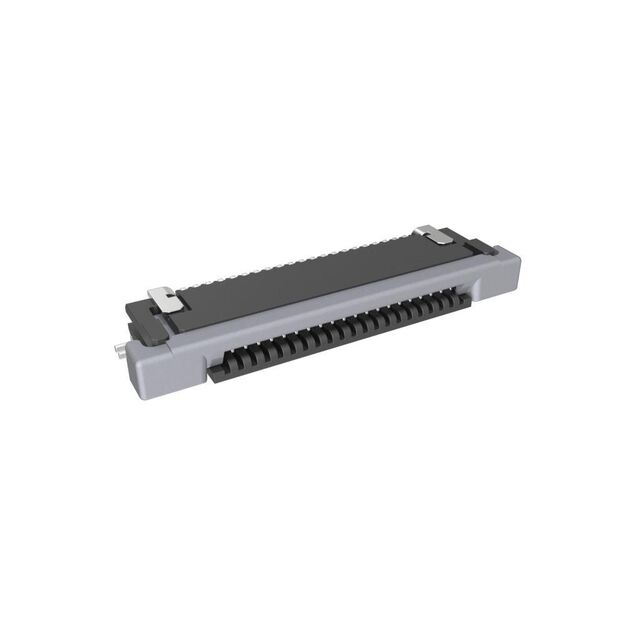

SFV21R-3STE1HLF

Active

Amphenol ICC (FCI)

CONN FPC BOTTOM 21POS 0.5MM R/A

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsSFV8R-4STBE1HLF fci basics ffc fpc productpresentation Other Related Document +2

SFV21R-3STE1HLF

Active

Amphenol ICC (FCI)

CONN FPC BOTTOM 21POS 0.5MM R/A

Deep-Dive with AI

DocumentsSFV8R-4STBE1HLF fci basics ffc fpc productpresentation Other Related Document +2

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	SFV21R-3STE1HLF

Actuator Color	Black
Actuator Material	Polyphenylene Sulfide (PPS), Glass Filled, Halogen Free
Cable End Type	Tapered, Straight
Connector/Contact Type	Contacts, Bottom
Contact Finish	Tin
Contact Material	Phosphor Bronze
Current Rating (Amps)	0.5 A
FFC, FCB Thickness [z]	0.33 mm, 0.3 mm
Flat Flex Type	FPC
Height Above Board	1.8 mm
Height Above Board	0.071 in
Housing Color	Black
Housing Material	Glass Filled, Halogen Free, Liquid Crystal Polymer (LCP)
Locking Feature	Slide Lock
Material Flammability Rating	UL94 V-0
Mating Cycles	20
Mounting Type	Surface Mount, Right Angle
Number of Positions	21
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-55 °C
Pitch [x]	0.5 mm
Pitch [x]	0.02 in
Termination	Solder
Voltage Rating	50 V

SFV21R Series

Part	Termination	Mounting Type	Housing Material	Current Rating (Amps)	Housing Color	Actuator Material	Contact Finish	FFC, FCB Thickness	Pitch [x]	Pitch [x]	Material Flammability Rating	Features	Number of Positions	Height Above Board	Height Above Board	Mating Cycles	Cable End Type	Operating Temperature [Max]	Operating Temperature [Min]	Flat Flex Type	Actuator Color	Locking Feature	Contact Material	Connector/Contact Type	Voltage Rating	FFC, FCB Thickness [z]
Amphenol ICC (FCI) SFV21R-3STBE1HLF	Solder	Surface Mount Right Angle	Glass Filled Halogen Free Liquid Crystal Polymer (LCP)	0.5 A	Black	Polyphenylene Sulfide (PPS) Glass Filled Halogen Free	Gold	0.3 mm	0.5 mm	0.02 in	UL94 V-0	Solder Retention Zero Insertion Force (ZIF)	21	1.8 mm	0.071 in	20	Notched or Tabbed	105 ░C	-55 °C	FPC	Black	Flip Lock	Phosphor Bronze	Contacts Bottom	50 V
Amphenol ICC (FCI) SFV21R-2STE1	Solder	Surface Mount Right Angle	Polyamide (PA) Nylon Glass Filled	0.5 A	Black	Polyphenylene Sulfide (PPS) Glass Filled	Tin Alloy		0.5 mm	0.02 in	UL94 V-0	Solder Retention Zero Insertion Force (ZIF)	21	1.8 mm	0.071 in	20	Straight Tapered	105 ░C	-55 °C	FFC FPC	Brown	Slide Lock	Phosphor Bronze	Contacts Top	50 V	0.3 mm 0.33 mm
Amphenol ICC (FCI) SFV21R-4STE1HLF	Solder	Surface Mount Right Angle	Glass Filled Halogen Free Liquid Crystal Polymer (LCP)	0.5 A	Black	Polyphenylene Sulfide (PPS) Glass Filled Halogen Free	Tin		0.5 mm	0.02 in	UL94 V-0		21	1.8 mm	0.071 in	20	Notched	105 ░C	-55 °C	FPC	Brown	Slide Lock	Phosphor Bronze	Contacts Top	50 V	0.3 mm 0.33 mm
Amphenol ICC (FCI) SFV21R-1STE1HLF	Solder	Surface Mount Right Angle	Glass Filled Halogen Free Liquid Crystal Polymer (LCP)	0.5 A	Black	Polyphenylene Sulfide (PPS) Glass Filled Halogen Free	Tin	0.3 mm	0.5 mm	0.02 in	UL94 V-0		21	1.8 mm	0.071 in	20	Tapered	105 ░C	-55 °C	FFC FPC	Beige	Slide Lock	Phosphor Bronze	Contacts Bottom	50 V
Amphenol ICC (FCI) SFV21R-2STBE1HLF	Solder	Surface Mount Right Angle	Glass Filled Halogen Free Liquid Crystal Polymer (LCP)	0.5 A	Black	Polyphenylene Sulfide (PPS) Glass Filled Halogen Free	Gold	0.33 mm	0.5 mm	0.02 in	UL94 V-0		21	1.8 mm	0.071 in	20	Tapered	105 ░C	-55 °C	FFC FPC	Brown	Slide Lock	Phosphor Bronze	Contacts Top	50 V
Amphenol ICC (FCI) SFV21R-3STE1HLF	Solder	Surface Mount Right Angle	Glass Filled Halogen Free Liquid Crystal Polymer (LCP)	0.5 A	Black	Polyphenylene Sulfide (PPS) Glass Filled Halogen Free	Tin		0.5 mm	0.02 in	UL94 V-0		21	1.8 mm	0.071 in	20	Straight Tapered	105 ░C	-55 °C	FPC	Black	Slide Lock	Phosphor Bronze	Contacts Bottom	50 V	0.3 mm 0.33 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tape & Reel (TR)	5000	$ 0.19

Description

General part information

SFV21R Series

21 Position FPC Connector Contacts, Bottom 0.020" (0.50mm) Surface Mount, Right Angle
