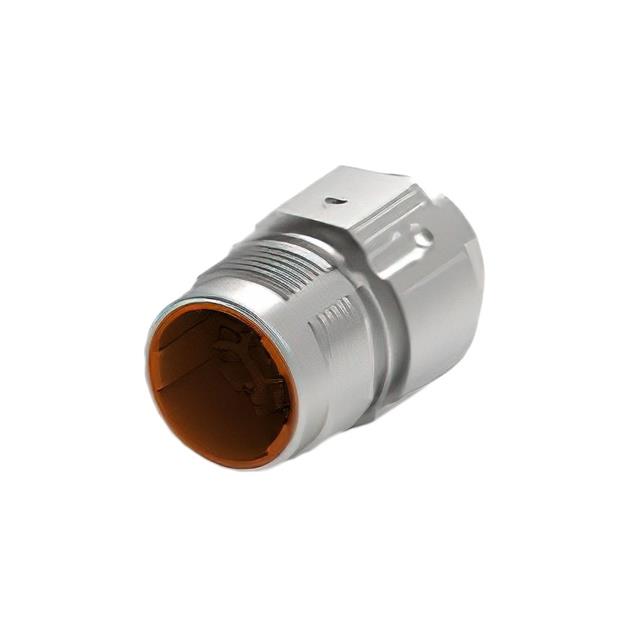

BEA088N00000122000

Active

TE Intercontec

CONN RCPT HSG MALE 6POS PNL MNT

Search across all available documentation for this part.

Active

TE Intercontec

CONN RCPT HSG MALE 6POS PNL MNT

Technical Specifications

Parameters and characteristics for this part

Specification	BEA088N00000122000

Connector Type	Receptacle Housing
Contact Shape	Circular
Fastening Type	Push-Twist
Housing Color	Silver
Includes	1 Connector, 1 O-Ring
Ingress Protection	IP66/IP67
Insert Material	Polyamide (PA66), Nylon 6/6
Material Flammability Rating	UL94 V-0
Note	Contacts Not Included
Number of Positions	6
Operating Temperature [Max]	130 °C
Operating Temperature [Min]	-20 C
Orientation	Keyed
Shell Finish	Nickel
Shell Material	Zinc Die Cast
Shell Size - Insert	M23-6
Shielding	Unshielded
Type	For Male Pins

Part	Shell Size - Insert	Includes	Connector Type	Insert Material	Fastening Type	Housing Color	Number of Positions	Shielding	Material Flammability Rating	Ingress Protection	Shell Finish	Shell Material	Note	Contact Shape	Orientation	Operating Temperature [Min]	Operating Temperature [Max]	Type
TE Intercontec BEA088N00000122000	M23-6	1 Connector 1 O-Ring	Receptacle Housing	Polyamide (PA66) Nylon 6/6	Push-Twist	Silver	6	Unshielded	UL94 V-0	IP66/IP67	Nickel	Zinc Die Cast	Contacts Not Included	Circular	Keyed	-20 C	130 °C	For Male Pins

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	40	$ 14.94

General part information

6 (5 Power + PE) Position Circular Connector Receptacle Housing Panel Mount

Technical documentation and resources

No documents available
