DCD-12PMDS-LC7001

Active

Amphenol LTW

CERES, LARGE SIZE, 20A+5A, 12 PI

Search across all available documentation for this part.

Active

Amphenol LTW

CERES, LARGE SIZE, 20A+5A, 12 PI

Technical Specifications

Parameters and characteristics for this part

Specification	DCD-12PMDS-LC7001

Color	Black
Connector Type	Receptacle, Male Pins
Contact Finish - Mating	Gold
Contact Material	Copper Alloy
Current Rating (Amps)	5 A, 20 A
Fastening Type	Bayonet Lock
Ingress Protection	IP67 - Dust Tight, Waterproof
Insert Material	Polyamide (PA), Nylon, Glass Filled
Mounting Feature	Bulkhead - Front Side Nut
Number of Positions [custom]	9
Number of Positions [custom]	3
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Orientation	Keyed
Primary Material	Plastic
Shell Material	Nylon, Glass Filled, Polyamide (PA)
Shell Size - Insert	D
Shielding	Unshielded
Voltage Rating	250 VDC

Part	Ingress Protection	Fastening Type	Shielding	Mounting Feature	Contact Material	Insert Material	Connector Type	Shell Size - Insert	Current Rating (Amps)	Operating Temperature [Min]	Operating Temperature [Max]	Orientation	Voltage Rating	Shell Material	Contact Finish - Mating	Color	Primary Material	Number of Positions [custom]	Number of Positions [custom]
Amphenol LTW DCD-12PMDS-LC7001	IP67 - Dust Tight Waterproof	Bayonet Lock	Unshielded	Bulkhead - Front Side Nut	Copper Alloy	Polyamide (PA) Nylon Glass Filled	Male Pins Receptacle	D	5 A 20 A	-40 °C	105 ░C	Keyed	250 VDC	Glass Filled Nylon Polyamide (PA)	Gold	Black	Plastic	9	3

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

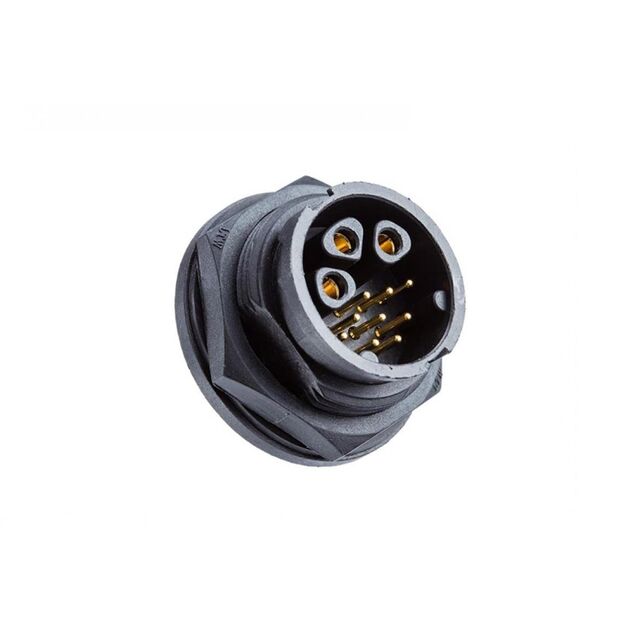

12 (9 + 3 Power) Position Circular Connector Receptacle, Male Pins Solder Cup
