MAP-60-30

Active

Amphenol NEXUS Technologies

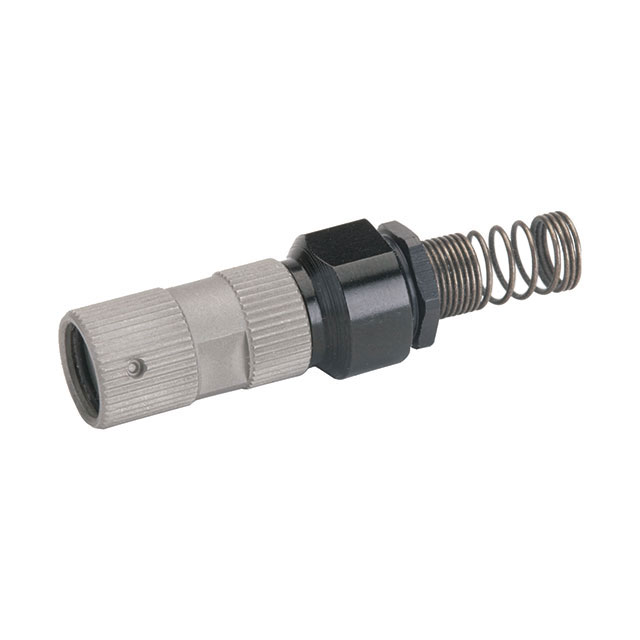

CONN PLUG FMALE 10P SOLDER CUP

Search across all available documentation for this part.

Active

Amphenol NEXUS Technologies

CONN PLUG FMALE 10P SOLDER CUP

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	MAP-60-30	MAP-60 Series

Applications	Communication Systems, Military, Audio, Video	Communication Systems, Military, Audio, Video
Cable Opening [custom]	6.35 mm	6.35 mm
Cable Opening [custom]	0.25 in	0.25 in
Color	Black, Silver	Black, Silver
Connector Type	Female Sockets, Plug	Female Sockets, Plug
Contact Finish - Mating	Gold	Gold
Contact Material	Brass	Brass
Current Rating (Amps)	0.5 A	0.5 A
Fastening Type	Bayonet Lock	Bayonet Lock
Features	-	Ground
Insert Material	Thermoplastic	Thermoplastic
Mounting Feature	-	Bulkhead - Front Side Nut
Mounting Type	Free Hanging (In-Line)	Free Hanging (In-Line), Through Hole, Panel Mount
Number of Positions	10	10
Operating Temperature [Max]	85 °C	85 °C
Operating Temperature [Min]	-55 °C	-55 °C
Orientation	Keyed	Keyed
Primary Material	Metal	Metal
Shell Finish	Passivated	Passivated
Shell Material	Stainless Steel	Stainless Steel
Shielding	Unshielded	Unshielded
Termination	-	Solder
Voltage Rating	60 VDC	60 VDC

CONN PLUG FMALE 10P SOLDER CUP

Part	Shielding	Connector Type	Insert Material	Operating Temperature [Max]	Operating Temperature [Min]	Cable Opening [custom]	Cable Opening [custom]	Mounting Type	Current Rating (Amps)	Number of Positions	Orientation	Primary Material	Applications	Voltage Rating	Shell Material	Fastening Type	Contact Material	Shell Finish	Color	Contact Finish - Mating	Mounting Feature	Termination	Features
Amphenol NEXUS Technologies MAP-60-30	Unshielded	Female Sockets, Plug	Thermoplastic	85 °C	-55 °C	6.35 mm	0.25 in	Free Hanging (In-Line)	0.5 A	10	Keyed	Metal	Audio, Communication Systems, Military, Video	60 VDC	Stainless Steel	Bayonet Lock	Brass	Passivated	Black, Silver	Gold
Amphenol NEXUS Technologies MAP-60-50	Unshielded	Female Sockets, Plug	Thermoplastic	85 °C	-55 °C			Free Hanging (In-Line)	0.5 A	10	Keyed	Metal	Audio, Communication Systems, Military, Video	60 VDC	Stainless Steel	Bayonet Lock	Brass	Passivated	Black, Silver	Gold
Amphenol NEXUS Technologies MAP-60-00	Unshielded	Female Sockets, Plug	Thermoplastic	85 °C	-55 °C				0.5 A	10	Keyed	Metal	Audio, Communication Systems, Military, Video	60 VDC	Stainless Steel	Bayonet Lock	Brass	Passivated	Silver	Gold	Bulkhead - Front Side Nut
Amphenol NEXUS Technologies MAP-60-00B	Unshielded	Female Sockets, Plug	Thermoplastic	85 °C	-55 °C			Panel Mount, Through Hole	0.5 A	10	Keyed	Metal	Audio, Communication Systems, Military, Video	60 VDC	Stainless Steel	Bayonet Lock	Brass	Passivated	Silver	Gold	Bulkhead - Front Side Nut	Solder	Ground
