1092D6-28V

Active

Visual Communications Company - VCC

PMI RND .5" LED 28V WIRE SEMI-DO

Search across all available documentation for this part.

Active

Visual Communications Company - VCC

PMI RND .5" LED 28V WIRE SEMI-DO

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

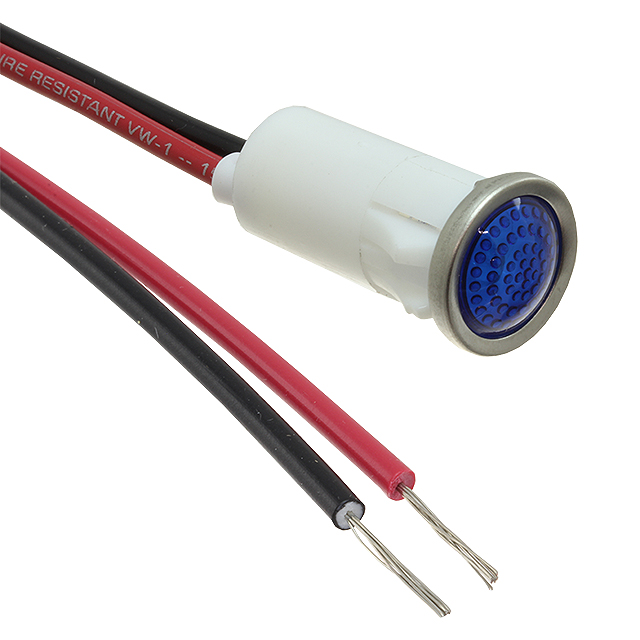

LED Panel Indicator Blue Clear 28V 25mA Wire Leads - 4.6" (116.84mm)

Technical documentation and resources

Parameters and characteristics commom to parts in this series

Specification	1092D6-28V	1092D Series

Current	25 mA	25 mA
Lamp Color	Blue	Amber, Red, Clear, Blue
Lens Color	Blue	Amber, Red, Colorless, Blue
Lens Size	-	T-1 3/4
Lens Size	-	5 mm
Lens Style	Round with Domed Top	Round with Domed Top, Round with Convex Top
Lens Transparency	Clear	Clear, Diffused
Millicandela Rating	3200 mcd	3200 - 13000 mcd
Panel Cutout Dimensions	12.7 mm	12.7 mm
Panel Cutout Dimensions	0.5 in	0.5 in
Panel Cutout Shape	Round	Round
Ratings	DC	AC, DC, AC/DC
Termination Style	4.6 in	4.6 in
Termination Style	116.84 mm	116.84 mm
Termination Style	Wire Leads	Wire Leads, Wire Leads - 4.8" (121.92mm)
Type	LED	LED
Voltage	28 V	12 - 250 V
Wavelength - Peak	-	468 nm

INDICATOR PMI AMBER .5" SEMI DOM

Part	Type	Panel Cutout Dimensions	Panel Cutout Dimensions	Ratings	Lamp Color	Termination Style	Termination Style	Termination Style	Millicandela Rating	Lens Style	Lens Color	Current	Panel Cutout Shape	Voltage	Lens Transparency	Lens Size	Lens Size	Wavelength - Peak
Visual Communications Company - VCC 1092D3-250VAC	LED	12.7 mm	0.5 in	AC	Amber	4.6 in	116.84 mm	Wire Leads	13000 mcd	Round with Domed Top	Amber	25 mA	Round	250 V	Clear
Visual Communications Company - VCC 1092D1-12V	LED	12.7 mm	0.5 in	DC	Red	4.6 in	116.84 mm	Wire Leads	13000 mcd	Round with Domed Top	Red	25 mA	Round	12 V	Diffused
Visual Communications Company - VCC 1092D3-125VAC	LED	12.7 mm	0.5 in	AC	Amber	4.6 in	116.84 mm	Wire Leads	13000 mcd	Round with Domed Top	Amber	25 mA	Round	125 V	Diffused
Visual Communications Company - VCC 1092D2-12V	LED	12.7 mm	0.5 in	AC/DC	Clear			Wire Leads - 4.8" (121.92mm)	7000 mcd	Round with Convex Top	Colorless	25 mA	Round	12 V	Clear	T-1 3/4	5 mm	468 nm
Visual Communications Company - VCC 1092D2-28V	LED	12.7 mm	0.5 in	AC/DC	Clear			Wire Leads - 4.8" (121.92mm)	7000 mcd	Round with Convex Top	Colorless	25 mA	Round	28 V	Clear	T-1 3/4	5 mm	468 nm
Visual Communications Company - VCC 1092D2-125VAC	LED	12.7 mm	0.5 in	AC	Clear			Wire Leads - 4.8" (121.92mm)	7000 mcd	Round with Convex Top	Colorless	25 mA	Round	125 V	Clear	T-1 3/4	5 mm	468 nm
Visual Communications Company - VCC 1092D6-28V	LED	12.7 mm	0.5 in	DC	Blue	4.6 in	116.84 mm	Wire Leads	3200 mcd	Round with Domed Top	Blue	25 mA	Round	28 V	Clear
