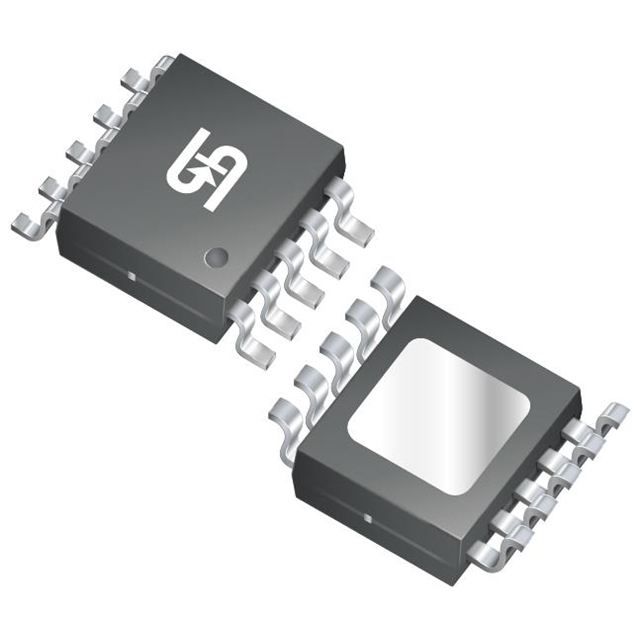

TS19503CB10H RBG
ActiveTaiwan Semiconductor Corporation
IC LED DRVR RGLTR PWM 2A 10MSOP
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | TS19503CB10H RBG |
|---|---|
| Applications | Lighting |
| Current - Output / Channel [custom] | 2 A |
| Dimming | Analog, PWM |
| Frequency | 1 MHz |
| Grade | Automotive |
| Internal Switch(s) | True |
| Mounting Type | Surface Mount |
| Number of Outputs | 1 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | 3 Lead, 0.118 in |
| Package / Case | Exposed Pad, 10-TFSOP, 10-MSOP |
| Qualification | AEC-Q100 |
| Supplier Device Package | 10-MSOP-EP |
| Topology | Step-Down (Buck) |
| Type | DC DC Regulator |
| Voltage - Supply (Max) [Max] | 75 V |
| Voltage - Supply (Min) [Min] | 4.5 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 1.60 | |
| 10 | $ 1.43 | |||
| 25 | $ 1.36 | |||
| 100 | $ 1.12 | |||
| 250 | $ 1.04 | |||
| 500 | $ 0.92 | |||
| 1000 | $ 0.73 | |||
| 2500 | $ 0.68 | |||
| Digi-Reel® | 1 | $ 1.60 | ||
| 10 | $ 1.43 | |||
| 25 | $ 1.36 | |||
| 100 | $ 1.12 | |||
| 250 | $ 1.04 | |||
| 500 | $ 0.92 | |||
| 1000 | $ 0.73 | |||
| 2500 | $ 0.68 | |||
| Tape & Reel (TR) | 5000 | $ 0.64 | ||
| 10000 | $ 0.62 | |||
Description
General part information
TS19503 Series
LED Driver IC 1 Output DC DC Regulator Step-Down (Buck) Analog, PWM Dimming 2A 10-MSOP-EP
