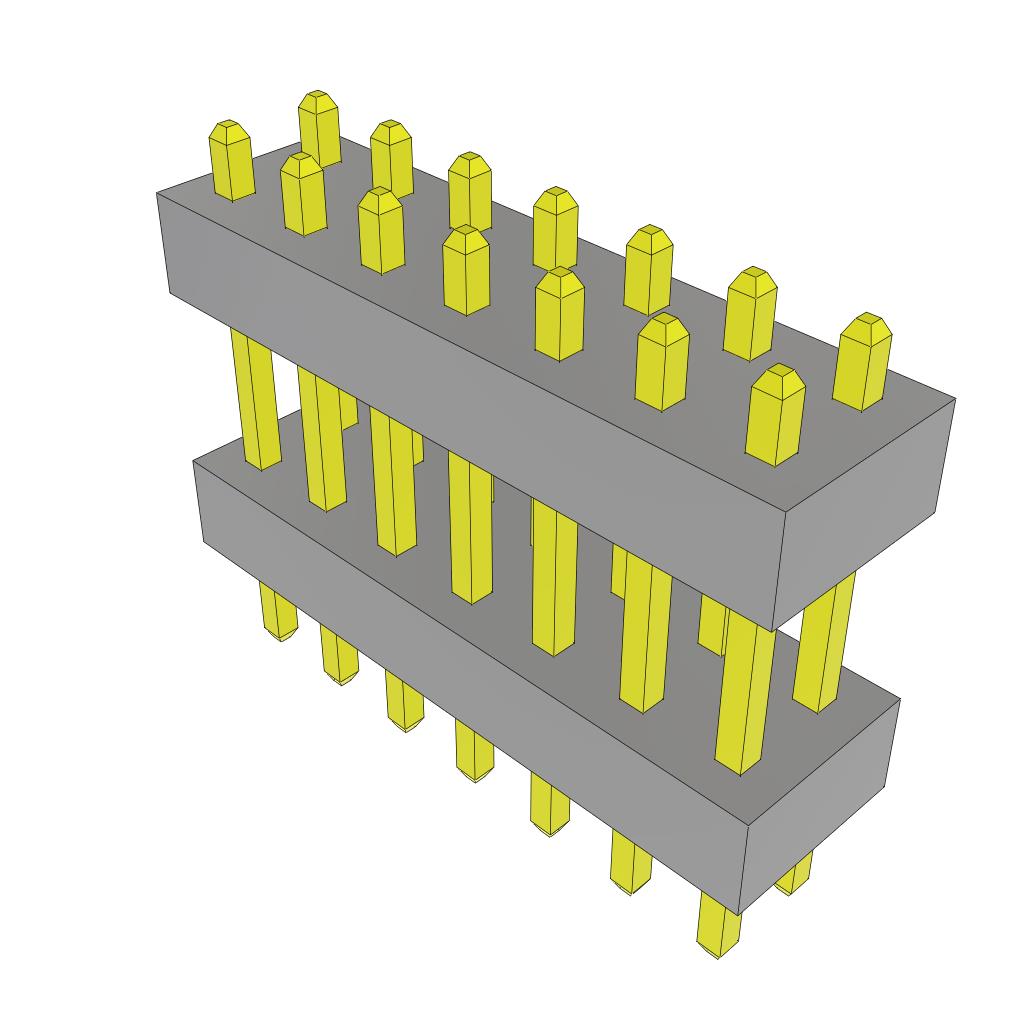

TW-07-09-L-D-231-100

Active

Samtec Inc.

CONN BRD STACK 2.00 14POS

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet TW Datasheet +1

TW-07-09-L-D-231-100

Active

Samtec Inc.

CONN BRD STACK 2.00 14POS

Deep-Dive with AI

DocumentsDatasheet TW Datasheet +1

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	TW-07-09-L-D-231-100

Color	Black
Contact Finish - Post (Mating)	Gold
Contact Finish Thickness - Post (Mating)	0.25 Ám
Contact Finish Thickness - Post (Mating)	10 Áin
Length - Overall Pin [x]	11.582 mm
Length - Overall Pin [x]	0.456 in
Length - Post (Mating) [x]	0.125 in
Length - Post (Mating) [x]	3.175 mm
Length - Stack Height [x]	5.867 mm
Length - Stack Height [x]	0.231 in
Length - Tail [x]	0.1 "
Length - Tail [x]	2.54 mm
Mounting Type	Through Hole
Number of Positions	14
Number of Rows	2
Pitch [x]	0.079 in
Pitch [x]	2 mm
Row Spacing	2 mm
Row Spacing	0.079 in
Termination	Solder

TW-07-09 Series

Part	Mounting Type	Length - Post (Mating) [x]	Length - Post (Mating) [x]	Contact Finish - Post (Mating)	Color	Length - Overall Pin [x]	Length - Overall Pin [x]	Length - Tail [x]	Length - Tail [x]	Contact Finish Thickness - Post (Mating)	Contact Finish Thickness - Post (Mating)	Pitch [x]	Pitch [x]	Number of Rows	Number of Positions	Length - Stack Height [z]	Length - Stack Height [z]	Termination	Length - Stack Height [x]	Length - Stack Height [x]	Row Spacing	Row Spacing	Length - Overall Pin	Length - Overall Pin
Samtec Inc. TW-07-09-S-S-150-090	Through Hole	5.486 mm	0.216 in	Gold	Black	11.582 mm	0.456 in	2.286 mm	0.09 in	30 µin	0.76 µm	0.079 in	2 mm	1	7	0.15 in	3.81 mm	Solder
Samtec Inc. TW-07-09-L-D-197-118	Through Hole			Gold	Black	11.582 mm	0.456 in			10 Áin	0.25 Ám	0.079 in	2 mm	2	14			Solder	0.197 in	5.004 mm	2 mm	0.079 in
Samtec Inc. TW-07-09-S-T-250-090	Through Hole	2.946 mm	0.116 in	Gold	Black	11.582 mm	0.456 in	2.286 mm	0.09 in	30 µin	0.76 µm	0.079 in	2 mm	3	21			Solder	0.25 in	6.35 mm	2 mm	0.079 in
Samtec Inc. TW-07-09-S-S-250-090	Through Hole	2.946 mm	0.116 in	Gold	Black	11.582 mm	0.456 in	2.286 mm	0.09 in	30 µin	0.76 µm	0.079 in	2 mm	1	7			Solder	0.25 in	6.35 mm
Samtec Inc. TW-07-09-L-D-210-090
Samtec Inc. TW-07-09-S-T-187-090	Through Hole	4.547 mm	0.179 in	Gold	Black	11.582 mm	0.456 in	2.286 mm	0.09 in	30 µin	0.76 µm	0.079 in	2 mm	3	21	0.187 in	4.75 mm	Solder			2 mm	0.079 in
Samtec Inc. TW-07-09-F-D-200-SM-P-TR	Surface Mount	4.775 mm	0.188 in	Gold	Black					3 Áin	0.076 Ám	0.079 in	2 mm	2	14			Solder			2 mm	0.079 in	0.388 in	9.855 mm
Samtec Inc. TW-07-09-G-D-225-100
Samtec Inc. TW-07-09-T-S-250-105	Through Hole	2.565 mm	0.101 in	Tin	Black	11.582 mm	0.456 in	2.667 mm	0.105 in			0.079 in	2 mm	1	7			Solder	0.25 in	6.35 mm
Samtec Inc. TW-07-09-L-D-231-100	Through Hole	3.175 mm	0.125 in	Gold	Black	11.582 mm	0.456 in	2.54 mm	0.1 "	10 Áin	0.25 Ám	0.079 in	2 mm	2	14			Solder	0.231 in	5.867 mm	2 mm	0.079 in

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 2.77
