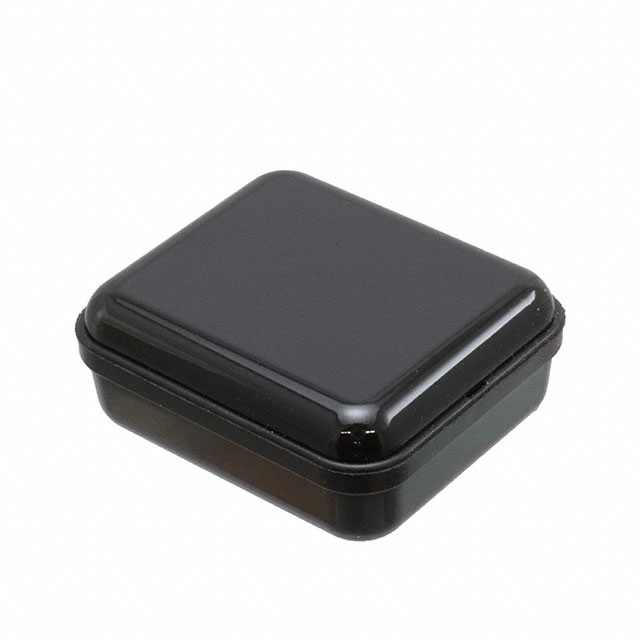

CX26ABKABK

Active

Serpac

ENCLOSURE PLAS 1.68"L X 1.45"W

Search across all available documentation for this part.

Active

Serpac

ENCLOSURE PLAS 1.68"L X 1.45"W

Technical Specifications

Parameters and characteristics for this part

Specification	CX26ABKABK

Area (L x W)	2.43 in²
Area (L x W)	15.7 cm²
Color	Black
Container Type	Enclosure
Design	Cover Included, Hand Held
Height [z]	0.71 in
Height [z]	18.03 mm
Material	Plastic, Polycarbonate
Material Flammability Rating	UL94 V-2
Ratings	NEMA 4X, IP67, 13, 12
Size / Dimension [x]	42.67 mm
Size / Dimension [x]	1.68 "
Size / Dimension [y]	1.45 in
Size / Dimension [y]	36.83 mm
Thickness	2.03 mm
Thickness	0.08 "

Part	Thickness	Thickness	Area (L x W)	Area (L x W)	Material Flammability Rating	Height [z]	Height [z]	Material	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Container Type	Ratings	Design	Color
Serpac CX26ABKAOR	2.03 mm	0.08 "	15.7 cm²	2.43 in²	UL94 V-2	0.71 in	18.03 mm	Plastic Polycarbonate	1.45 in	42.67 mm	1.68 "	36.83 mm	Enclosure	12 13 IP67 NEMA 4X	Cover Included Hand Held	Black Orange
Serpac CX26ABKANG	2.03 mm	0.08 "	15.7 cm²	2.43 in²	UL94 V-2	0.71 in	18.03 mm	Plastic Polycarbonate	1.45 in	42.67 mm	1.68 "	36.83 mm	Enclosure	12 13 IP67 NEMA 4X	Cover Included Hand Held	Black Neon Green
Serpac CX26ABKANO	2.03 mm	0.08 "	15.7 cm²	2.43 in²	UL94 V-2	0.71 in	18.03 mm	Plastic Polycarbonate	1.45 in	42.67 mm	1.68 "	36.83 mm	Enclosure	12 13 IP67 NEMA 4X	Cover Included Hand Held	Black Neon Orange
Serpac CX26ABKABK	2.03 mm	0.08 "	15.7 cm²	2.43 in²	UL94 V-2	0.71 in	18.03 mm	Plastic Polycarbonate	1.45 in	42.67 mm	1.68 "	36.83 mm	Enclosure	12 13 IP67 NEMA 4X	Cover Included Hand Held	Black
Serpac CX26ABKABKYL	2.03 mm	0.08 "	15.7 cm²	2.43 in²	UL94 V-2	0.71 in	18.03 mm	Plastic Polycarbonate	1.45 in	42.67 mm	1.68 "	36.83 mm	Enclosure	12 13 IP67 NEMA 4X	Cover Included Hand Held

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 14.70

General part information

Enclosure Plastic, Polycarbonate Black Cover Included, Hand Held 1.680" L x 1.450" W (42.67mm x 36.83mm) X 0.710" (18.03mm)
