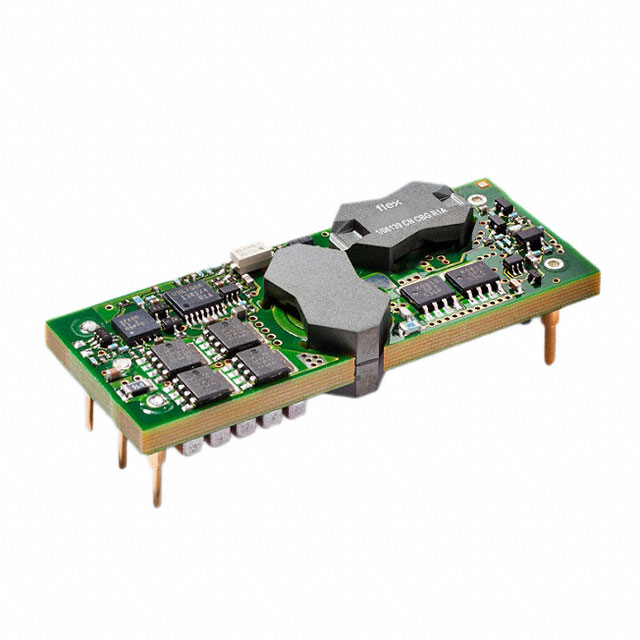

PKB4204PI

Active

Flex Power Modules

DC DC CONVERTER 12V 240W

Search across all available documentation for this part.

Active

Flex Power Modules

DC DC CONVERTER 12V 240W

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	PKB4204PI	PKB420 Series

Applications	ITE (Commercial)	ITE (Commercial)
Approval Agency	CB, UL, IEC, TUV, CSA	CB, UL, IEC, TUV, CSA
Control Features	Active Low, Enable	Active Low, Enable
Current - Output (Max) [Max]	20 A	20 A
Efficiency	95.5 %	95.5 %
Features	Remote On/Off, Adjustable Output	Remote On/Off, Adjustable Output, Baseplate
Mounting Type	Through Hole	Through Hole
Number of Outputs	1	1
Operating Temperature [Max]	90 °C	90 °C
Operating Temperature [Min]	-30 °C	-30 °C
Package / Case	Eighth Brick	Eighth Brick
Power (Watts)	240 W	240 W
Size / Dimension [x]	58.4 mm	58.4 mm
Size / Dimension [x]	2.3 in	2.3 in
Size / Dimension [y]	0.89 in	0.89 in
Size / Dimension [y]	22.7 mm	22.7 mm
Size / Dimension [z]	0.4 "	0.4 - 0.5 "
Size / Dimension [z]	10.1 mm	10.1 - 12.7 mm
Standard Number	62368-1	62368-1
Supplier Device Package	Eighth Brick	Eighth Brick
Type	Isolated Module	Isolated Module, Intermediate Bus Converter
Voltage - Input (Max) [Max]	75 V	75 V
Voltage - Input (Min) [Min]	40 V	40 V
Voltage - Isolation	1.5 kV	1.5 kV
Voltage - Output 1	12 V	12 V

DC DC CONVERTER 12V 240W

Part	Current - Output (Max) [Max]	Voltage - Input (Max) [Max]	Standard Number	Package / Case	Operating Temperature [Min]	Operating Temperature [Max]	Voltage - Input (Min) [Min]	Approval Agency	Applications	Number of Outputs	Type	Features	Mounting Type	Supplier Device Package	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Voltage - Isolation	Efficiency	Voltage - Output 1	Power (Watts)	Control Features
Flex Power Modules PKB4204PI	20 A	75 V	62368-1	Eighth Brick	-30 °C	90 °C	40 V	CB, CSA, IEC, TUV, UL	ITE (Commercial)	1	Isolated Module	Adjustable Output, Remote On/Off	Through Hole	Eighth Brick	0.4 "	0.89 in	58.4 mm	2.3 in	10.1 mm	22.7 mm	1.5 kV	95.5 %	12 V	240 W	Active Low, Enable
Flex Power Modules PKB4204PIHS	20 A	75 V	62368-1	Eighth Brick	-30 °C	90 °C	40 V	CB, CSA, IEC, TUV, UL	ITE (Commercial)	1	Intermediate Bus Converter	Adjustable Output, Baseplate, Remote On/Off	Through Hole	Eighth Brick	0.5 in	0.89 in	58.4 mm	2.3 in	12.7 mm	22.7 mm	1.5 kV	95.5 %	12 V	240 W	Active Low, Enable

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Isolated Module DC DC Converter 1 Output 12V 20A 40V - 75V Input
