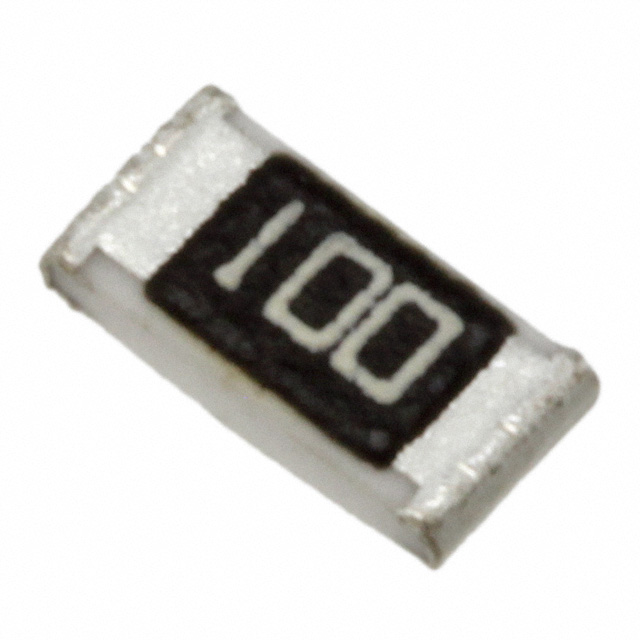

FCR2010J27R
ActiveTE Connectivity Passive Product
RES SMD 27 OHM 5% 1/2W 2010
Deep-Dive with AI
Search across all available documentation for this part.
FCR2010J27R
ActiveTE Connectivity Passive Product
RES SMD 27 OHM 5% 1/2W 2010
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | FCR2010J27R |
|---|---|
| Composition | Thin Film |
| Features | Fusible, Flame Proof, Safety |
| Height - Seated (Max) [Max] | 0.7 mm |
| Height - Seated (Max) [Max] | 0.028 in |
| Number of Terminations | 2 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -55 °C |
| Package / Case | 2010 (5025 Metric) |
| Power (Watts) | 0.5 W |
| Power (Watts) | 0.5 W |
| Resistance | 27 Ohms |
| Size / Dimension [x] | 0.197 in |
| Size / Dimension [x] | 5 mm |
| Size / Dimension [y] | 0.098 in |
| Size / Dimension [y] | 2.5 mm |
| Supplier Device Package | 2010 |
| Temperature Coefficient | 500 ppm/°C |
| Tolerance | 5 % |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
FCR2010 Series
27 Ohms ±5% 0.5W, 1/2W Chip Resistor 2010 (5025 Metric) Flame Proof, Fusible, Safety Thin Film
Documents
Technical documentation and resources
No documents available
