GSF1.0002.41

Active

SCHURTER Inc.

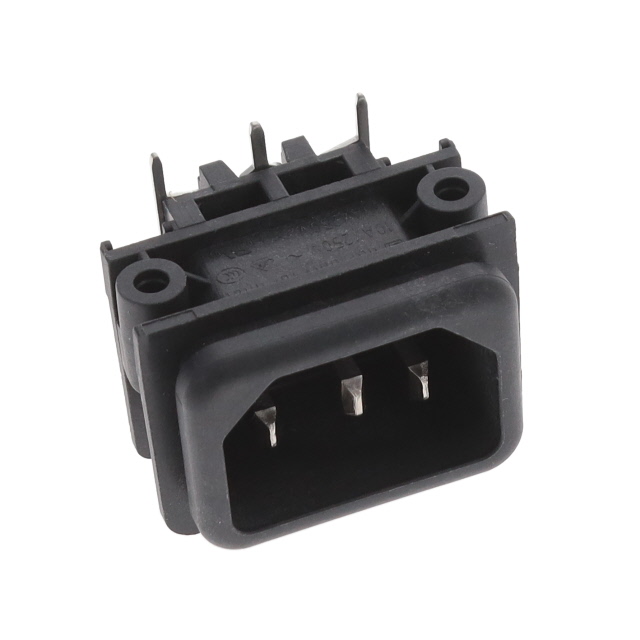

POWER ENTRY MODULE UNFILTERED M 3 POS 250VAC 10A RA 1 PORT

Search across all available documentation for this part.

Active

SCHURTER Inc.

POWER ENTRY MODULE UNFILTERED M 3 POS 250VAC 10A RA 1 PORT

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	GSF1.0002.41	GSF1.0002 Series

Accomodates a Fuse	False	False
Approval Agency	CCC, UL, CSA, ENEC	CCC, UL, CSA, ENEC
Connector Style	IEC 320-C14	IEC 320-C14
Connector Type	Male Blades, Receptacle	Male Blades, Receptacle
Current Rating - Appliance Inlet	10 A	10 A
Features	Mounting Hardware	Mounting Hardware
Filter Type	Unfiltered - Commercial	Unfiltered - Commercial
Ingress Protection	IP40	IP40
Material Flammability Rating	UL94 V-0	UL94 V-0
Mounting Type	Panel Mount, Flange, Through Hole, Right Angle	Panel Mount, Flange, Through Hole, Right Angle
Panel Cutout Dimensions	-	30.3 mm
Panel Cutout Dimensions	-	22.3 mm
Panel Thickness	2 mm	2 - 6 mm
Panel Thickness	0.079 in	0.079 - 0.236 in
Panel Thickness	-	2.5 mm
Panel Thickness	-	0.098 in
Panel Thickness	-	0.059 in
Panel Thickness	-	1.5 mm
Termination	Solder	Solder
Voltage Rating - Appliance Inlet	250 VAC	250 VAC

POWER ENTRY MODULE UNFILTERED M 3 POS 250VAC 10A RA 1 PORT

Part	Ingress Protection	Mounting Type	Termination	Connector Type	Voltage Rating - Appliance Inlet	Approval Agency	Material Flammability Rating	Panel Thickness [x]	Panel Thickness [x]	Filter Type	Connector Style	Current Rating - Appliance Inlet	Features	Panel Thickness	Panel Thickness	Panel Cutout Dimensions [x]	Panel Cutout Dimensions [y]	Panel Thickness [custom]	Panel Thickness [custom]
SCHURTER Inc. GSF1.0002.51	IP40	Panel Mount, Flange, Through Hole, Right Angle	Solder	Male Blades, Receptacle	250 VAC	CCC, CSA, ENEC, UL	UL94 V-0	2.5 mm	0.098 in	Unfiltered - Commercial	IEC 320-C14	10 A	Mounting Hardware
SCHURTER Inc. GSF1.0002.01	IP40	Panel Mount, Flange, Through Hole, Right Angle	Solder	Male Blades, Receptacle	250 VAC	CCC, CSA, ENEC, UL	UL94 V-0			Unfiltered - Commercial	IEC 320-C14	10 A	Mounting Hardware	0.236 in	6 mm	30.3 mm	22.3 mm
SCHURTER Inc. GSF1.0002.41	IP40	Panel Mount, Flange, Through Hole, Right Angle	Solder	Male Blades, Receptacle	250 VAC	CCC, CSA, ENEC, UL	UL94 V-0			Unfiltered - Commercial	IEC 320-C14	10 A	Mounting Hardware	0.079 in	2 mm
SCHURTER Inc. GSF1.0002.31	IP40	Panel Mount, Flange, Through Hole, Right Angle	Solder	Male Blades, Receptacle	250 VAC	CCC, CSA, ENEC, UL	UL94 V-0			Unfiltered - Commercial	IEC 320-C14	10 A	Mounting Hardware					0.059 in	1.5 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Power Entry Connector Receptacle, Male Blades IEC 320-C14 Panel Mount, Flange; Through Hole, Right Angle
