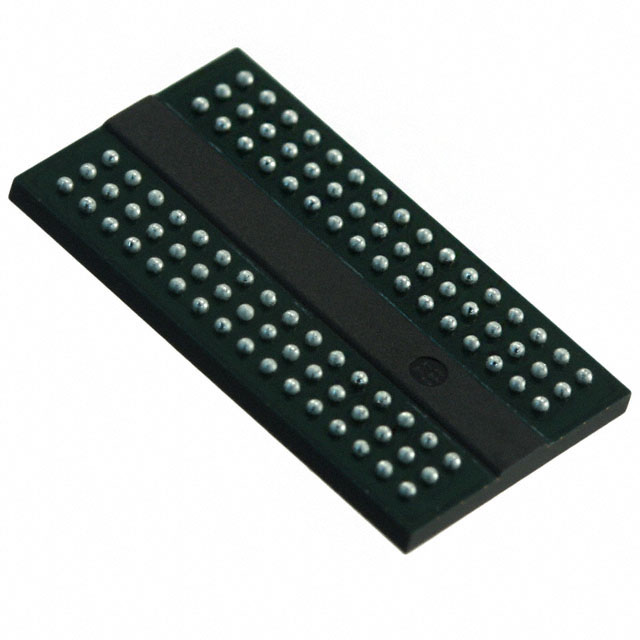

MT40A2G16TBB-062E:F TR
ObsoleteMicron Technology Inc.
IC DRAM 32GBIT PARALLEL 96FBGA
MT40A2G16TBB-062E:F TR
ObsoleteMicron Technology Inc.
IC DRAM 32GBIT PARALLEL 96FBGA
Description
General part information
MT40A2G16 Series
SDRAM - DDR4 Memory IC 32Gbit Parallel 1.6 GHz 13.75 ns 96-FBGA (7.5x13)
Technical Specifications
Parameters and characteristics for this part
| Specification | MT40A2G16TBB-062E:F TR |
|---|---|
| Access Time | 13.75 ns |
| Clock Frequency | 1.6 GHz |
| Memory Depth | 2 G |
| Memory Format | DRAM |
| Memory Interface (Type) | Parallel |
| Memory Size | 4 GByte |
| Memory Type | Volatile |
| Memory Width | 16 bit |
| Mounting Type | Surface Mount |
| Operating Temperature (Max) | 95 °C |
| Operating Temperature (Min) | 0 °C |
| Package / Case | 96-TFBGA |
| Package Length | 7.5 mm |
| Package Name | 96-FBGA |
| Package Width | 13 mm |
| Technology | SDRAM - DDR4 |
| Voltage - Supply (Maximum) | 1.26 V |
| Voltage - Supply (Minimum) | 1.14 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
